Electrical Wiring - Engine And Dash (Main Harness) (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Electrical Wiring - Engine And Dash (Main Harness) (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR000060 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR088994 MAIN BODY HARNESS Enquire To Order
LR093702 HARNESS - MAIN Enquire To Order
LR093704 HARNESS - MAIN Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138624 PANEL - FUSE JUNCTION Enquire To Order
Photo Part No Description Price (each) Stock
LR078500 BRACKET - FUSE BOX Enquire To Order
View All

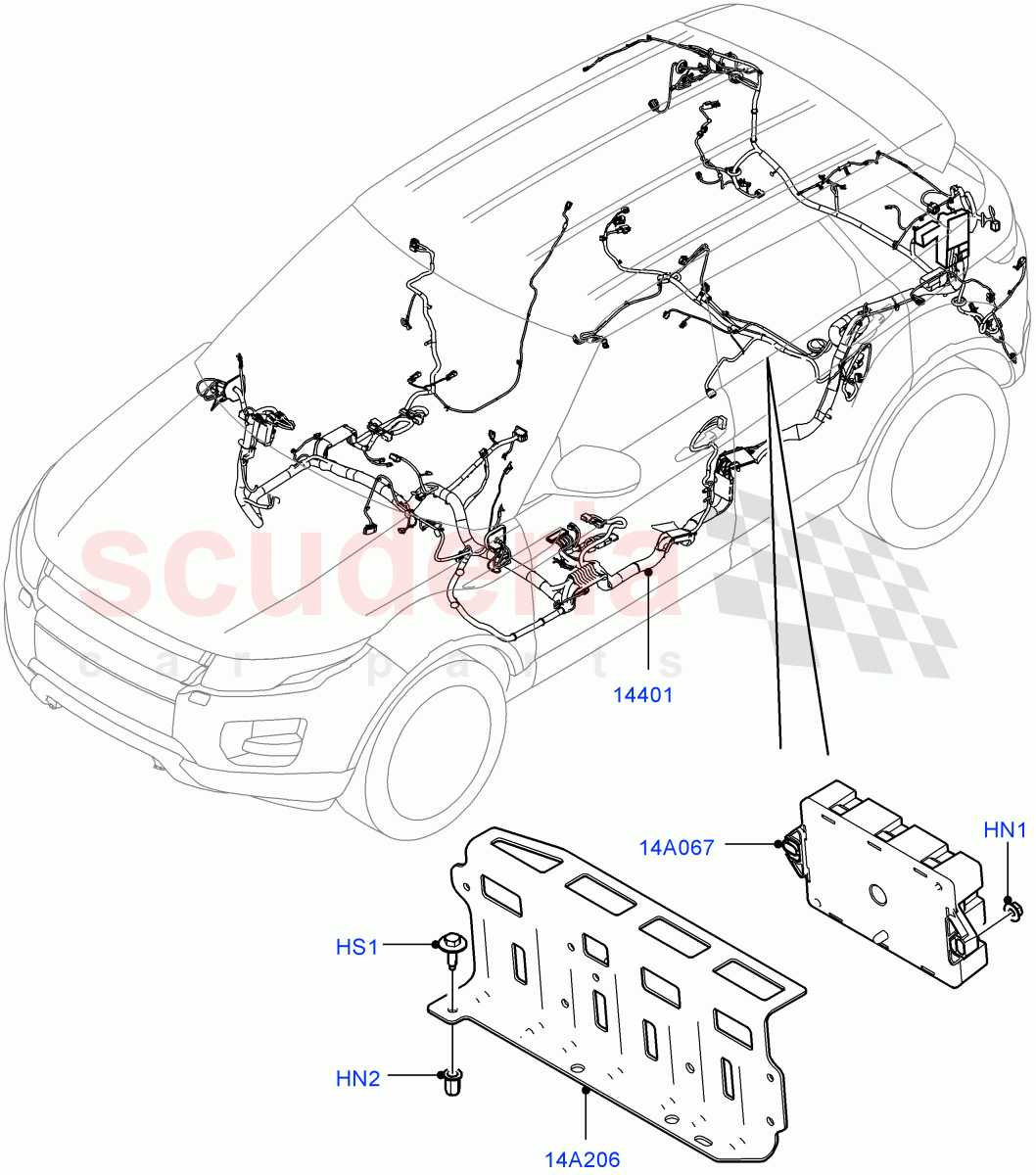

Electrical Wiring - Engine And Dash (Main Harness) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EG000001 		- 2 Enquire
HN2 LR000060
NUT - SPECIAL
M6, Plastic Nut / From: EG000001 		- 1 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: EG000001 		- 3 Enquire
14A067 LR138624
PANEL - FUSE JUNCTION
From: EG000001 		- 1 Enquire
14A206 LR078500
BRACKET - FUSE BOX
For Fusebox / From: EG000001 		- 1 Enquire
14401 LR088994
MAIN BODY HARNESS
Requires VIN To Order / KSK harness / From: GG134738 		- 1 Enquire
14401 LR093702
HARNESS - MAIN
Hi Line Audio System - 600 W, Less Adaptive Damping, Surround Camera System / From: EG000001 / To: GG134737 		- 1 Enquire
14401 LR093704
HARNESS - MAIN
Hi Line Audio System - 600 W, Magnetic Damping System, Surround Camera System / From: EG000001 / To: GG134737 		- 1 Enquire
14401 LR093707
HARNESS - MAIN
Hi Line Audio System - 600 W, Less Camera System, Magnetic Damping System / From: EG000001 / To: GG134737 		- 1 Enquire
14401 LR093708
HARNESS - MAIN
Hi Line Audio System - 600 W, Less Adaptive Damping, Rear View Camera-Fixed / From: EG000001 / To: GG134737 		- 1 Enquire
