Windscreen Washer ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Windscreen Washer ((V) FROMAA000001)

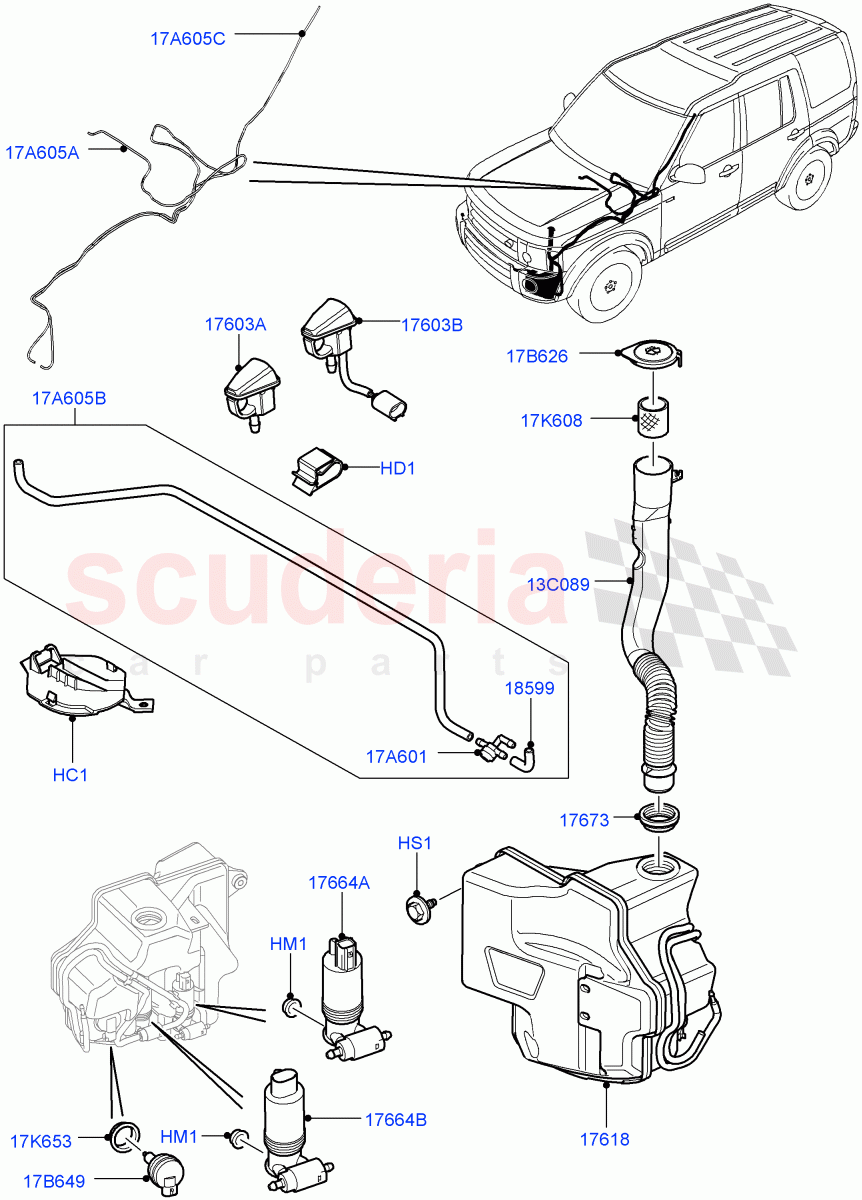

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DNR500050	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YYE000030	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU4506	GROMMET - WINDSHIELD WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP000221	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013953	RESERVOIR - WINDSHIELD WASHER	Enquire	To Order
	LR013954	RESERVOIR - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DML10001	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DNG10001	ELBOW - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013955	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018833	JET - WINDSHIELD WASHER	Enquire	To Order
	LR049290	JET - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018834	JET - WINDSHIELD WASHER	Enquire	To Order
	LR048615	JET - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013951	MOTOR AND PUMP - FRONT/REAR WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013950	MOTOR AND PUMP - HEADLAMP WASHER (NH)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DNG000010	CONNECTOR - WASHER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002266	CAP - FILLER	Enquire	To Order
	LR002266	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DMI500010	SENSOR - WASHER FLUID LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DMS500011	FILTER - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DMJ500020	GROMMET - WATER RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024751	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DNH000133	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024752	HOSE - WINDSHIELD WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	DNR500050	CLIP - RETAINING	DNR500050 CLIP - RETAINING Retains Washer Hose / From: AA000001	-	1	Enquire
HD1	YYE000030	CLAMP	YYE000030 CLAMP Retains Washer Hose / From: AA000001	-	8	Enquire
HM1	AFU4506	GROMMET - WINDSHIELD WASHER PUMP	AFU4506 GROMMET - WINDSHIELD WASHER PUMP Grommet, To Washer Bottle, Washer Pump / From: AA000001	-	1	Enquire
HS1	PYP000221	SCREW AND WASHER	PYP000221 SCREW AND WASHER M8 X 25MM / From: AA000001	-	1	Enquire
13C089	LR013955	HOSE - WINDSHIELD WASHER	LR013955 HOSE - WINDSHIELD WASHER Filler Neck / From: AA000001	-	1	Enquire
17A601	DNG000010	CONNECTOR - WASHER HOSE	DNG000010 CONNECTOR - WASHER HOSE From: AA000001	-	1	Enquire
17A605A	LR024751	HOSE - WINDSHIELD WASHER	LR024751 HOSE - WINDSHIELD WASHER From: AA000001	-	1	Enquire
17A605B	DNH000133	HOSE - WINDSHIELD WASHER	DNH000133 HOSE - WINDSHIELD WASHER Tube Assembly / From: AA000001	-	1	Enquire
17A605C	LR024752	HOSE - WINDSHIELD WASHER	LR024752 HOSE - WINDSHIELD WASHER From: AA000001	-	1	Enquire
17B626	LR002266	CAP - FILLER	LR002266 CAP - FILLER From: AA000001 / To: AA515849	-	1	Enquire
17B626	LR002266	CAP - FILLER	LR002266 CAP - FILLER From: AA515850	-	1	Enquire
17B649	DMI500010	SENSOR - WASHER FLUID LEVEL	DMI500010 SENSOR - WASHER FLUID LEVEL Low Level / From: AA000001	-	1	Enquire
17K608	DMS500011	FILTER - WATER	DMS500011 FILTER - WATER Filler Neck / From: AA000001	-	1	Enquire
17K653	DMJ500020	GROMMET - WATER RESERVOIR	DMJ500020 GROMMET - WATER RESERVOIR With Low Level Sensor / From: AA000001	-	1	Enquire
17603A	LR018833	JET - WINDSHIELD WASHER	LR018833 JET - WINDSHIELD WASHER Less Heated Washer Jet / Twin / From: AA000001 / To: DA663015	-	2	Enquire
17603A	LR049290	JET - WINDSHIELD WASHER	LR049290 JET - WINDSHIELD WASHER Less Heated Washer Jet / From: DA663016	-	2	Enquire
17603B	LR018834	JET - WINDSHIELD WASHER	LR018834 JET - WINDSHIELD WASHER With Heated Washer Jet / Twin / From: AA000001 / To: DA660951	-	2	Enquire
17603B	LR048615	JET - WINDSHIELD WASHER	LR048615 JET - WINDSHIELD WASHER With Heated Washer Jet / Twin / From: DA660952	-	2	Enquire
17618	LR013953	RESERVOIR - WINDSHIELD WASHER	LR013953 RESERVOIR - WINDSHIELD WASHER With Headlamp Power Wash / From: AA000001	-	1	Enquire
17618	LR013954	RESERVOIR - WINDSHIELD WASHER	LR013954 RESERVOIR - WINDSHIELD WASHER Less Headlamp Washer / From: AA000001	-	1	Enquire
17664A	LR013951	MOTOR AND PUMP - FRONT/REAR WASHER	LR013951 MOTOR AND PUMP - FRONT/REAR WASHER Windscreen / From: AA000001	-	1	Enquire
17664B	LR013950	MOTOR AND PUMP - HEADLAMP WASHER (NH)	LR013950 MOTOR AND PUMP - HEADLAMP WASHER (NH) With Headlamp Power Wash / Headlamp / From: AA000001	-	1	Enquire
17673	DML10001	Grommet	DML10001 Grommet Filler Neck / From: AA000001	-	1	Enquire
18599	DNG10001	ELBOW - RUBBER	DNG10001 ELBOW - RUBBER From: AA000001	-	2	Enquire
