Front Door Glass & Window Controls ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Front Door Glass & Window Controls ((V) FROMAA000001)

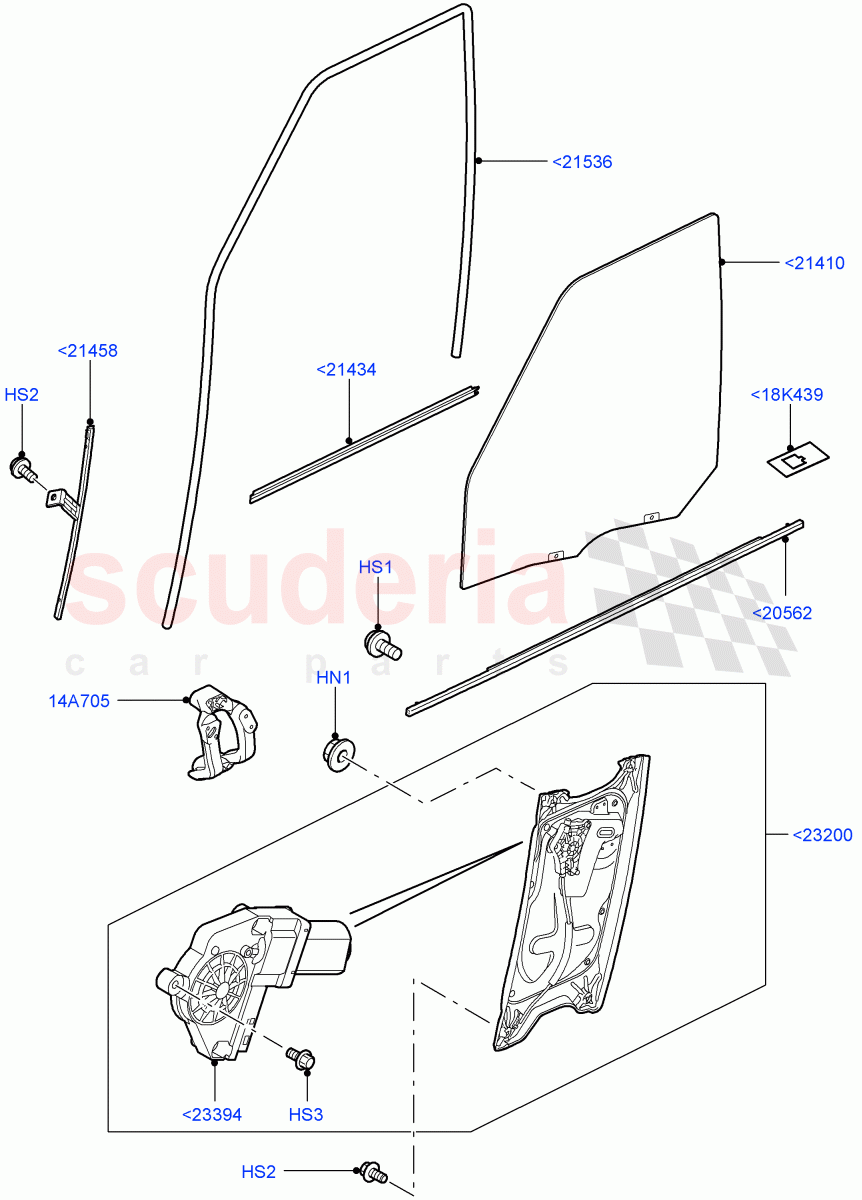

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106047	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP500080	SCREW	Enquire	To Order
	CYP500080	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016714	SCREW - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CGE000482	WEATHERSTRIP	Enquire	To Order
	CGE000492	WEATHERSTRIP	Enquire	To Order
	LR044649	WEATHERSTRIP - DOOR BELT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CUB500160	GLASS - DOOR	Enquire	To Order
	CUB500170	GLASS - DOOR	Enquire	To Order
	LR027542	GLASS - DOOR DROP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CGE500201	WEATHERSTRIP	Enquire	To Order
	CGE500211	WEATHERSTRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024084	CHANNEL - DOOR GLASS	Enquire	To Order
	LR024085	CHANNEL - DOOR GLASS	Enquire	To Order
	LR024084	CHANNEL - DOOR GLASS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CFE500820	RUN - DOOR GLASS	Enquire	To Order
	CFE500830	RUN - DOOR GLASS	Enquire	To Order
	LR045588	RUN - DOOR GLASS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013865	REGULATOR AND MOTOR - WINDOW	Enquire	To Order
	LR013867	REGULATOR AND MOTOR - WINDOW	Enquire	To Order
	LR052111	REGULATOR AND MOTOR - WINDOW	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015450	MOTOR - WINDOW OPERATING	Enquire	To Order
	LR015451	MOTOR - WINDOW OPERATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FVY500020	BRACKET	Enquire	To Order
	FVY500030	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031724	PAD - WINDOW REGULATOR ANTI-RATTLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<18K439	LR031724	PAD - WINDOW REGULATOR ANTI-RATTLE	LR031724 PAD - WINDOW REGULATOR ANTI-RATTLE From: AA000001 / To: BA557699	-	1	Enquire
<20562	CGE000482	WEATHERSTRIP	CGE000482 WEATHERSTRIP RH, Outer / From: AA000001 / To: CA647958	-	1	Enquire
<20562	CGE000492	WEATHERSTRIP	CGE000492 WEATHERSTRIP LH, Outer / From: AA000001 / To: CA647158	-	1	Enquire
<20562	LR044649	WEATHERSTRIP - DOOR BELT	LR044649 WEATHERSTRIP - DOOR BELT RH, Outer / From: CA647959	-	1	Enquire
<20562	LR044650	WEATHERSTRIP - DOOR BELT	LR044650 WEATHERSTRIP - DOOR BELT LH, Outer / From: CA647159	-	1	Enquire
<21410	CUB500160	GLASS - DOOR	CUB500160 GLASS - DOOR RH, Contains Mounting Clips / From: AA000001 / To: AA557922	-	1	Enquire
<21410	CUB500170	GLASS - DOOR	CUB500170 GLASS - DOOR LH, Contains Mounting Clips / From: AA000001 / To: AA557922	-	1	Enquire
<21410	LR027542	GLASS - DOOR DROP	LR027542 GLASS - DOOR DROP RH, Contains Mounting Clips / From: AA557923 / To: CA624853	-	1	Enquire
<21410	LR029103	GLASS - DOOR DROP	LR029103 GLASS - DOOR DROP LH, Contains Mounting Clips / From: AA557923 / To: CA628017	-	1	Enquire
<21410	LR040916	GLASS - DOOR DROP	LR040916 GLASS - DOOR DROP RH, Contains Mounting Clips / From: CA624854	-	1	Enquire
<21410	LR040917	GLASS - DOOR DROP	LR040917 GLASS - DOOR DROP LH, Contains Mounting Clips / From: CA628018	-	1	Enquire
<21434	CGE500201	WEATHERSTRIP	CGE500201 WEATHERSTRIP RH, Inner / From: AA000001	-	1	Enquire
<21434	CGE500211	WEATHERSTRIP	CGE500211 WEATHERSTRIP LH, Inner / From: AA000001	-	1	Enquire
<21458	LR024084	CHANNEL - DOOR GLASS	LR024084 CHANNEL - DOOR GLASS RH / From: AA000001 / To: AA549972	-	1	Enquire
<21458	LR024085	CHANNEL - DOOR GLASS	LR024085 CHANNEL - DOOR GLASS LH / From: AA000001 / To: AA549972	-	1	Enquire
<21458	LR024084	CHANNEL - DOOR GLASS	LR024084 CHANNEL - DOOR GLASS RH / From: AA549973	-	1	Enquire
<21458	LR024085	CHANNEL - DOOR GLASS	LR024085 CHANNEL - DOOR GLASS LH / From: AA549973	-	1	Enquire
<21536	CFE500820	RUN - DOOR GLASS	CFE500820 RUN - DOOR GLASS RH / From: AA000001 / To: DA652345	-	1	Enquire
<21536	CFE500830	RUN - DOOR GLASS	CFE500830 RUN - DOOR GLASS LH / From: AA000001 / To: DA652345	-	1	Enquire
<21536	LR045588	RUN - DOOR GLASS	LR045588 RUN - DOOR GLASS RH / From: DA652346 / To: DA690399	-	1	Enquire
<21536	LR045589	RUN - DOOR GLASS	LR045589 RUN - DOOR GLASS LH / From: DA652346 / To: DA690399	-	1	Enquire
<21536	LR048818	RUN - DOOR GLASS	LR048818 RUN - DOOR GLASS LH / From: DA690400	-	1	Enquire
<21536	LR048819	RUN - DOOR GLASS	LR048819 RUN - DOOR GLASS RH / From: DA690400	-	1	Enquire
<23200	LR013865	REGULATOR AND MOTOR - WINDOW	LR013865 REGULATOR AND MOTOR - WINDOW RH / From: AA000001 / To: DA691524	-	1	Enquire
<23200	LR013867	REGULATOR AND MOTOR - WINDOW	LR013867 REGULATOR AND MOTOR - WINDOW LH / From: AA000001 / To: DA691524	-	1	Enquire
<23200	LR052111	REGULATOR AND MOTOR - WINDOW	LR052111 REGULATOR AND MOTOR - WINDOW RH / From: DA691525 / To: EA999999	-	1	Enquire
<23200	LR052110	REGULATOR AND MOTOR - WINDOW	LR052110 REGULATOR AND MOTOR - WINDOW LH / From: DA691525 / To: EA999999	-	1	Enquire
<23200	LR063670	REGULATOR - WINDOW	LR063670 REGULATOR - WINDOW LH / From: FA000001	-	1	Enquire
<23200	LR063671	REGULATOR - WINDOW	LR063671 REGULATOR - WINDOW RH / From: FA000001	-	1	Enquire
<23394	LR015450	MOTOR - WINDOW OPERATING	LR015450 MOTOR - WINDOW OPERATING RH / From: AA000001	-	1	Enquire
<23394	LR015451	MOTOR - WINDOW OPERATING	LR015451 MOTOR - WINDOW OPERATING LH / From: AA000001	-	1	Enquire
HN1	FN106047	Nut	FN106047 Nut M6, Window Regulator / From: AA000001	-	4	Enquire
HS1	CYP500010	SCREW	CYP500010 SCREW	-	12	Enquire
HS2	CYP500080	SCREW	CYP500080 SCREW M6 x 12MM, Window Regulator / From: AA000001	-	8	Enquire
HS2	CYP500080	SCREW	CYP500080 SCREW M6 x 12MM, Run Glass Channel / From: AA000001	-	2	Enquire
HS3	LR016714	SCREW - SPECIAL	LR016714 SCREW - SPECIAL Motor - Window / From: AA000001	-	6	Enquire
14A705	FVY500020	BRACKET	FVY500020 BRACKET RH, Window Regulator / From: AA000001	-	1	Enquire
14A705	FVY500030	BRACKET	FVY500030 BRACKET LH, Window Regulator / From: AA000001	-	1	Enquire
