Luggage Compt/Tailgte Lock Controls ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Luggage Compt/Tailgte Lock Controls ((V) FROMAA000001)

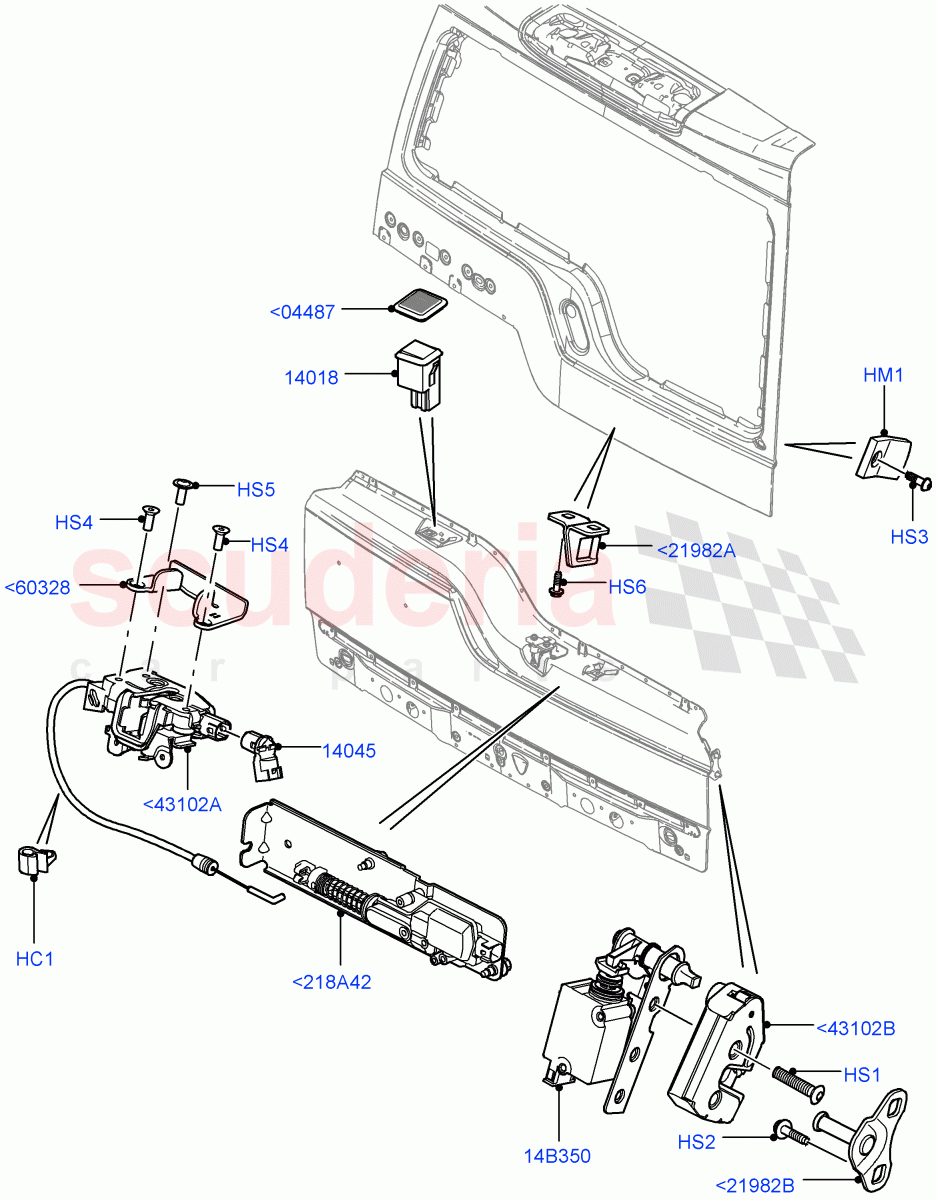

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR018070	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CKM000010	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500280	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP101410	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500020	BOLT - HEX. HEAD - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500360	SCREW	Enquire	To Order
	RYG501540	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQY500011	SWITCH - PUSH-BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CWM500010	SWITCH - ALARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYA500011	PLUG - SWITCH HOLE BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYH500170	BRACKET - TAILGATE LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FUG500120	ACTUATOR	Enquire	To Order
	FUG500130	ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FUG500010	REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQQ000033	STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQQ000040	STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017470	LATCH - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CWC500020	LATCH - TAILGATE	Enquire	To Order
	CWC500030	LATCH - TAILGATE	Enquire	To Order
	LR085583	LATCH - TAILGATE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A42	FUG500010	REGULATOR	FUG500010 REGULATOR Lower Tailgate / From: AA000001	-	1	Enquire
<04487	BYA500011	PLUG - SWITCH HOLE BLANKING	BYA500011 PLUG - SWITCH HOLE BLANKING Lower Tailgate, Tailgate Release / From: AA000001	-	1	Enquire
<21982A	FQQ000033	STRIKER	FQQ000033 STRIKER Upper Tailgate / From: AA000001	-	1	Enquire
<21982B	FQQ000040	STRIKER	FQQ000040 STRIKER On Body / From: AA000001	-	2	Enquire
<43102A	LR017470	LATCH - TAILGATE	LR017470 LATCH - TAILGATE Lower / From: AA000001	-	1	Enquire
<43102B	CWC500020	LATCH - TAILGATE	CWC500020 LATCH - TAILGATE RH, Lower, Side / From: AA000001 / To: GA808604	-	1	Enquire
<43102B	CWC500030	LATCH - TAILGATE	CWC500030 LATCH - TAILGATE LH, Lower, Side / From: AA000001 / To: GA808604	-	1	Enquire
<43102B	LR085583	LATCH - TAILGATE	LR085583 LATCH - TAILGATE RH, Lower, Side / From: GA808605	-	1	Enquire
<43102B	LR085940	LATCH - TAILGATE	LR085940 LATCH - TAILGATE LH, Lower, Side / From: GA808605	-	1	Enquire
<60328	FYH500170	BRACKET - TAILGATE LOCK	FYH500170 BRACKET - TAILGATE LOCK Lower Tailgate / From: AA000001	-	1	Enquire
HC1	LR018070	CLIP	LR018070 CLIP Latch / From: AA000001	-	1	Enquire
HM1	CKM000010	BUMP STOP	CKM000010 BUMP STOP Buffer, Upper Tailgate / From: AA000001	-	2	Enquire
HS1	BYP500280	SCREW	BYP500280 SCREW Latch, M8 x 40MM Torx, Side / From: AA000001	-	4	Enquire
HS2	BYP500370	SCREW	BYP500370 SCREW M8 X 16MM, On Body, Screw And Washer, Striker / From: AA000001	-	4	Enquire
HS3	DYP101410	SCREW	DYP101410 SCREW Buffer, M8 X 25MM, Upper Tailgate / From: AA000001	-	2	Enquire
HS4	BYP500020	BOLT - HEX. HEAD - FLANGED	BYP500020 BOLT - HEX. HEAD - FLANGED Latch, M6X1X12.9 / From: AA000001	-	2	Enquire
HS5	BYP500360	SCREW	BYP500360 SCREW Latch, M6 x 15MM / From: AA000001 / To: CA602800	-	1	Enquire
HS5	RYG501540	SCREW	RYG501540 SCREW Latch, M6 x 12MM / From: CA602801	-	1	Enquire
HS6	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM, Striker, Upper Tailgate / From: AA000001	-	2	Enquire
14B350	FUG500120	ACTUATOR	FUG500120 ACTUATOR RH, Lower Tailgate, Side / From: AA000001	-	1	Enquire
14B350	FUG500130	ACTUATOR	FUG500130 ACTUATOR LH, Lower Tailgate, Side / From: AA000001	-	1	Enquire
14018	FQY500011	SWITCH - PUSH-BUTTON	FQY500011 SWITCH - PUSH-BUTTON Door Release Control, Lower Tailgate / From: AA000001	-	1	Enquire
14045	CWM500010	SWITCH - ALARM	CWM500010 SWITCH - ALARM Latch / From: AA000001	-	1	Enquire
