Engine Mounting (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Engine Mounting (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033199 BOLT $2.46 To Order
Photo Part No Description Price (each) Stock
LR033200 BOLT $26.38 To Order
Photo Part No Description Price (each) Stock
LR015357 CLIP $1.11 To Order
Photo Part No Description Price (each) Stock
FN112057 NUT $1.31 To Order
FN112056 NUT - HEX. - FLANGED $1.13 IN STOCK
Photo Part No Description Price (each) Stock
LYG500350 SCREW $2.30 To Order
Photo Part No Description Price (each) Stock
DYP101610 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR014281 HOSE - VACUUM $95.72 To Order
LR024281 HOSE - VACUUM $126.04 To Order
Photo Part No Description Price (each) Stock
LR014280 SOLENOID $411.00 To Order
LR023209 SOLENOID - VACUUM CONTROL $411.00 To Order
LR052187 SOLENOID - VACUUM CONTROL $411.00 To Order
Photo Part No Description Price (each) Stock
LR007802 BRACKET - ENGINE SUPPORT $65.67 To Order
LR074105 BRACKET - ENGINE SUPPORT $65.67 To Order
Photo Part No Description Price (each) Stock
LR014104 BRACKET - ENGINE FRONT SUPPORT $52.92 To Order
LR074104 BRACKET - ENGINE FRONT SUPPORT $52.92 To Order
Photo Part No Description Price (each) Stock
LR014113 BRACKET - ENGINE MOUNTING $125.05 To Order
Photo Part No Description Price (each) Stock
KYG500090 BOLT - HEX.HEAD $16.44 To Order
View All

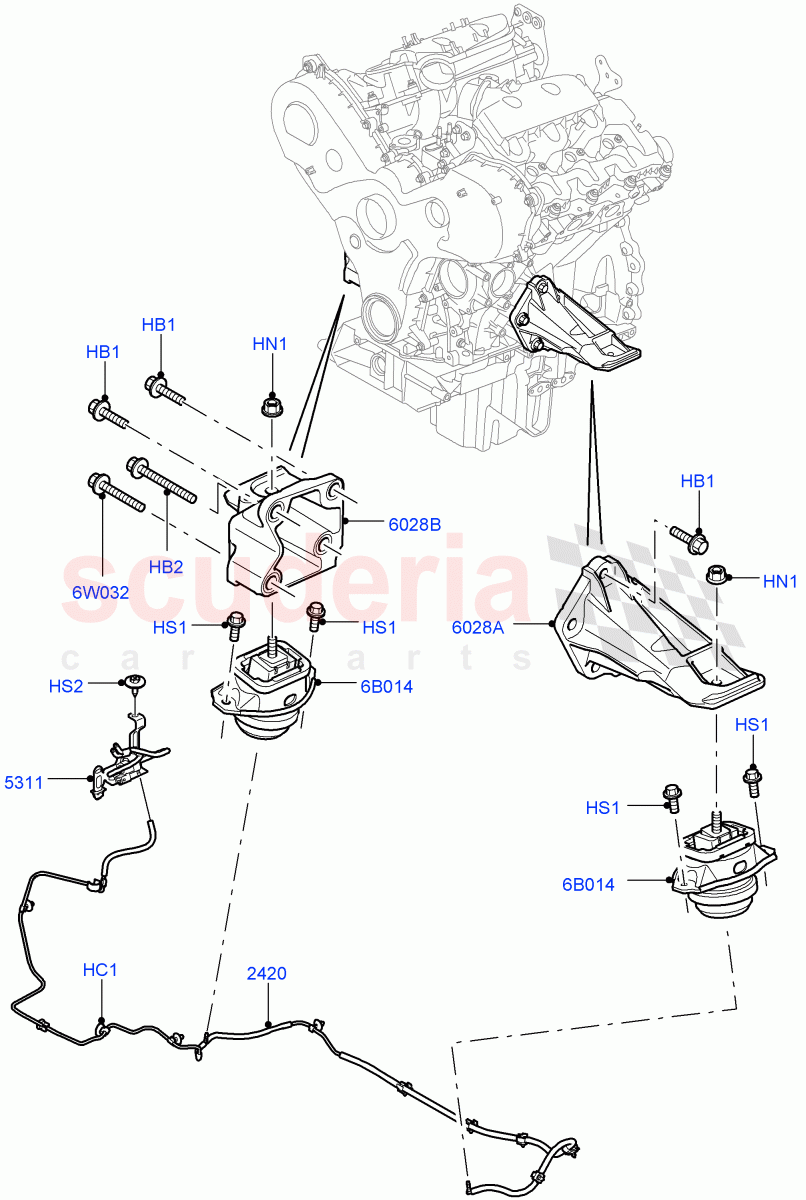

Engine Mounting (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033199
BOLT
Hexagonal Head, M12 X 42MM / From: AA000001 		$2.46 6
HB2 LR033200
BOLT
Hexagonal Head, M12 x 122MM / From: AA000001 		$26.38 1
HC1 LR015357
CLIP
To Vacuum, Tube / From: AA000001 		$1.11 1
HN1 FN112057
NUT
M12 / From: AA000001 / To: AA551483 		$1.31 2
HN1 FN112056
NUT - HEX. - FLANGED
M12 / From: BA551484
IN STOCK 		$1.13 2
HS1 LYG500350
SCREW
M10 X 25MM / From: AA000001 		$2.30 4
HS2 DYP101610
SCREW
5 x 20MM, Self Tapping / From: AA000001 		$0.62 1
6B014 LR014113
BRACKET - ENGINE MOUNTING
INSULATOR ASSY / From: AA000001 		$125.05 2
6W032 KYG500090
BOLT - HEX.HEAD
M12 x 87MM / From: AA000001 		$16.44 1
2420 LR014281
HOSE - VACUUM
From: AA000001 / To: AA551483 		$95.72 1
2420 LR024281
HOSE - VACUUM
From: BA551484 		$126.04 1
5311 LR014280
SOLENOID
To Vacuum / From: AA000001 / To: AA535471 		$411.00 1
5311 LR023209
SOLENOID - VACUUM CONTROL
To Vacuum / From: AA535472 / To: DA999999 		$411.00 1
5311 LR052187
SOLENOID - VACUUM CONTROL
To Vacuum / From: EA000001 		$411.00 1
6028A LR007802
BRACKET - ENGINE SUPPORT
LH / From: AA000001 / To: EA731024 		$65.67 1
6028A LR074105
BRACKET - ENGINE SUPPORT
LH / From: EA731025 		$65.67 1
6028B LR014104
BRACKET - ENGINE FRONT SUPPORT
RH / From: AA000001 / To: EA710385 		$52.92 1
6028B LR074104
BRACKET - ENGINE FRONT SUPPORT
RH / From: EA710386 		$52.92 1
