Engine Mounting (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Engine Mounting (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN112057 NUT Enquire To Order
FN112056 NUT - HEX. - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LYG500350 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR007802 BRACKET - ENGINE SUPPORT Enquire To Order
LR074105 BRACKET - ENGINE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR014104 BRACKET - ENGINE FRONT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
KKB500760 SUPPORT - ENGINE MOUNTING - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
KYG500100 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
KYG500090 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
KYG500080 BOLT - HEX.HEAD Enquire To Order
View All

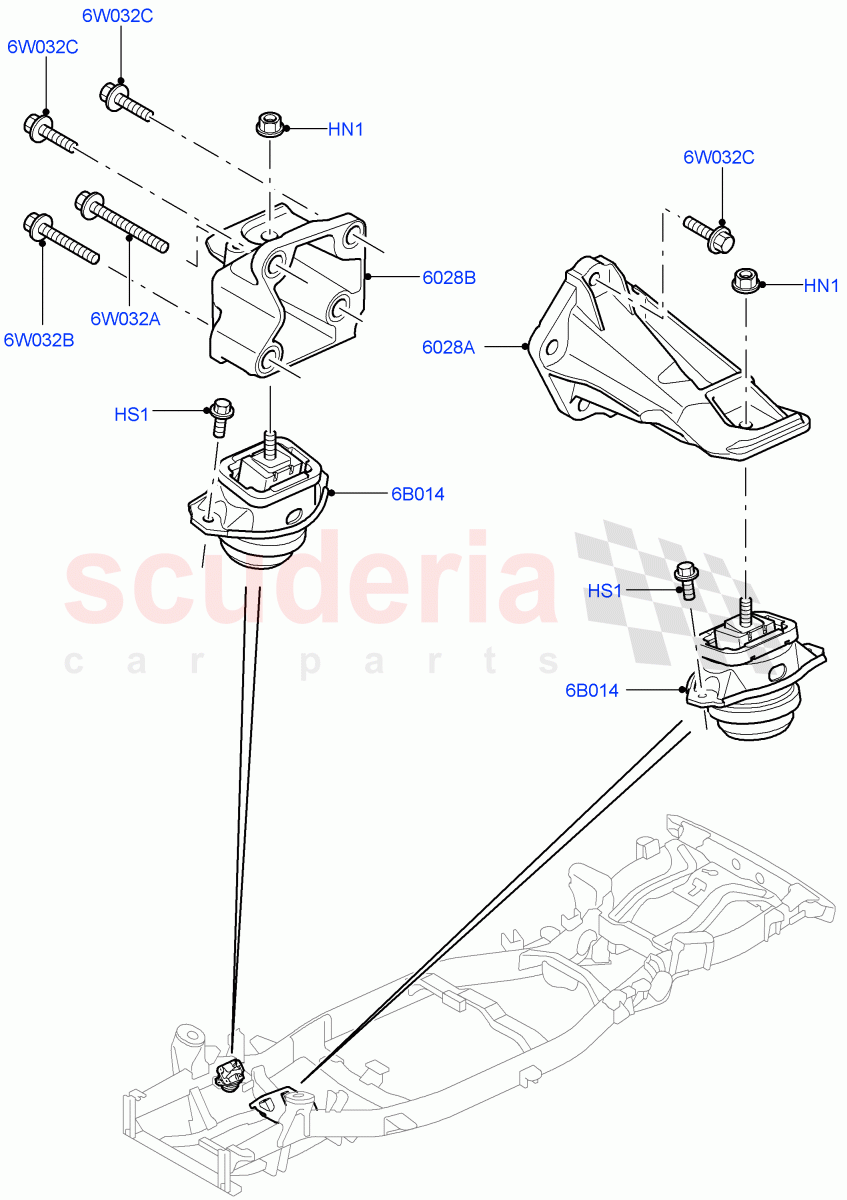

Engine Mounting (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN112057
NUT
M12 / From: AA000001 / To: AA551483 		- 2 Enquire
HN1 FN112056
NUT - HEX. - FLANGED
M12 / From: BA551484 		- 2 Enquire
HS1 LYG500350
SCREW
M10 X 25MM / From: AA000001 		- 4 Enquire
6B014 KKB500760
SUPPORT - ENGINE MOUNTING - FRONT
INSULATOR ASSY / From: AA000001 		- 2 Enquire
6W032A KYG500100
BOLT - HEX.HEAD
M12 x 122MM / From: AA000001 		- 1 Enquire
6W032B KYG500090
BOLT - HEX.HEAD
M12 x 87MM / From: AA000001 		- 1 Enquire
6W032C KYG500080
BOLT - HEX.HEAD
M12 X 42MM / From: AA000001 		- 6 Enquire
6028A LR007802
BRACKET - ENGINE SUPPORT
LH / From: AA000001 / To: EA731024 		- 1 Enquire
6028A LR074105
BRACKET - ENGINE SUPPORT
LH / From: EA731025 		- 1 Enquire
6028B LR014104
BRACKET - ENGINE FRONT SUPPORT
RH / From: AA000001 / To: EA710385 		- 1 Enquire
