Front Panels, Aprons & Side Members (Front End Carrier) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Front Panels, Aprons & Side Members (Front End Carrier) ((V) FROMAA000001)

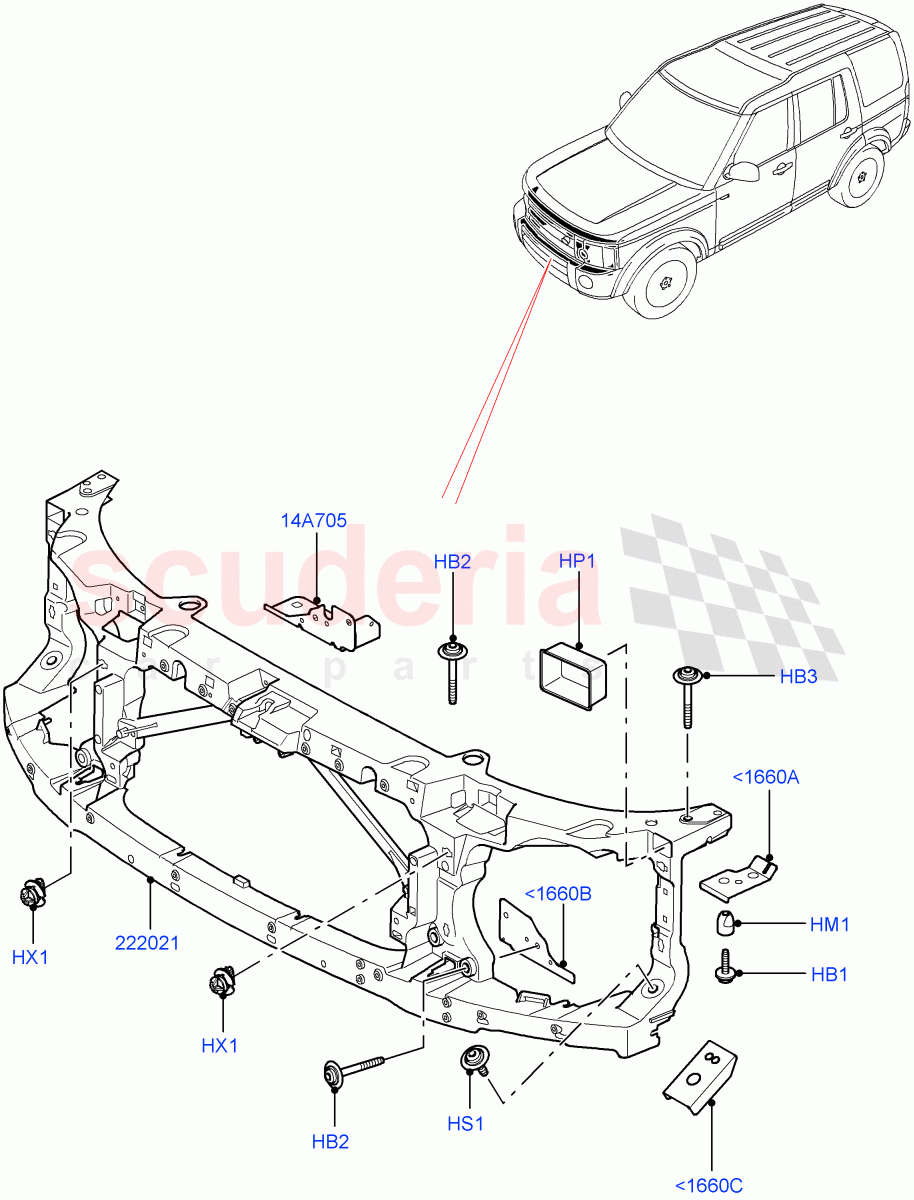

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500090	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015148	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYG500010	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYU500011	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYB500020	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYG000034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XZM500013	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500082	SPACER	Enquire	To Order
	DYF500092	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500202	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500101	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ASU780221	BRACKET	Enquire	To Order
	ASU780231	BRACKET	Enquire	To Order
	LR054811	BRACKET - FRONT END	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013044	FRONT END	Enquire	To Order
	LR024332	FRONT END	Enquire	To Order
	LR054853	FRONT - END	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<1660A	DYF500082	SPACER	DYF500082 SPACER RH, Upper Valance / From: AA000001	-	1	Enquire
<1660A	DYF500092	SPACER	DYF500092 SPACER LH, Upper Valance / From: AA000001	-	1	Enquire
<1660B	DYF500202	SPACER	DYF500202 SPACER Frame Mounted, Rear / From: AA000001	-	2	Enquire
<1660C	DYF500101	SPACER	DYF500101 SPACER Lower Valance / From: AA000001	-	2	Enquire
HB1	DYP500090	BOLT - HEX.HEAD	DYP500090 BOLT - HEX.HEAD M4 x 14MM / From: AA000001	-	2	Enquire
HB2	LR015148	BOLT	LR015148 BOLT M8 X 1.25 / From: AA000001	-	8	Enquire
HB3	DYG500010	BOLT	DYG500010 BOLT Front End Assy, M8 x 65MM / From: AA000001	-	4	Enquire
HM1	AYU500011	DOWEL	AYU500011 DOWEL M4, Pin - Dowell / From: AA000001	-	2	Enquire
HP1	DYB500020	PLUG	DYB500020 PLUG Blanking / From: AA000001	-	2	Enquire
HS1	DYG000034	SCREW	DYG000034 SCREW Lower Valance, M8 x 30MM / From: AA000001	-	2	Enquire
HX1	XZM500013	RETAINER	XZM500013 RETAINER 1/4 Turn Click Type, Fixing Headlamp / From: AA000001	-	8	Enquire
14A705	ASU780221	BRACKET	ASU780221 BRACKET RH, Front End Carrier / From: AA000001 / To: DA999999	-	1	Enquire
14A705	ASU780231	BRACKET	ASU780231 BRACKET LH, Front End Carrier / From: AA000001 / To: DA999999	-	1	Enquire
14A705	LR054811	BRACKET - FRONT END	LR054811 BRACKET - FRONT END RH, Front End Carrier / From: EA000001	-	1	Enquire
14A705	LR054810	BRACKET - FRONT END	LR054810 BRACKET - FRONT END LH, Front End Carrier / From: EA000001	-	1	Enquire
222021	LR013044	FRONT END	LR013044 FRONT END From: AA000001 / To: AA548170	-	1	Enquire
222021	LR024332	FRONT END	LR024332 FRONT END From: AA548171 / To: EA705769	-	1	Enquire
222021	LR054853	FRONT - END	LR054853 FRONT - END From: EA705770	-	1	Enquire
