Rear Seat Belts (With 35/30/35 Split Fold Rear Seat) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Rear Seat Belts (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EYG500230 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
HYG500200 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYG500130 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYG500170 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYG500180 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYG500190 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR100329 FOAM PAD - KIT Enquire To Order
Photo Part No Description Price (each) Stock
LR009291 BUCKLE - SEAT BELT Enquire To Order
LR009305 BUCKLE - SEAT BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR009308 BUCKLE - SEAT BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR016452 SEAT BELT ASSY Enquire To Order
LR016453 SEAT BELT ASSY Enquire To Order
LR056625 SEAT BELT AND RETRACTOR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR009306 BELT AND BUCKLE ASSY Enquire To Order
LR019939 BELT AND BUCKLE ASSY Enquire To Order
View All

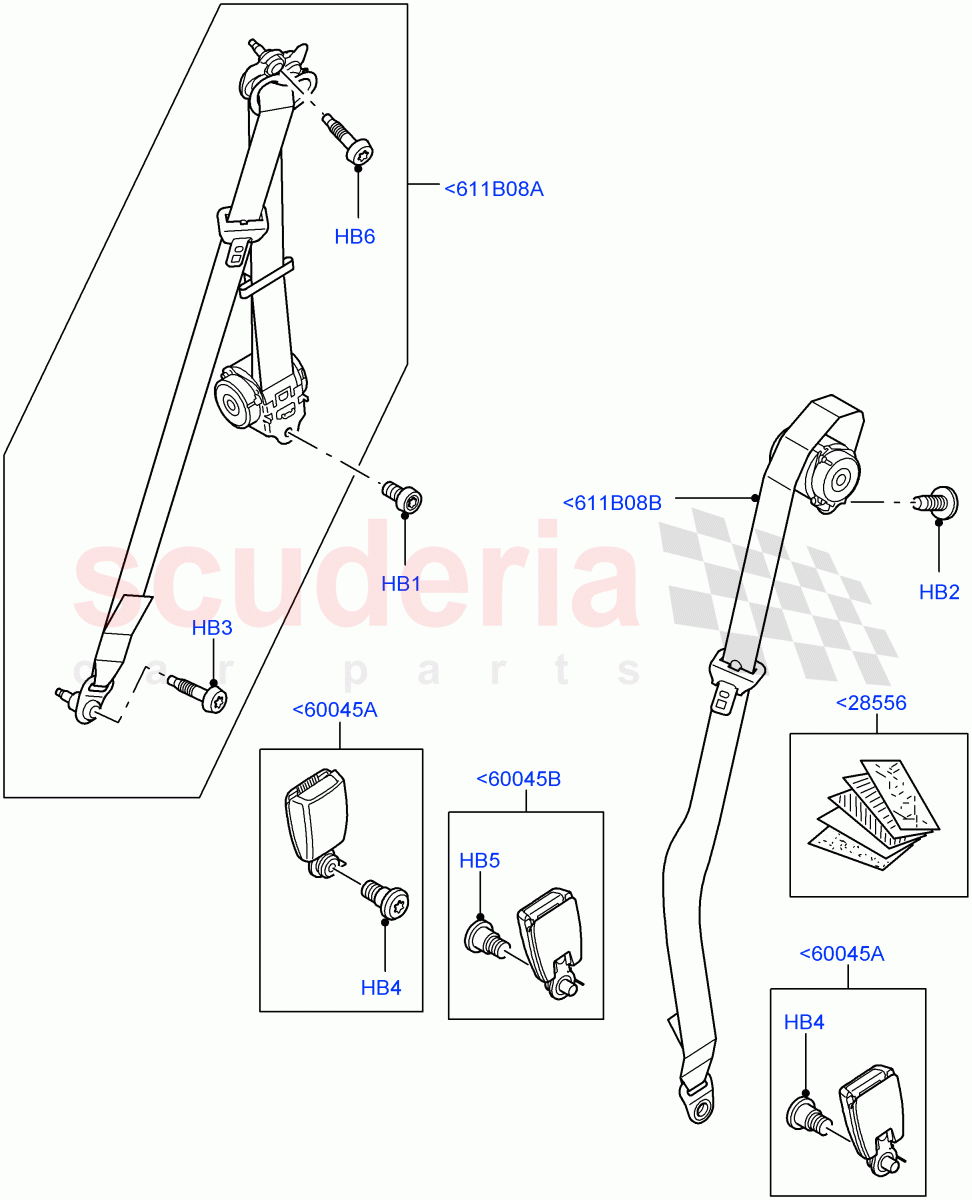

Rear Seat Belts (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<611B08A LR016452
SEAT BELT ASSY
RH, Black / From: AA000001 / To: DA670399 		- 1 Enquire
<611B08A LR016453
SEAT BELT ASSY
LH, Black / From: AA000001 / To: DA670399 		- 1 Enquire
<611B08A LR056625
SEAT BELT AND RETRACTOR
RH, Black / From: DA670400 		- 1 Enquire
<611B08A LR056627
SEAT BELT AND RETRACTOR
LH, Black / From: DA670400 		- 1 Enquire
<611B08B LR009306
BELT AND BUCKLE ASSY
Black, Centre / From: AA000001 / To: AA515215 		- 1 Enquire
<611B08B LR019939
BELT AND BUCKLE ASSY
Black, Centre / From: AA515216 		- 1 Enquire
<28556 LR100329
FOAM PAD - KIT
Contains Felt Pads (0.5mm, 1mm, 1.6mm - 2 Pieces Of Each), Contains Nitto Foam Pads (3mm, 5mm - 2 Pieces Of Each), Contains PVC Foam Pads (3mm - 2 Pieces) And PTFE Tape (0.25mm), Seat Belt Buckle / From: AA000001 		- 1 Enquire
<60045A LR009291
BUCKLE - SEAT BELT
Black, RH - Outer / From: AA000001 		- 1 Enquire
<60045A LR009305
BUCKLE - SEAT BELT
Black, LH - Outer / From: AA000001 		- 1 Enquire
<60045B LR009308
BUCKLE - SEAT BELT
Black, Centre / From: AA000001 		- 1 Enquire
HB1 EYG500230
BOLT - HEX.HEAD
Attaches Belt Retractor, M10 X 20MM / From: AA000001 		- 2 Enquire
HB2 HYG500200
BOLT
Attaches Belt Retractor, M10, Torx / From: AA000001 		- 1 Enquire
HB3 EYG500130
BOLT
Attaches Belt To Seat Cushion, M10 / From: AA000001 		- 2 Enquire
HB4 EYG500170
BOLT
Bolt to Attach Seat Belt Buckle To Cushion Frame, M10, Torx / From: AA000001 		- 1 Enquire
HB5 EYG500180
BOLT
Bolt to Attach Seat Belt Buckle To Cushion Frame, M12 / From: AA000001 		- 1 Enquire
HB6 EYG500190
BOLT
M10 / From: AA000001 		- 2 Enquire
