Find Your Part

Instrument Panel (Lower) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Instrument Panel (Lower) ((V) FROMAA000001)

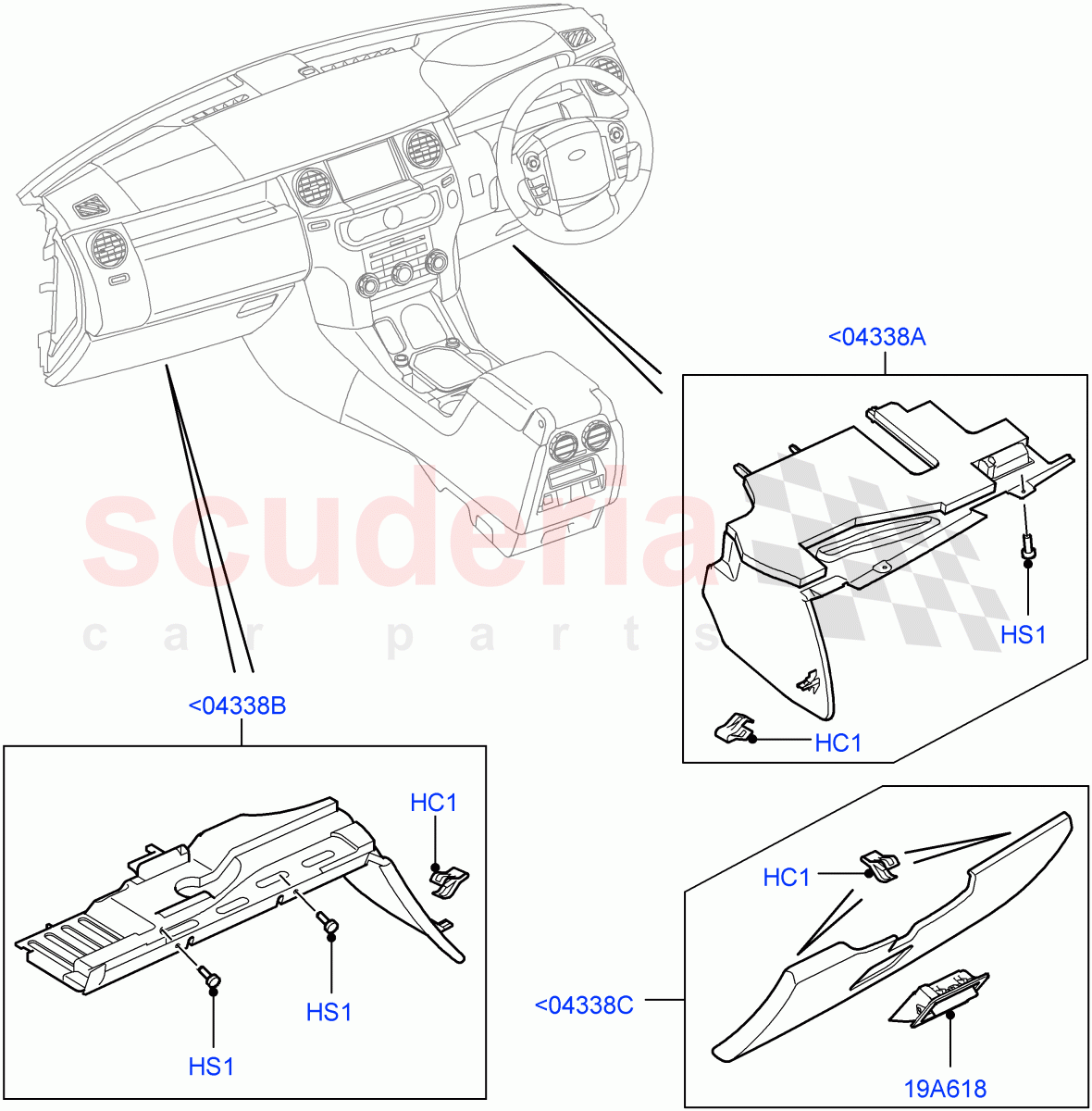

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYC500040	CLIP	Enquire	To Order
	FYC500040	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JBD500030PVJ	DUCT - HEATER AIR INLET	Enquire	To Order
	LR008748	DUCT - HEATER AIR INLET	Enquire	To Order
	LR028394	DUCT - HEATER AIR INLET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016770	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	LR016771	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	LR016772	PANEL - INSTRUMENT - LOWER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017407	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	LR017408	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	LR017410	PANEL - INSTRUMENT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR018613	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	LR018614	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	LR018616	PANEL - INSTRUMENT - LOWER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<04338A	LR016770	PANEL - INSTRUMENT - LOWER	LR016770 PANEL - INSTRUMENT - LOWER Int Ebony Carpet, RHD / Driver / From: AA000001	-	1	Enquire
<04338A	LR016771	PANEL - INSTRUMENT - LOWER	LR016771 PANEL - INSTRUMENT - LOWER Interior Nutmeg Carpet - LR, RHD / Driver / From: AA000001	-	1	Enquire
<04338A	LR016772	PANEL - INSTRUMENT - LOWER	LR016772 PANEL - INSTRUMENT - LOWER Int Ebony Carpet, LHD / Driver / From: AA000001	-	1	Enquire
<04338A	LR016773	PANEL - INSTRUMENT - DRIVER	LR016773 PANEL - INSTRUMENT - DRIVER Interior Nutmeg Carpet - LR, LHD / Driver / From: AA000001	-	1	Enquire
<04338B	LR017407	PANEL - INSTRUMENT - LOWER	LR017407 PANEL - INSTRUMENT - LOWER Int Ebony Carpet, RHD / Passenger / From: AA000001	-	1	Enquire
<04338B	LR017408	PANEL - INSTRUMENT - LOWER	LR017408 PANEL - INSTRUMENT - LOWER Interior Nutmeg Carpet - LR, RHD / Passenger / From: AA000001	-	1	Enquire
<04338B	LR017410	PANEL - INSTRUMENT	LR017410 PANEL - INSTRUMENT Int Ebony Carpet, LHD / Passenger / From: AA000001	-	1	Enquire
<04338B	LR017411	PANEL - INSTRUMENT - LOWER	LR017411 PANEL - INSTRUMENT - LOWER Interior Nutmeg Carpet - LR, LHD / Passenger / From: AA000001	-	1	Enquire
<04338C	LR018613	PANEL - INSTRUMENT - LOWER	LR018613 PANEL - INSTRUMENT - LOWER I/P Facia Contrast - Ebony Black, RHD / Driver, Ebony Black / From: AA000001 / To: BA579169	-	1	Enquire
<04338C	LR018614	PANEL - INSTRUMENT - LOWER	LR018614 PANEL - INSTRUMENT - LOWER I/P Facia Contrast - Nutmeg/Almond, RHD / Almond, Driver / From: AA000001 / To: BA579169	-	1	Enquire
<04338C	LR018616	PANEL - INSTRUMENT - LOWER	LR018616 PANEL - INSTRUMENT - LOWER I/P Facia Contrast - Ebony Black, LHD / Driver, Ebony Black / From: AA000001 / To: BA579169	-	1	Enquire
<04338C	LR018617	PANEL - INSTRUMENT - LOWER	LR018617 PANEL - INSTRUMENT - LOWER I/P Facia Contrast-Arabica/Almond, LHD / Almond, Driver / From: AA000001 / To: BA579169	-	1	Enquire
<04338C	LR031778	PANEL - INSTRUMENT - LOWER	LR031778 PANEL - INSTRUMENT - LOWER I/P Facia Contrast - Ebony Black, RHD / Driver, Ebony Black / From: BA579170	-	1	Enquire
<04338C	LR031779	PANEL - INSTRUMENT - LOWER	LR031779 PANEL - INSTRUMENT - LOWER I/P Facia Contrast-Arabica/Almond, RHD / Almond, Driver / From: BA579170	-	1	Enquire
<04338C	LR031781	PANEL - INSTRUMENT - LOWER	LR031781 PANEL - INSTRUMENT - LOWER I/P Facia Contrast - Ebony Black, LHD / Driver, Ebony Black / From: BA579170	-	1	Enquire
<04338C	LR031783	PANEL - INSTRUMENT - LOWER	LR031783 PANEL - INSTRUMENT - LOWER I/P Facia Contrast-Arabica/Almond, LHD / Almond, Driver / From: BA579170	-	1	Enquire
HC1	FYC500040	CLIP	FYC500040 CLIP Driver And Passenger Side, Panel, Steel / From: AA000001	-	1	Enquire
HC1	FYC500040	CLIP	FYC500040 CLIP Front Panel, Lower, Steel / From: AA000001	-	2	Enquire
HS1	FYP500390	SCREW	FYP500390 SCREW 1/4 Turn Click Type, Driver And Passenger Side / From: AA000001	-	2	Enquire
19A618	JBD500030PVJ	DUCT - HEATER AIR INLET	JBD500030PVJ DUCT - HEATER AIR INLET I/P Facia Contrast - Ebony Black / Ebony Black / From: AA000001 / To: BA579169	-	1	Enquire
19A618	LR008748	DUCT - HEATER AIR INLET	LR008748 DUCT - HEATER AIR INLET I/P Facia Contrast - Nutmeg/Almond / Almond / From: AA000001 / To: BA579169	-	1	Enquire
19A618	LR028394	DUCT - HEATER AIR INLET	LR028394 DUCT - HEATER AIR INLET I/P Facia Contrast - Ebony Black / Ebony Black / From: BA579170	-	1	Enquire
19A618	LR028395	DUCT - HEATER AIR INLET	LR028395 DUCT - HEATER AIR INLET I/P Facia Contrast-Arabica/Almond / Almond / From: BA579170	-	1	Enquire
