Airbag System (Airbag Modules) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Airbag System (Airbag Modules) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYC500010 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
CYH100310 NUT Enquire To Order
Photo Part No Description Price (each) Stock
EYP500060 SCREW - PAN HEAD - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
DCP5044 Screw Enquire To Order
Photo Part No Description Price (each) Stock
BYP500130 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR014038 MODULE - AIR BAG UN3268 Enquire To Order
LR014039 MODULE - AIR BAG Enquire To Order
LR062414 MODULE - AIR BAG Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014046 MODULE - AIR BAG Enquire To Order
LR014041 MODULE - AIR BAG UN3268 Enquire To Order
LR076783 MODULE - AIR BAG Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012986 AIR BAG - STEERING WHEEL Enquire To Order
LR023206 MODULE - AIR BAG Enquire To Order
LR051756 AIR BAG - STEERING WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
LR018452 MODULE - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR017430 SIDE AIR BAG UN3268 Enquire To Order
LR017431 SIDE AIR BAG UN3268 Enquire To Order
Photo Part No Description Price (each) Stock
LR018580 SIDE AIR BAG Enquire To Order
LR018581 SIDE AIR BAG Enquire To Order
LR062411 SIDE AIR BAG Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

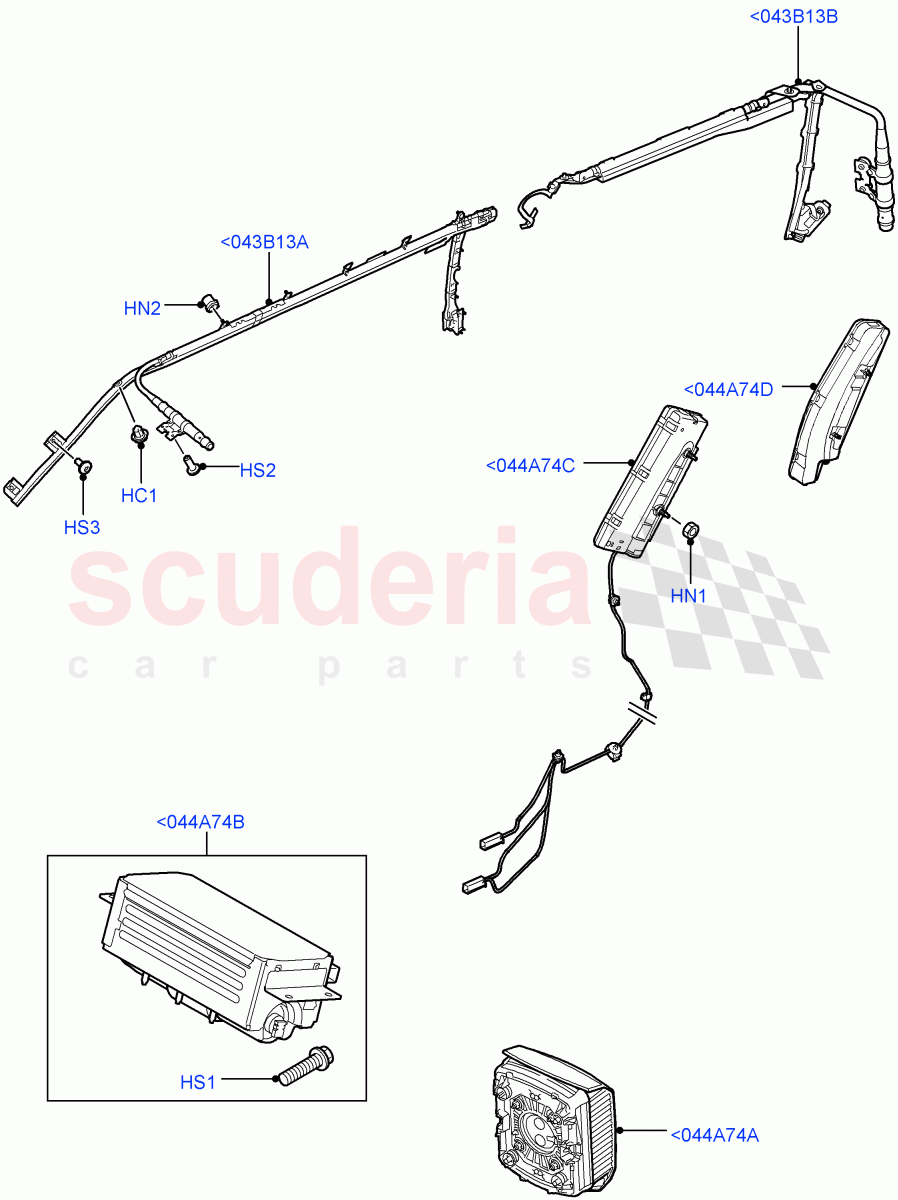

Airbag System (Airbag Modules) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<043B13A LR014038
MODULE - AIR BAG UN3268
Front RH / From: AA000001 / To: EA999999 		- 1 Enquire
<043B13A LR014039
MODULE - AIR BAG
LH Front / From: AA000001 / To: EA999999 		- 1 Enquire
<043B13A LR062414
MODULE - AIR BAG
Front RH / From: FA000001 / To: FA770166 		- 1 Enquire
<043B13A LR062415
MODULE - AIR BAG
LH Front / From: FA000001 / To: FA770166 		- 1 Enquire
<043B13A LR075143
CURTAIN - AIR BAG
Front RH / From: FA770167 		- 1 Enquire
<043B13A LR075144
CURTAIN - AIR BAG
LH Front / From: FA770167 		- 1 Enquire
<043B13B LR014046
MODULE - AIR BAG
With 7 Seat Configuration / 3rd Row, Rear LH / From: AA000001 / To: FA769527 		- 1 Enquire
<043B13B LR014041
MODULE - AIR BAG UN3268
With 7 Seat Configuration / 3rd Row, Rear RH / From: AA000001 / To: FA769527 		- 1 Enquire
<043B13B LR076783
MODULE - AIR BAG
With 7 Seat Configuration / 3rd Row, Rear RH / From: FA769528 		- 1 Enquire
<043B13B LR076784
AIR BAG
With 7 Seat Configuration / 3rd Row, Rear LH / From: FA769528 		- 1 Enquire
<044A74A LR012986
AIR BAG - STEERING WHEEL
Driver, Green / Gold / From: AA000001 / To: BA551483 		- 1 Enquire
<044A74A LR023206
MODULE - AIR BAG
Driver / From: BA551484 / To: DA999999 		- 1 Enquire
<044A74A LR051756
AIR BAG - STEERING WHEEL
Driver / From: EA000001 		- 1 Enquire
<044A74B LR018452
MODULE - AIR BAG
Kit, Passenger / From: AA000001 		- 1 Enquire
<044A74C LR017430
SIDE AIR BAG UN3268
(-)"CDN/MEX/USA" / RH, Seat Back / From: AA000001 		- 1 Enquire
<044A74C LR017431
SIDE AIR BAG UN3268
(-)"CDN/MEX/USA" / LH, Seat Back / From: AA000001 		- 1 Enquire
<044A74D LR018580
SIDE AIR BAG
(+)"CDN/MEX/USA" / RH, Seat Back / From: AA000001 / To: EA999999 		- 1 Enquire
<044A74D LR018581
SIDE AIR BAG
(+)"CDN/MEX/USA" / LH, Seat Back / From: AA000001 / To: EA999999 		- 1 Enquire
<044A74D LR062411
SIDE AIR BAG
(+)"CDN/MEX/USA", With Head Impact Crash Criteria / RH, Seat Back / From: FA000001 / To: FA757463 		- 1 Enquire
<044A74D LR062412
SIDE AIR BAG
(+)"CDN/MEX/USA" / LH, Seat Back / From: FA000001 / To: FA757463 		- 1 Enquire
<044A74D LR072772
SIDE AIR BAG
(+)"CDN/MEX/USA" / LH, Seat Back / From: FA757464 		- 1 Enquire
<044A74D LR072771
SIDE AIR BAG
(+)"CDN/MEX/USA" / RH, Seat Back / From: FA757464 		- 1 Enquire
HC1 RYC500010
CLIP
Push Pin / From: AA000001 		- 2 Enquire
HN1 RYH500420
NUT AND WASHER - HEX.
M6 / From: AA000001 		- 1 Enquire
HN2 CYH100310
NUT
To Side Air Curtain / From: AA000001 		- 4 Enquire
HS1 EYP500060
SCREW - PAN HEAD - SELF-TAPPING
6MM, Self Tapping, Torx / From: AA000001 		- 1 Enquire
HS2 DCP5044
Screw
M6 X 16MM, To Side Air Curtain, Torx / From: AA000001 		- 4 Enquire
HS3 BYP500130
SCREW
"A" Pillar / From: AA000001 		- - Enquire
