Front Seat Belts ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Front Seat Belts ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
EYG500230 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
EYG500030 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYG500110 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
EYG500120 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR009288 BUCKLE - SEAT BELT Enquire To Order
LR009289 BUCKLE - SEAT BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR009270 SEAT WITH HEIGHT ADJUST Enquire To Order
Photo Part No Description Price (each) Stock
LR009282 SEAT BELT Enquire To Order
LR009283 SEAT BELT Enquire To Order
LR009286 SEAT BELT Enquire To Order
...and 4 more part variants. See table on right for more details.
View All

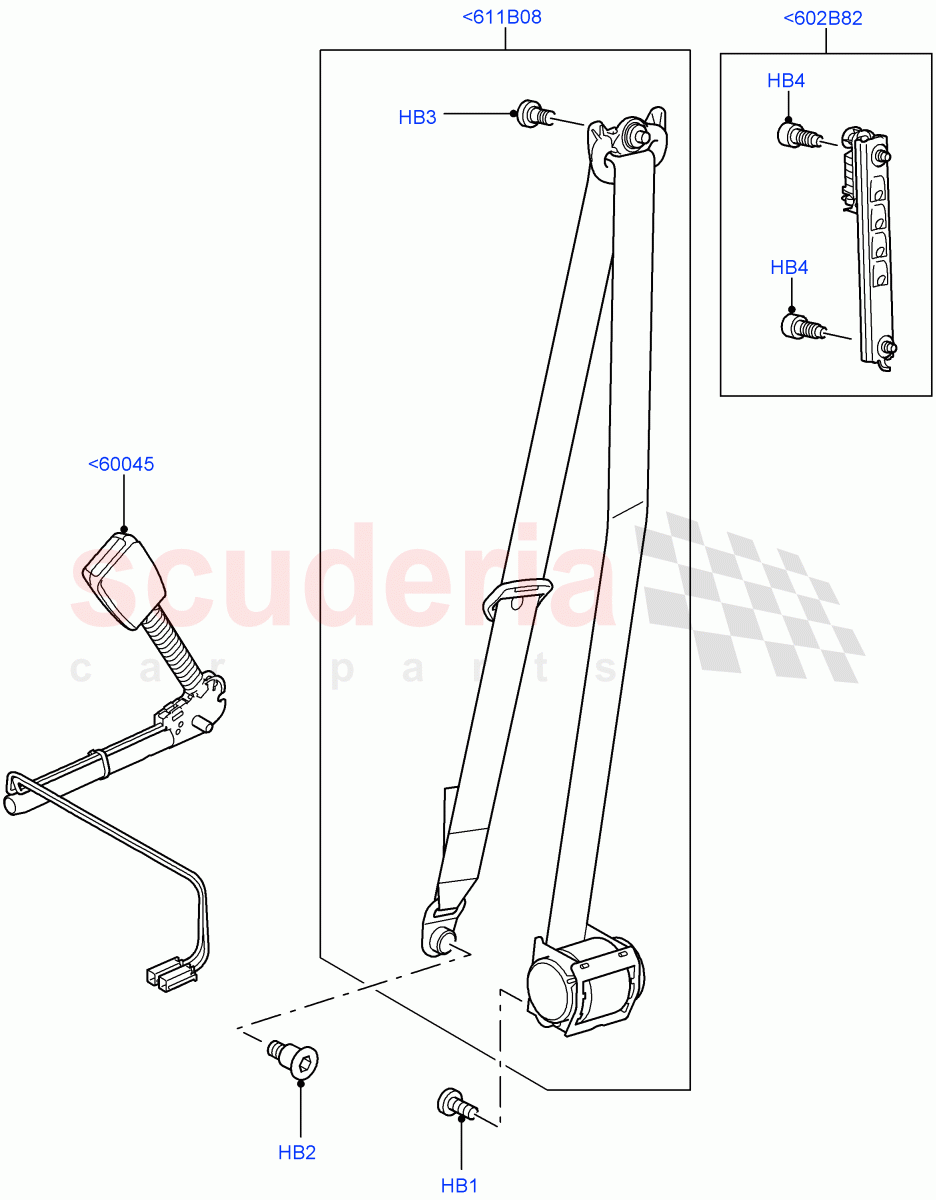

Front Seat Belts ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<602B82 LR009270
SEAT WITH HEIGHT ADJUST
From: AA000001 		- 2 Enquire
<611B08 LR009282
SEAT BELT
(+)"CDN/MEX/USA", LHD / RH, Black / From: AA000001 		- 1 Enquire
<611B08 LR009283
SEAT BELT
(-)"CDN/MEX/USA", LHD / RH, Black / From: AA000001 		- 1 Enquire
<611B08 LR009286
SEAT BELT
RHD / LH, Black / From: AA000001 		- 1 Enquire
<611B08 LR009284
SEAT BELT
RHD / RH, Black / From: AA000001 / To: AA520261 		- 1 Enquire
<611B08 LR009287
SEAT BELT
LHD / LH, Black / From: AA000001 / To: AA520261 		- 1 Enquire
<611B08 LR020242
SEAT BELT
LHD / LH, Black / From: AA520262 		- 1 Enquire
<611B08 LR020241
SEAT BELT
RHD / RH, Black / From: AA520262 		- 1 Enquire
<60045 LR009288
BUCKLE - SEAT BELT
RH, Black / From: AA000001 		- 1 Enquire
<60045 LR009289
BUCKLE - SEAT BELT
LH, Black / From: AA000001 		- 1 Enquire
HB1 EYG500230
BOLT - HEX.HEAD
Attaches Belt Retractor, M10 X 20MM / From: AA000001 		- 2 Enquire
HB2 EYG500030
BOLT
M10 X 28MM / From: AA000001 		- 2 Enquire
HB3 EYG500110
BOLT
M10, Seat Belt Height Adjuster, Torx / From: AA000001 		- 1 Enquire
HB4 EYG500120
BOLT
Seat Belt Height Adjuster / From: AA000001 		- 2 Enquire
