Side Trim (With B6 Level Armouring) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Side Trim (With B6 Level Armouring) ((V) FROMAA000001)

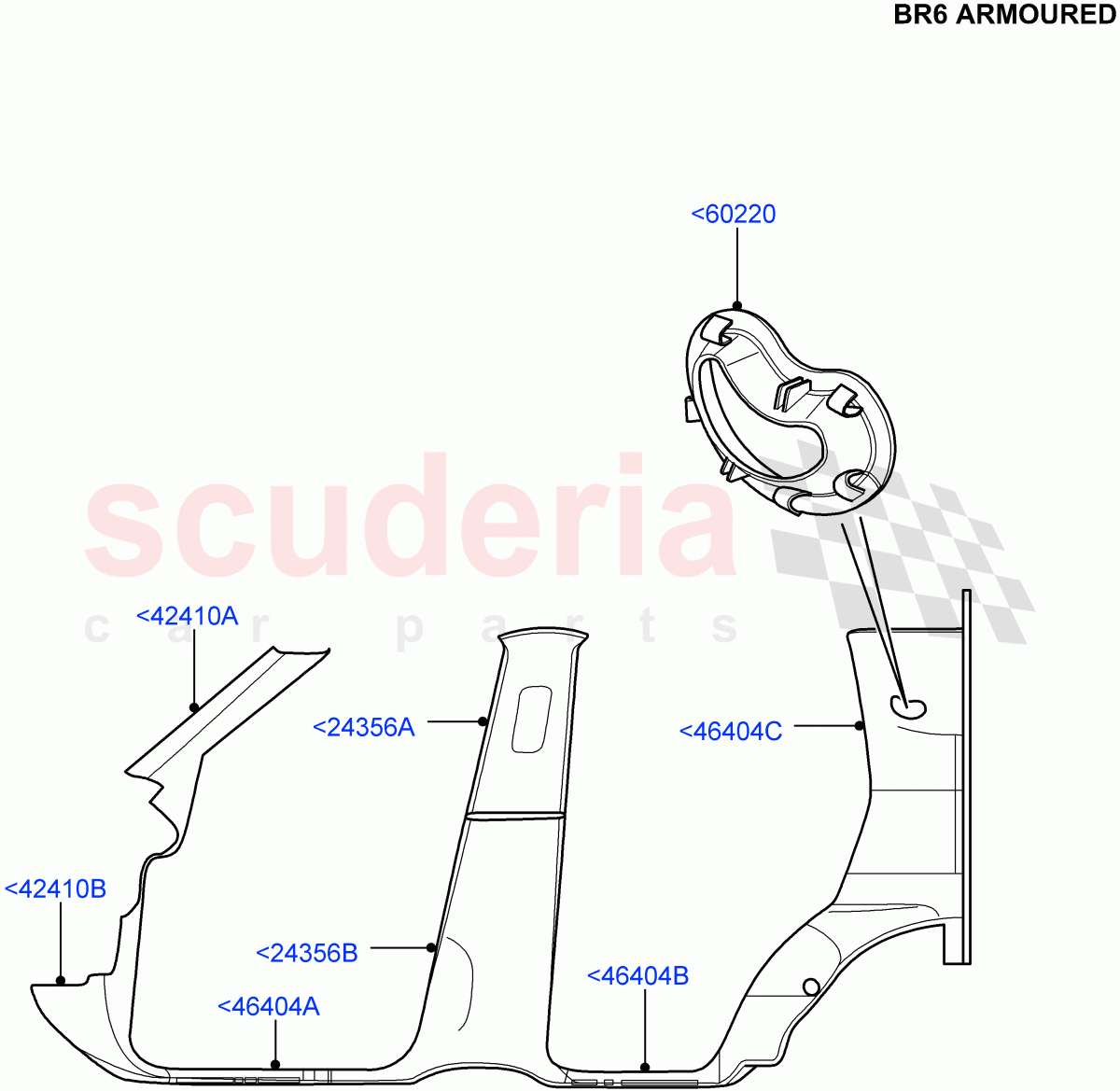

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012412	BEZEL - SEAT BELT GUIDE BRACKET	Enquire	To Order
	LR012413	BEZEL - SEAT BELT GUIDE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012401	PANEL - TRIM	Enquire	To Order
	LR012402	PANEL - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012261	PANEL - TRIM	Enquire	To Order
	LR012260	PANEL - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012418	MOULDING	Enquire	To Order
	LR012419	MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012420	MOULDING	Enquire	To Order
	LR012421	MOULDING	Enquire	To Order
	LR012422	MOULDING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012400	PANEL - TRIM	Enquire	To Order
	LR012399	PANEL - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012406	PANEL - REAR QUARTER	Enquire	To Order
	LR012405	PANEL - REAR QUARTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012424	PANEL - TRIM	Enquire	To Order
	LR012425	PANEL - TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<24356A	LR012401	PANEL - TRIM	LR012401 PANEL - TRIM RH, Requires VIN To Order, Upper / From: AA000001	-	1	Enquire
<24356A	LR012402	PANEL - TRIM	LR012402 PANEL - TRIM LH, Requires VIN To Order, Upper / From: AA000001	-	1	Enquire
<24356B	LR012261	PANEL - TRIM	LR012261 PANEL - TRIM LH, Lower, Requires VIN To Order / From: AA000001	-	1	Enquire
<24356B	LR012260	PANEL - TRIM	LR012260 PANEL - TRIM RH, Lower, Requires VIN To Order / From: AA000001	-	1	Enquire
<42410A	LR012418	MOULDING	LR012418 MOULDING RH, Requires VIN To Order, Upper / From: AA000001	-	1	Enquire
<42410A	LR012419	MOULDING	LR012419 MOULDING LH, Requires VIN To Order, Upper / From: AA000001	-	1	Enquire
<42410B	LR012420	MOULDING	LR012420 MOULDING LHD / RH, Lower, Requires VIN To Order / From: AA000001	-	1	Enquire
<42410B	LR012421	MOULDING	LR012421 MOULDING LHD / LH, Lower, Requires VIN To Order / From: AA000001	-	1	Enquire
<42410B	LR012422	MOULDING	LR012422 MOULDING RHD / RH, Lower, Requires VIN To Order / From: AA000001	-	1	Enquire
<42410B	LR012423	MOULDING	LR012423 MOULDING RHD / LH, Lower, Requires VIN To Order / From: AA000001	-	1	Enquire
<46404A	LR012400	PANEL - TRIM	LR012400 PANEL - TRIM LH, Front, Requires VIN To Order / From: AA000001	-	1	Enquire
<46404A	LR012399	PANEL - TRIM	LR012399 PANEL - TRIM RH, Front, Requires VIN To Order / From: AA000001	-	1	Enquire
<46404B	LR012406	PANEL - REAR QUARTER	LR012406 PANEL - REAR QUARTER LH, Rear, Requires VIN To Order / From: AA000001	-	1	Enquire
<46404B	LR012405	PANEL - REAR QUARTER	LR012405 PANEL - REAR QUARTER RH, Rear, Requires VIN To Order / From: AA000001	-	1	Enquire
<46404C	LR012424	PANEL - TRIM	LR012424 PANEL - TRIM RH, Requires VIN To Order / From: AA000001	-	1	Enquire
<46404C	LR012425	PANEL - TRIM	LR012425 PANEL - TRIM LH, Requires VIN To Order / From: AA000001	-	1	Enquire
<60220	LR012412	BEZEL - SEAT BELT GUIDE BRACKET	LR012412 BEZEL - SEAT BELT GUIDE BRACKET LH / From: AA000001	-	1	Enquire
<60220	LR012413	BEZEL - SEAT BELT GUIDE BRACKET	LR012413 BEZEL - SEAT BELT GUIDE BRACKET RH / From: AA000001	-	1	Enquire
