Find Your Part

Console - Floor (For Carrier Assy, External Components) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Console - Floor (For Carrier Assy, External Components) ((V) FROMAA000001)

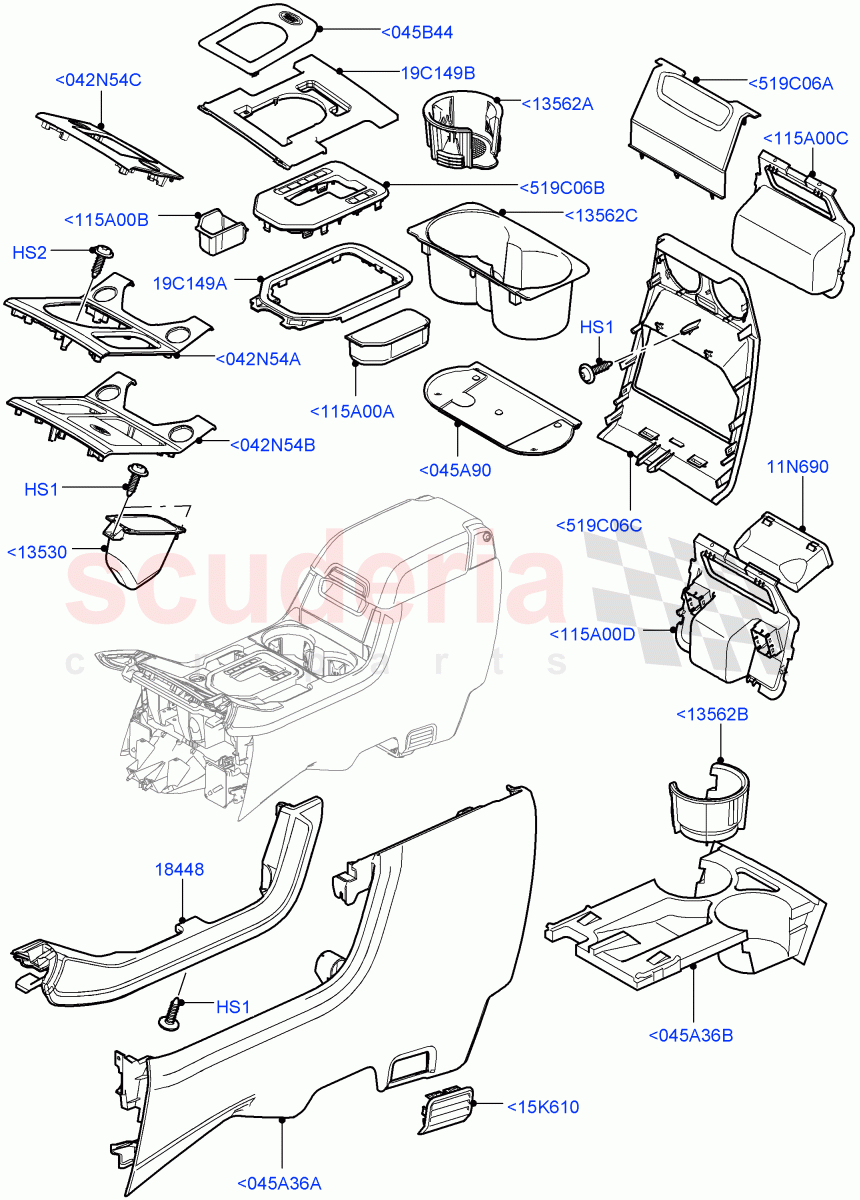

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYP500260	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018751	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013422	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order
	LR013423	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order
	LR013419	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013416	TRAY - UTILITY	Enquire	To Order
	LR019683	TRAY - UTILITY	Enquire	To Order
	LR024522	TRAY - UTILITY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FHY500050PVJ	COVER - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054317	PANEL - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038816	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FWW500160	HOLDER - CUP	Enquire	To Order
	LR021330	HOLDER - CUP	Enquire	To Order
	LR087454	HOLDER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FWW500070PVJ	HOLDER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013415	HOLDER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FHE500012PVJ	COVER - CONSOLE FIXING	Enquire	To Order
	LR008285	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013414	BEZEL - CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029919	BEZEL - CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013573	COVER - FRONT CONSOLE PANEL	Enquire	To Order
	LR013574	COVER - FRONT CONSOLE PANEL	Enquire	To Order
	LR013575	COVER - FRONT CONSOLE PANEL	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013451	COVER - FRONT CONSOLE PANEL	Enquire	To Order
	LR021356	COVER - FRONT CONSOLE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029762	COVER - FRONT CONSOLE PANEL	Enquire	To Order
	LR029763	COVER - FRONT CONSOLE PANEL	Enquire	To Order
	LR030680	COVER - FRONT CONSOLE PANEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013447	PANEL - CONSOLE	Enquire	To Order
	LR013448	PANEL - CONSOLE	Enquire	To Order
	LR013446	PANEL - CONSOLE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FJI500032PVJ	PANEL - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013465	BOX - STOWAGE	Enquire	To Order
	LR013467	BOX - STOWAGE	Enquire	To Order
	LR019679	BOX - STOWAGE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013466	BOX - STOWAGE	Enquire	To Order
	LR013468	BOX - STOWAGE	Enquire	To Order
	LR019680	BOX - STOWAGE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FHM500022PVJ	COMPARTMENT - STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FHM500060PVJ	COMPARTMENT - STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013417	COVER - FLOOR CONSOLE	Enquire	To Order
	LR013418	COVER - FLOOR CONSOLE	Enquire	To Order
	LR021550	COVER - FLOOR CONSOLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FJV500272PVJ	COVER - TRANSM. GEAR LEVER APERTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015492	COVER - FLOOR CONSOLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<15K610	FHE500012PVJ	COVER - CONSOLE FIXING	FHE500012PVJ COVER - CONSOLE FIXING Ebony Black/Ebony Black Interior / From: AA000001	-	2	Enquire
<15K610	LR008285	COVER	LR008285 COVER Almond / From: AA000001	-	2	Enquire
<042N54A	LR013573	COVER - FRONT CONSOLE PANEL	LR013573 COVER - FRONT CONSOLE PANEL 6 Speed Auto ZF 6HP26 Steptronic, Interior Satin Blk Wlnt Veneer, LHD / From: AA000001	-	1	Enquire
<042N54A	LR013574	COVER - FRONT CONSOLE PANEL	LR013574 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Interior Piano Black Veneer, LHD / From: AA000001	-	1	Enquire
<042N54A	LR013575	COVER - FRONT CONSOLE PANEL	LR013575 COVER - FRONT CONSOLE PANEL 6 Speed Auto ZF 6HP26 Steptronic, Interior Satin Blk Wlnt Veneer, RHD / From: AA000001	-	1	Enquire
<042N54A	LR013576	COVER - FRONT CONSOLE PANEL	LR013576 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Interior Piano Black Veneer, RHD / From: AA000001	-	1	Enquire
<042N54A	LR013457	COVER - FRONT CONSOLE PANEL	LR013457 COVER - FRONT CONSOLE PANEL Less Interior Veneer Pack, RHD, With Four Corner Air Suspension / Meteor Grey / From: AA000001 / To: AA520261	-	1	Enquire
<042N54A	LR013452	COVER - FRONT CONSOLE PANEL	LR013452 COVER - FRONT CONSOLE PANEL LHD, Less Interior Veneer Pack, With Four Corner Air Suspension / Meteor Grey / From: AA000001 / To: AA520261	-	1	Enquire
<042N54A	LR021354	COVER - FRONT CONSOLE PANEL	LR021354 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Less Interior Veneer Pack, RHD, With Four Corner Air Suspension / Meteor Grey / From: AA520262	-	1	Enquire
<042N54A	LR021355	COVER - FRONT CONSOLE PANEL	LR021355 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, LHD, Less Interior Veneer Pack, With Four Corner Air Suspension / Meteor Grey / From: AA520262	-	1	Enquire
<042N54A	LR023741	COVER - FRONT CONSOLE PANEL	LR023741 COVER - FRONT CONSOLE PANEL Interior Grand Ivory Veneer, LHD, Landmark Limited Edition / From: BA000001 / To: BA999999	-	1	Enquire
<042N54A	LR023742	COVER - FRONT CONSOLE PANEL	LR023742 COVER - FRONT CONSOLE PANEL Interior Grand Ivory Veneer, Landmark Limited Edition, RHD / From: BA000001 / To: BA999999	-	1	Enquire
<042N54A	LR037038	COVER - FRONT CONSOLE PANEL	LR037038 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Interior Stained Zebrano, LHD, Luxury Limited Edition / From: CA000001	-	1	Enquire
<042N54A	LR037039	COVER - FRONT CONSOLE PANEL	LR037039 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Interior Stained Zebrano, Luxury Limited Edition, RHD / From: CA000001	-	1	Enquire
<042N54A	LR021354	COVER - FRONT CONSOLE PANEL	LR021354 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Interior Trim - Meteor Finish, RHD / Meteor Grey / From: DA000001	-	1	Enquire
<042N54A	LR021355	COVER - FRONT CONSOLE PANEL	LR021355 COVER - FRONT CONSOLE PANEL 6 Speed Auto Transmission ZF 6HP28, Interior Trim - Meteor Finish, LHD / Meteor Grey / From: DA000001	-	1	Enquire
<042N54B	LR013451	COVER - FRONT CONSOLE PANEL	LR013451 COVER - FRONT CONSOLE PANEL With Standard Duty Coil Spring Susp / Meteor Grey / From: AA000001 / To: AA520261	-	1	Enquire
<042N54B	LR021356	COVER - FRONT CONSOLE PANEL	LR021356 COVER - FRONT CONSOLE PANEL With Standard Duty Coil Spring Susp / Meteor Grey / From: AA520262 / To: BA999999	-	1	Enquire
<042N54C	LR029762	COVER - FRONT CONSOLE PANEL	LR029762 COVER - FRONT CONSOLE PANEL 8 Speed Auto Trans ZF 8HP70 4WD, Interior Satin Blk Wlnt Veneer / From: CA000001	-	1	Enquire
<042N54C	LR029763	COVER - FRONT CONSOLE PANEL	LR029763 COVER - FRONT CONSOLE PANEL 8 Speed Auto Trans ZF 8HP70 4WD, Interior Piano Black Veneer / From: CA000001	-	1	Enquire
<042N54C	LR030680	COVER - FRONT CONSOLE PANEL	LR030680 COVER - FRONT CONSOLE PANEL 8 Speed Auto Trans ZF 8HP70 4WD, Less Interior Veneer Pack / From: CA000001 / To: CA618520	-	1	Enquire
<042N54C	LR035547	COVER - FRONT CONSOLE PANEL	LR035547 COVER - FRONT CONSOLE PANEL 8 Speed Auto Trans ZF 8HP70 4WD, Interior Cosmic Trim Veneer / From: CA618521	-	1	Enquire
<042N54C	LR037040	COVER - FRONT CONSOLE PANEL	LR037040 COVER - FRONT CONSOLE PANEL 8 Speed Auto Trans ZF 8HP70 4WD, Interior Stained Zebrano, Luxury Limited Edition / From: CA000001	-	1	Enquire
<042N54C	LR035547	COVER - FRONT CONSOLE PANEL	LR035547 COVER - FRONT CONSOLE PANEL 8 Speed Auto Trans ZF 8HP70 4WD, Interior Trim - Meteor Finish / From: DA000001	-	1	Enquire
<042N54C	LR043058	COVER - FLOOR CONSOLE	LR043058 COVER - FLOOR CONSOLE 8 Speed Auto Trans ZF 8HP70 4WD, Interior Grand Ivory Veneer / From: DA000001 / To: DA999999	-	1	Enquire
<042N54C	LR043058	COVER - FLOOR CONSOLE	LR043058 COVER - FLOOR CONSOLE Interior Grand Ivory Veneer / From: EA000001	-	1	Enquire
<045A36A	LR013447	PANEL - CONSOLE	LR013447 PANEL - CONSOLE Ebony Black/Ebony Black Interior / RH / From: AA000001 / To: AA520261	-	1	Enquire
<045A36A	LR013448	PANEL - CONSOLE	LR013448 PANEL - CONSOLE Almond / RH / From: AA000001 / To: AA520261	-	1	Enquire
<045A36A	LR013446	PANEL - CONSOLE	LR013446 PANEL - CONSOLE Ebony Black/Ebony Black Interior / LH / From: AA000001 / To: AA520261	-	1	Enquire
<045A36A	LR013445	PANEL - CONSOLE	LR013445 PANEL - CONSOLE Almond / LH / From: AA000001 / To: AA520261	-	1	Enquire
<045A36A	LR021357	PANEL - CONSOLE	LR021357 PANEL - CONSOLE Tan / RH / From: AA520262	-	1	Enquire
<045A36A	LR021358	PANEL - CONSOLE	LR021358 PANEL - CONSOLE Almond / RH / From: AA520262	-	1	Enquire
<045A36A	LR021359	PANEL - CONSOLE	LR021359 PANEL - CONSOLE Tan / LH / From: AA520262	-	1	Enquire
<045A36A	LR021360	PANEL - CONSOLE	LR021360 PANEL - CONSOLE Almond / LH / From: AA520262	-	1	Enquire
<045A36B	FJI500032PVJ	PANEL - CONSOLE	FJI500032PVJ PANEL - CONSOLE Ebony Black, Rear Cupholder / From: AA000001	-	1	Enquire
<045A90	LR054317	PANEL - BLANKING	LR054317 PANEL - BLANKING From: AA000001	-	1	Enquire
<045B44	LR038816	PANEL - CONSOLE - CENTRE FINISHER	LR038816 PANEL - CONSOLE - CENTRE FINISHER 8 Speed Auto Trans ZF 8HP70 4WD	-	1	Enquire
<115A00A	LR013465	BOX - STOWAGE	LR013465 BOX - STOWAGE RHD / Black / From: AA000001 / To: AA524908	-	1	Enquire
<115A00A	LR013467	BOX - STOWAGE	LR013467 BOX - STOWAGE LHD / Black / From: AA000001 / To: AA524908	-	1	Enquire
<115A00A	LR019679	BOX - STOWAGE	LR019679 BOX - STOWAGE RHD / From: AA524909	-	1	Enquire
<115A00A	LR019681	BOX - STOWAGE	LR019681 BOX - STOWAGE LHD / From: AA524909	-	1	Enquire
<115A00B	LR013466	BOX - STOWAGE	LR013466 BOX - STOWAGE RHD / Black / From: AA000001 / To: AA524908	-	1	Enquire
<115A00B	LR013468	BOX - STOWAGE	LR013468 BOX - STOWAGE LHD / Black / From: AA000001 / To: AA524908	-	1	Enquire
<115A00B	LR019680	BOX - STOWAGE	LR019680 BOX - STOWAGE RHD / From: AA524909	-	1	Enquire
<115A00B	LR019682	BOX - STOWAGE	LR019682 BOX - STOWAGE LHD / From: AA524909	-	1	Enquire
<115A00C	FHM500022PVJ	COMPARTMENT - STOWAGE	FHM500022PVJ COMPARTMENT - STOWAGE Ebony Black, Rear / From: AA000001	-	1	Enquire
<115A00D	FHM500060PVJ	COMPARTMENT - STOWAGE	FHM500060PVJ COMPARTMENT - STOWAGE With Heated Seats - Front/Rear / Ebony Black, Rear / From: AA000001	-	1	Enquire
<519C06A	LR013417	COVER - FLOOR CONSOLE	LR013417 COVER - FLOOR CONSOLE I/P Facia Contrast - Ebony Black / From: AA000001 / To: AA520261	-	1	Enquire
<519C06A	LR013418	COVER - FLOOR CONSOLE	LR013418 COVER - FLOOR CONSOLE I/P Facia Contrast-Arabica/Almond / From: AA000001 / To: AA520261	-	1	Enquire
<519C06A	LR021550	COVER - FLOOR CONSOLE	LR021550 COVER - FLOOR CONSOLE I/P Facia Contrast - Ebony Black / From: AA520262	-	1	Enquire
<519C06A	LR021551	COVER - FLOOR CONSOLE	LR021551 COVER - FLOOR CONSOLE I/P Facia Contrast-Arabica/Almond / From: AA520262	-	1	Enquire
<519C06B	FJV500272PVJ	COVER - TRANSM. GEAR LEVER APERTURE	FJV500272PVJ COVER - TRANSM. GEAR LEVER APERTURE 6 Speed Auto ZF 6HP26 Steptronic / Ebony Black, Transmission Control Selector Position / From: AA000001	-	1	Enquire
<519C06C	LR015492	COVER - FLOOR CONSOLE	LR015492 COVER - FLOOR CONSOLE Meteor Grey, Rear / From: AA000001	-	1	Enquire
<13530	LR013416	TRAY - UTILITY	LR013416 TRAY - UTILITY Black / From: AA000001 / To: AA524908	-	1	Enquire
<13530	LR019683	TRAY - UTILITY	LR019683 TRAY - UTILITY From: AA524909 / To: BA557097	-	1	Enquire
<13530	LR024522	TRAY - UTILITY	LR024522 TRAY - UTILITY From: BA557098	-	1	Enquire
<13562A	FWW500160	HOLDER - CUP	FWW500160 HOLDER - CUP Insert / From: AA000001 / To: AA520261	-	2	Enquire
<13562A	LR021330	HOLDER - CUP	LR021330 HOLDER - CUP From: AA520262 / To: GA838864	-	2	Enquire
<13562A	LR087454	HOLDER - CUP	LR087454 HOLDER - CUP From: GA838865	-	2	Enquire
<13562B	FWW500070PVJ	HOLDER - CUP	FWW500070PVJ HOLDER - CUP Insert / From: AA000001	-	2	Enquire
<13562C	LR013415	HOLDER - CUP	LR013415 HOLDER - CUP From: AA000001	-	1	Enquire
HS1	FYP500260	SCREW	FYP500260 SCREW Screw 4X14.5MM / From: AA000001	-	1	Enquire
HS2	LR018751	SCREW	LR018751 SCREW For Wood Part, M5 X 12MM / From: AA000001	-	2	Enquire
11N690	FHY500050PVJ	COVER - SWITCH	FHY500050PVJ COVER - SWITCH Less Power Point Plug / Ebony Black / From: AA000001	-	1	Enquire
19C149A	LR013414	BEZEL - CENTRE CONSOLE	LR013414 BEZEL - CENTRE CONSOLE 6 Speed Auto ZF 6HP26 Steptronic / Gearshift Lever, Noble / From: AA000001	-	1	Enquire
19C149B	LR029919	BEZEL - CENTRE CONSOLE	LR029919 BEZEL - CENTRE CONSOLE 8 Speed Auto Trans ZF 8HP70 4WD, Less Interior Decals / Meteor Grey / From: CA000001	-	1	Enquire
18448	LR013422	FINISHER - CENTRE FLOOR CONSOLE	LR013422 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Ebony Black / RH / From: AA000001 / To: AA531712	-	1	Enquire
18448	LR013423	FINISHER - CENTRE FLOOR CONSOLE	LR013423 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Nutmeg/Almond / RH, Almond / From: AA000001 / To: AA531712	-	1	Enquire
18448	LR013419	FINISHER - CENTRE FLOOR CONSOLE	LR013419 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Ebony Black / LH / From: AA000001 / To: AA531712	-	1	Enquire
18448	LR013421	FINISHER - CENTRE FLOOR CONSOLE	LR013421 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Nutmeg/Almond / LH, Almond / From: AA000001 / To: AA531712	-	1	Enquire
18448	LR021389	FINISHER - CENTRE FLOOR CONSOLE	LR021389 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Ebony Black / RH / From: AA531713 / To: BA571455	-	1	Enquire
18448	LR021390	FINISHER - CENTRE FLOOR CONSOLE	LR021390 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Nutmeg/Almond / RH, Almond / From: AA531713 / To: BA571455	-	1	Enquire
18448	LR021393	FINISHER - CENTRE FLOOR CONSOLE	LR021393 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Ebony Black / LH / From: AA531713 / To: BA571455	-	1	Enquire
18448	LR021397	FINISHER - CENTRE FLOOR CONSOLE	LR021397 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Nutmeg/Almond / LH, Almond / From: AA531713 / To: BA571455	-	1	Enquire
18448	LR029135	FINISHER - CENTRE FLOOR CONSOLE	LR029135 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Ebony Black / RH, Ebony / From: BA571456	-	1	Enquire
18448	LR029137	FINISHER - CENTRE FLOOR CONSOLE	LR029137 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast-Arabica/Almond / RH, Almond / From: BA571456	-	1	Enquire
18448	LR029139	FINISHER - CENTRE FLOOR CONSOLE	LR029139 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast - Ebony Black / LH, Ebony / From: BA571456	-	1	Enquire
18448	LR029142	FINISHER - CENTRE FLOOR CONSOLE	LR029142 FINISHER - CENTRE FLOOR CONSOLE I/P Facia Contrast-Arabica/Almond / LH, Almond / From: BA571456	-	1	Enquire
