Name: Fuel Tank & Related Parts (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001)
Rating: 5.0 (1 reviews)

View All

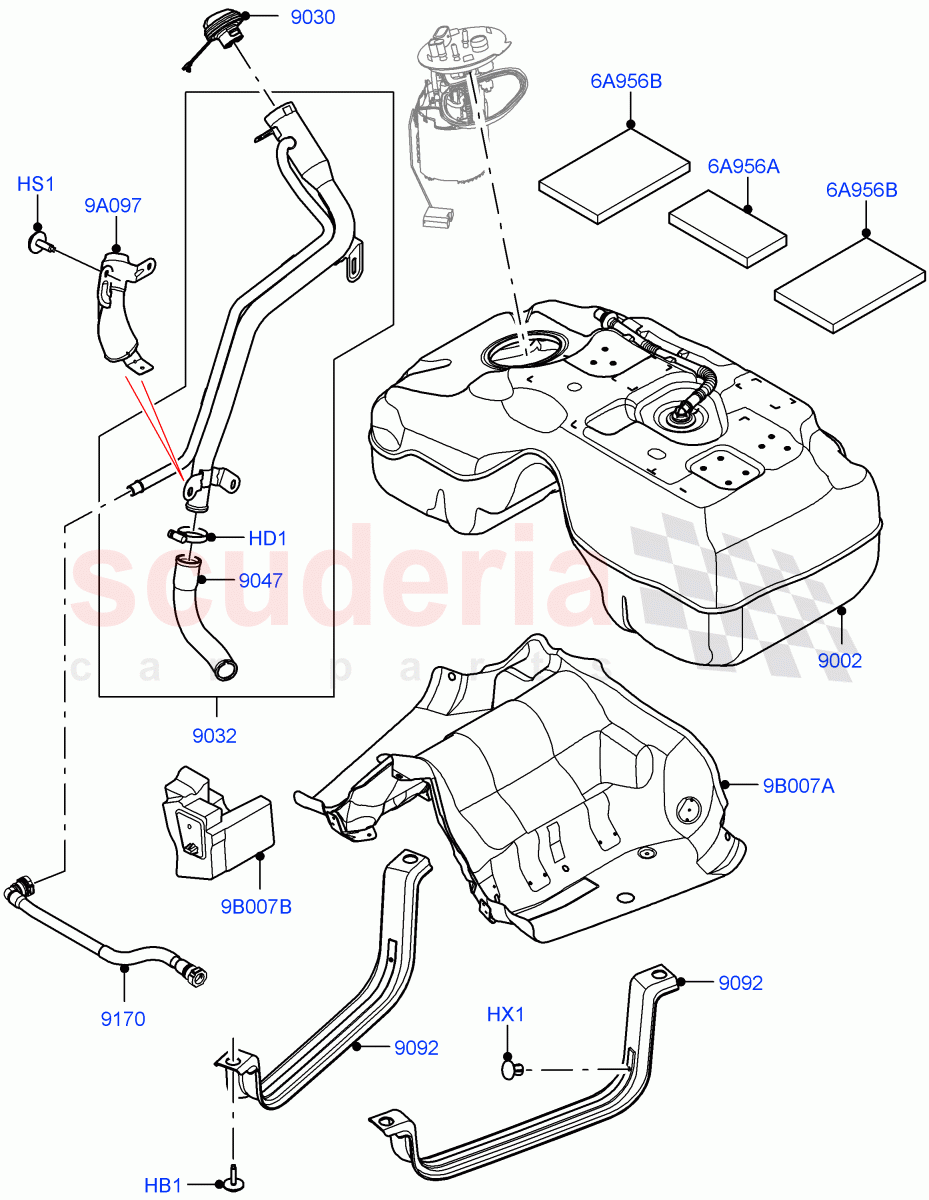

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115125	RETAINER - RIVET	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139186	TANK - FUEL	$800.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053666	CAP - FUEL TANK FILLER	$26.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126553	PIPE - FUEL FILLER	$139.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126524	HOSE - FILLER PIPE	$43.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126572	STRAP - FUEL TANK	$55.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126505	HOSE - VENT	$48.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126562	SHIELD	$47.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126577	FOAM PAD - ENERGY ABSORBING	$14.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126578	FOAM PAD - ENERGY ABSORBING	$21.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126573	SHIELD	$303.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139403	SHIELD	$28.94	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM / From: LT000001	$3.78	4
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: LT000001	$5.85	1
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex, Shield / From: LT000001 IN STOCK	$1.32	3
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: LT000001	$0.99	2
6A956A	LR126577	FOAM PAD - ENERGY ABSORBING	LR126577 FOAM PAD - ENERGY ABSORBING From: LT000001	$14.06	1
6A956B	LR126578	FOAM PAD - ENERGY ABSORBING	LR126578 FOAM PAD - ENERGY ABSORBING From: LT000001	$21.62	1
9A097	LR126562	SHIELD	LR126562 SHIELD Filler Pipe / From: LT000001	$47.06	1
9B007A	LR126573	SHIELD	LR126573 SHIELD Main / From: LT000001	$303.12	1
9B007B	LR139403	SHIELD	LR139403 SHIELD From: LT000001	$28.94	1
9002	LR139186	TANK - FUEL	LR139186 TANK - FUEL From: LT000001	$800.10	1
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER From: LT000001	$26.81	1
9032	LR126553	PIPE - FUEL FILLER	LR126553 PIPE - FUEL FILLER From: LT000001	$139.32	1
9047	LR126524	HOSE - FILLER PIPE	LR126524 HOSE - FILLER PIPE From: LT000001	$43.55	1
9092	LR126572	STRAP - FUEL TANK	LR126572 STRAP - FUEL TANK RH/LH / From: LT000001	$55.57	2
9170	LR126505	HOSE - VENT	LR126505 HOSE - VENT From: LT000001	$48.64	1

Fuel Tank & Related Parts (2.0L Aj20D4 Diesel Mid Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]
