Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Lines (Rear) (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.63 To Order
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE $0.58 To Order
Photo Part No Description Price (each) Stock
LR115338 TUBE - FUEL $182.25 To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES $42.34 To Order
Photo Part No Description Price (each) Stock
LR126564 TUBE - FUEL SUPPLY AND VAPOUR $179.29 To Order
LR140539 TUBE - FUEL SUPPLY AND VAPOUR $177.48 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.46 To Order
Photo Part No Description Price (each) Stock
LR115331 TUBE - AUXILIARY HEATER SUPPLY $40.88 To Order
Photo Part No Description Price (each) Stock
LR126566 TUBE - FUEL SUPPLY $42.84 To Order
View All

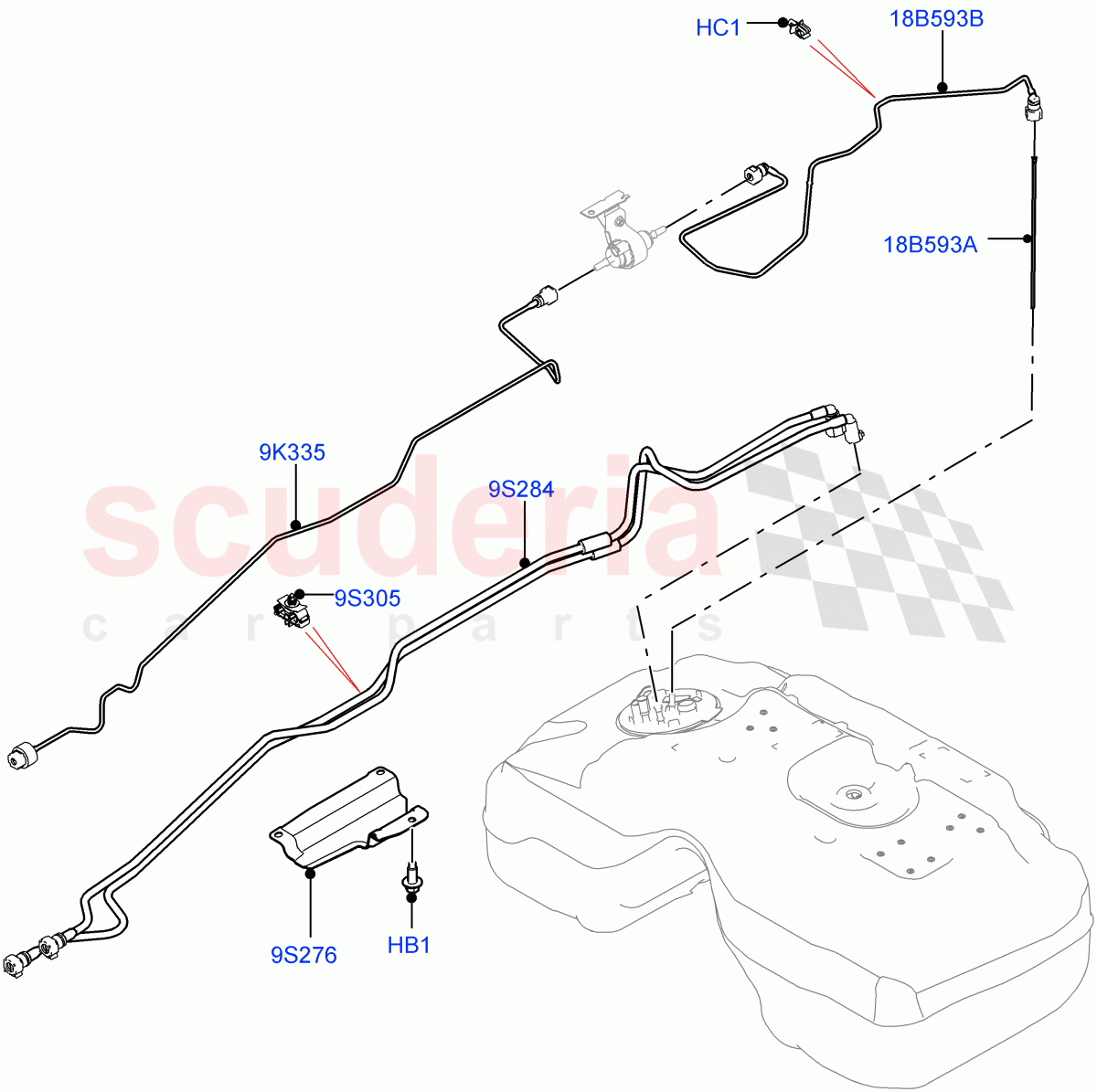

Fuel Lines (Rear) (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel LF PTA) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: LH000001 		$0.63 3
HC1 LR113126
CLIP - BRAKE PIPE
Fuel Heater W/Pk Heat With Remote / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: LH000001 		$0.58 1
9K335 LR115338
TUBE - FUEL
Fuel Heater W/Pk Heat With Remote / Pump To Heater / From: LH000001 		$182.25 1
9S276 LR115399
SHIELD - FUEL TUBES
Fuel Tank-Diesel / From: LH000001 		$42.34 1
9S284 LR126564
TUBE - FUEL SUPPLY AND VAPOUR
From: LH000001 / To: LH871565 		$179.29 1
9S284 LR140539
TUBE - FUEL SUPPLY AND VAPOUR
From: LH871566 		$177.48 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: LH000001 		$3.46 5
18B593A LR115331
TUBE - AUXILIARY HEATER SUPPLY
With Fuel Fired Heater / In Tank / From: LH000001 		$40.88 1
18B593B LR126566
TUBE - FUEL SUPPLY
Fuel Fired Heater With Park Heat / Tank To Pump / From: LH000001 		$42.84 1
