Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Less Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Less Emission Tank, 2.0L I4 DSL HIGH DOHC...

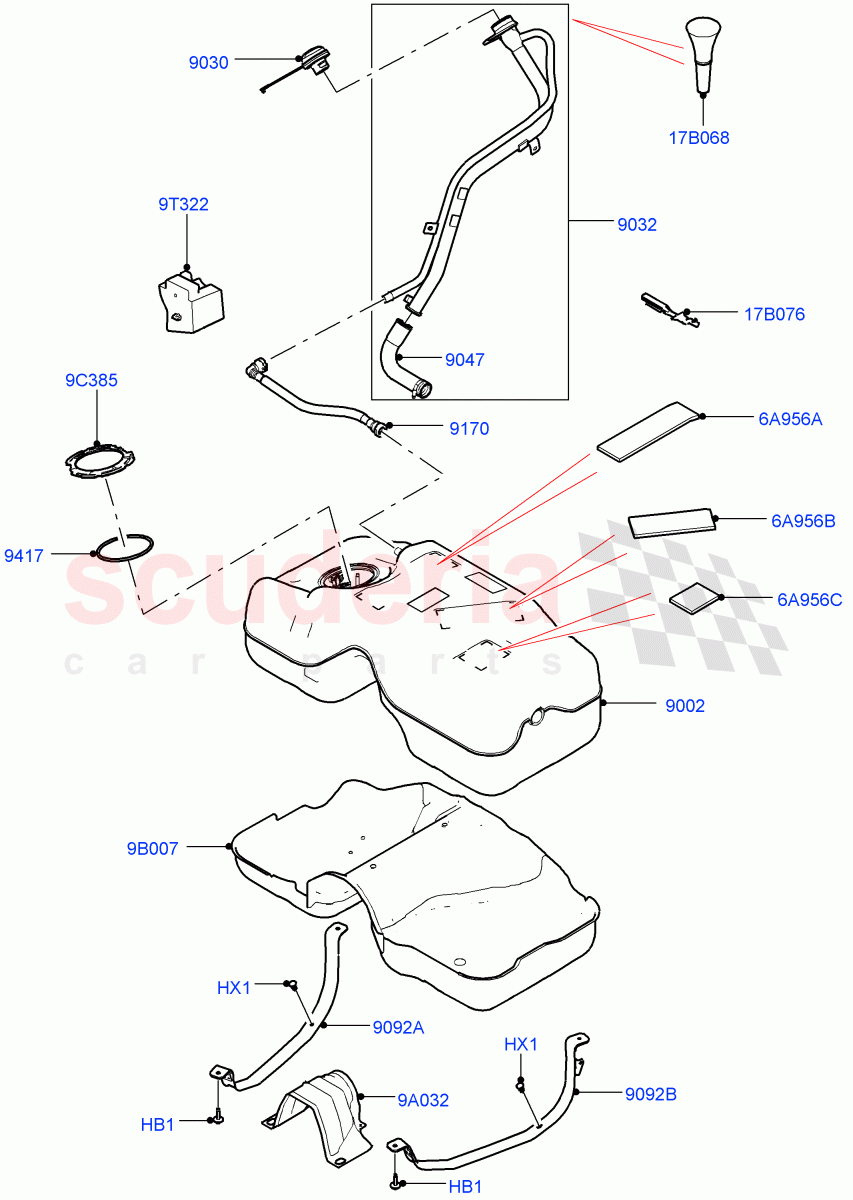

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	Enquire	To Order
	LR115125	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072675	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021560	CAP - FUEL TANK FILLER	Enquire	To Order
	LR021560	CAP - FUEL TANK FILLER	Enquire	To Order
	LR107022	CAP - FUEL TANK FILLER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082874	PIPE - FUEL FILLER	Enquire	To Order
	LR072672	PIPE - FUEL FILLER	Enquire	To Order
	LR083729	PIPE - FUEL FILLER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061055	HOSE - FILLER PIPE	Enquire	To Order
	LR061054	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060352	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060831	STRAP - FUEL TANK	Enquire	To Order
	LR090627	STRAP - FUEL TANK	Enquire	To Order
	LR094244	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063940	STRAP - FUEL TANK	Enquire	To Order
	LR090628	STRAP - FUEL TANK	Enquire	To Order
	LR094242	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077096	HEAT SHIELD - PROPSHAFT BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076312	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036710	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078568	MOULDING - FUEL TANK PROTECTION	Enquire	To Order
	LR079659	MOULDING - FUEL TANK PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060825	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060826	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG501020	BOLT	RYG501020 BOLT Fuel Tank Strap, M8 X 30MM / From: GH000001	-	4	Enquire
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GH000001 / To: JH762920	-	2	Enquire
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH762921	-	2	Enquire
6A956A	LR060825	FOAM PAD - ENERGY ABSORBING	LR060825 FOAM PAD - ENERGY ABSORBING From: GH000001	-	1	Enquire
6A956B	LR060826	FOAM PAD - ENERGY ABSORBING	LR060826 FOAM PAD - ENERGY ABSORBING From: GH000001	-	1	Enquire
6A956C	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING From: GH000001	-	1	Enquire
9A032	LR077096	HEAT SHIELD - PROPSHAFT BEARING	LR077096 HEAT SHIELD - PROPSHAFT BEARING From: GH000001	-	1	Enquire
9B007	LR076312	SHIELD - FUEL TANK	LR076312 SHIELD - FUEL TANK From: GH000001	-	1	Enquire
9C385	LR036710	RING - RETAINING	LR036710 RING - RETAINING From: GH000001	-	1	Enquire
9T322	LR078568	MOULDING - FUEL TANK PROTECTION	LR078568 MOULDING - FUEL TANK PROTECTION From: GH000001 / To: GH565261	-	1	Enquire
9T322	LR079659	MOULDING - FUEL TANK PROTECTION	LR079659 MOULDING - FUEL TANK PROTECTION From: GH565262	-	1	Enquire
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: GH000001	-	1	Enquire
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL From: GH000001	-	1	Enquire
9002	LR072675	TANK - FUEL	LR072675 TANK - FUEL From: GH000001	-	1	Enquire
9030	LR021560	CAP - FUEL TANK FILLER	LR021560 CAP - FUEL TANK FILLER From: GH000001 / To: HH999999	-	1	Enquire
9030	LR021560	CAP - FUEL TANK FILLER	LR021560 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / From: JH000001 / To: KH786055	-	1	Enquire
9030	LR107022	CAP - FUEL TANK FILLER	LR107022 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: JH000001 / To: KH802728	-	1	Enquire
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: KH802729 / To: MH889842	-	1	Enquire
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / From: KH786056	-	1	Enquire
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: MH889843	-	1	Enquire
9032	LR082874	PIPE - FUEL FILLER	LR082874 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / From: GH000001 / To: JH736267	-	1	Enquire
9032	LR072672	PIPE - FUEL FILLER	LR072672 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles / From: GH000001	-	1	Enquire
9032	LR083729	PIPE - FUEL FILLER	LR083729 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: GH000001 / To: JH731806	-	1	Enquire
9032	LR110258	PIPE - FUEL FILLER	LR110258 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: JH731807	-	1	Enquire
9032	LR110257	PIPE - FUEL FILLER	LR110257 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / From: JH736268	-	1	Enquire
9047	LR061055	HOSE - FILLER PIPE	LR061055 HOSE - FILLER PIPE Fuel Tank Filler Neck - All Nozzles / From: GH000001	-	1	Enquire
9047	LR061054	HOSE - FILLER PIPE	LR061054 HOSE - FILLER PIPE Fuel Tank Filler Neck - DMTL / From: GH000001	-	1	Enquire
9092A	LR060831	STRAP - FUEL TANK	LR060831 STRAP - FUEL TANK Front Disc And Caliper Size 17 / RH / From: GH000001 / To: HH999999	-	1	Enquire
9092A	LR090627	STRAP - FUEL TANK	LR090627 STRAP - FUEL TANK Front Disc And Caliper Size 18 / RH / From: HH000001 / To: HH999999	-	1	Enquire
9092A	LR094244	STRAP - FUEL TANK	LR094244 STRAP - FUEL TANK RH / From: JH000001	-	1	Enquire
9092B	LR063940	STRAP - FUEL TANK	LR063940 STRAP - FUEL TANK Front Disc And Caliper Size 17 / LH / From: GH000001 / To: HH999999	-	1	Enquire
9092B	LR090628	STRAP - FUEL TANK	LR090628 STRAP - FUEL TANK Front Disc And Caliper Size 18 / LH / From: HH000001 / To: HH999999	-	1	Enquire
9092B	LR094242	STRAP - FUEL TANK	LR094242 STRAP - FUEL TANK LH / From: JH000001	-	1	Enquire
9170	LR060352	HOSE - VENT	LR060352 HOSE - VENT From: GH000001	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring / From: GH000001	-	1	Enquire
