Fuel Tank & Related Parts (2.0L I4 Dsl Mid Dohc Aj200, With Diesel Exh Fluid Emission Tank, 2.0L I4...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR088949 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET Enquire To Order
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR082277 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER Enquire To Order
LR021560 CAP - FUEL TANK FILLER Enquire To Order
LR107022 CAP - FUEL TANK FILLER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082874 PIPE - FUEL FILLER Enquire To Order
LR072672 PIPE - FUEL FILLER Enquire To Order
LR083729 PIPE - FUEL FILLER Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061055 HOSE - FILLER PIPE Enquire To Order
LR061054 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR060352 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR060831 STRAP - FUEL TANK Enquire To Order
LR090627 STRAP - FUEL TANK Enquire To Order
LR094244 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR090628 STRAP - FUEL TANK Enquire To Order
LR094243 STRAP - FUEL TANK Enquire To Order
LR076314 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR077096 HEAT SHIELD - PROPSHAFT BEARING Enquire To Order
Photo Part No Description Price (each) Stock
LR112839 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR036710 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR078568 MOULDING - FUEL TANK PROTECTION Enquire To Order
LR079659 MOULDING - FUEL TANK PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR061062 PLUG - FLOOR PAN Enquire To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR060825 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR060826 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR072009 SHIELD - FUEL TANK Enquire To Order
LR122802 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR072008 SHIELD - FUEL TANK Enquire To Order
View All

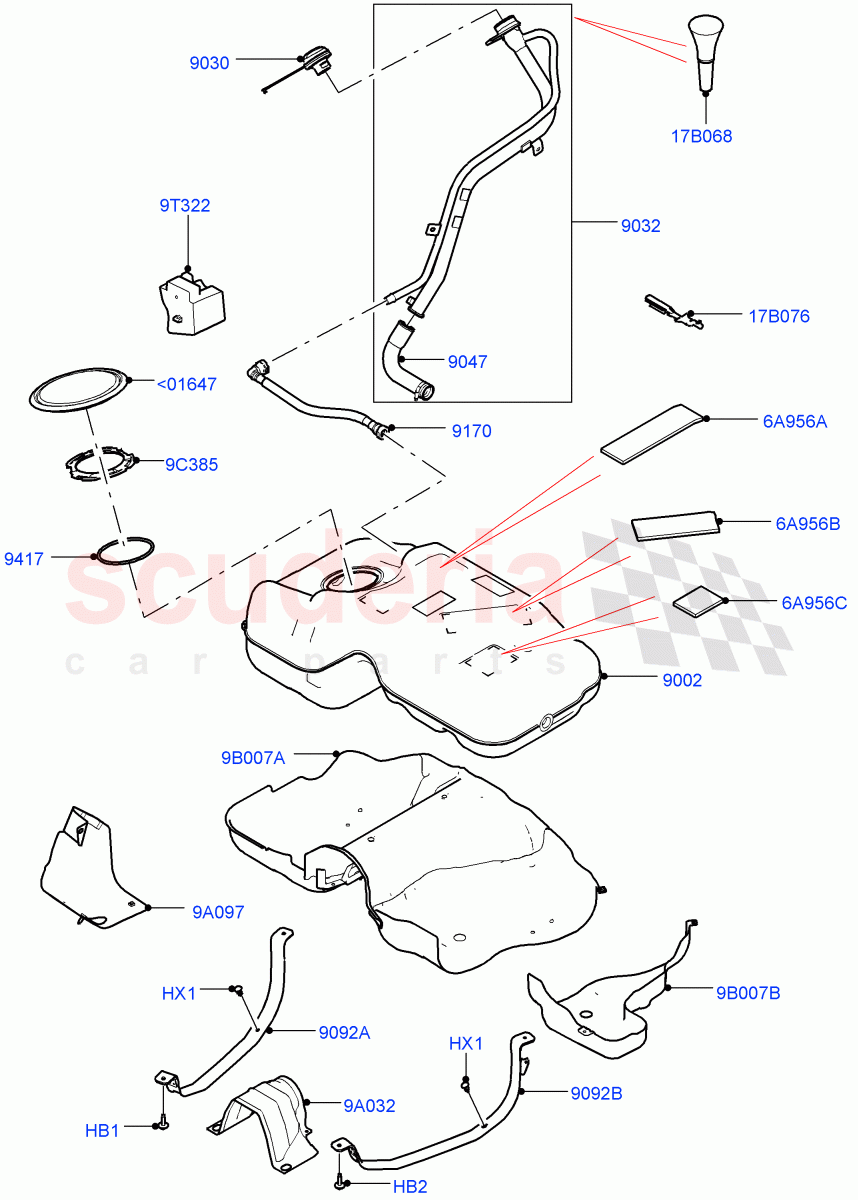

Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01647 LR061062
PLUG - FLOOR PAN
Cover, Plug / From: GH000001 		- 1 Enquire
HB1 RYG501020
BOLT
Fuel Tank Strap, M8 X 30MM / From: GH000001 		- 4 Enquire
HB2 LR088949
BOLT
M6 X 40MM / From: HH000001 		- 2 Enquire
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GH000001 / To: JH762920 		- 2 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH762921 		- 2 Enquire
6A956A LR060825
FOAM PAD - ENERGY ABSORBING
From: GH000001 		- 1 Enquire
6A956B LR060826
FOAM PAD - ENERGY ABSORBING
From: GH000001 		- 1 Enquire
6A956C LR025789
FOAM PAD - ENERGY ABSORBING
From: GH000001 		- 1 Enquire
9A032 LR077096
HEAT SHIELD - PROPSHAFT BEARING
From: GH000001 		- 1 Enquire
9A097 LR112839
SHIELD
From: GH000001 		- 1 Enquire
9B007A LR072009
SHIELD - FUEL TANK
From: GH000001 / To: KH804919 		- 1 Enquire
9B007A LR122802
SHIELD
From: KH804920 		- 1 Enquire
9B007B LR072008
SHIELD - FUEL TANK
From: GH000001 		- 1 Enquire
9C385 LR036710
RING - RETAINING
From: GH000001 		- 1 Enquire
9T322 LR078568
MOULDING - FUEL TANK PROTECTION
From: GH000001 / To: GH565261 		- 1 Enquire
9T322 LR079659
MOULDING - FUEL TANK PROTECTION
From: GH565262 		- 1 Enquire
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: GH000001 		- 1 Enquire
17B076 LR014047
RESTRICTOR - FUEL
From: GH000001 		- 1 Enquire
9002 LR082277
TANK - FUEL
From: GH000001 		- 1 Enquire
9030 LR021560
CAP - FUEL TANK FILLER
From: GH000001 / To: HH999999 		- 1 Enquire
9030 LR021560
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - All Nozzles / From: JH000001 / To: KH786055 		- 1 Enquire
9030 LR107022
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: JH000001 / To: KH802728 		- 1 Enquire
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KH802729 / To: MH889842 		- 1 Enquire
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: KH786056 		- 1 Enquire
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: MH889843 		- 1 Enquire
9032 LR082874
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: GH000001 / To: JH736267 		- 1 Enquire
9032 LR072672
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: GH000001 		- 1 Enquire
9032 LR083729
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: GH000001 / To: JH731806 		- 1 Enquire
9032 LR110258
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: JH731807 		- 1 Enquire
9032 LR110257
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: JH736268 		- 1 Enquire
9047 LR061055
HOSE - FILLER PIPE
Fuel Tank Filler Neck - All Nozzles / From: GH000001 		- 1 Enquire
9047 LR061054
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: GH000001 		- 1 Enquire
9092A LR060831
STRAP - FUEL TANK
Front Disc And Caliper Size 17 / RH / From: GH000001 / To: HH999999 		- 1 Enquire
9092A LR090627
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / RH / From: HH000001 / To: HH999999 		- 1 Enquire
9092A LR094244
STRAP - FUEL TANK
RH / From: JH000001 		- 1 Enquire
9092B LR090628
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / LH / From: HH000001 / To: HH999999 		- 1 Enquire
9092B LR094243
STRAP - FUEL TANK
LH / From: JH000001 		- 1 Enquire
9092B LR076314
STRAP - FUEL TANK
Front Disc And Caliper Size 17 / LH / From: GH000001 / To: HH999999 		- 1 Enquire
9170 LR060352
HOSE - VENT
From: GH000001 		- 1 Enquire
9417 LR117476
GASKET
O-Ring / From: GH000001 		- 1 Enquire
