Fuel Tank & Related Parts (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA,...

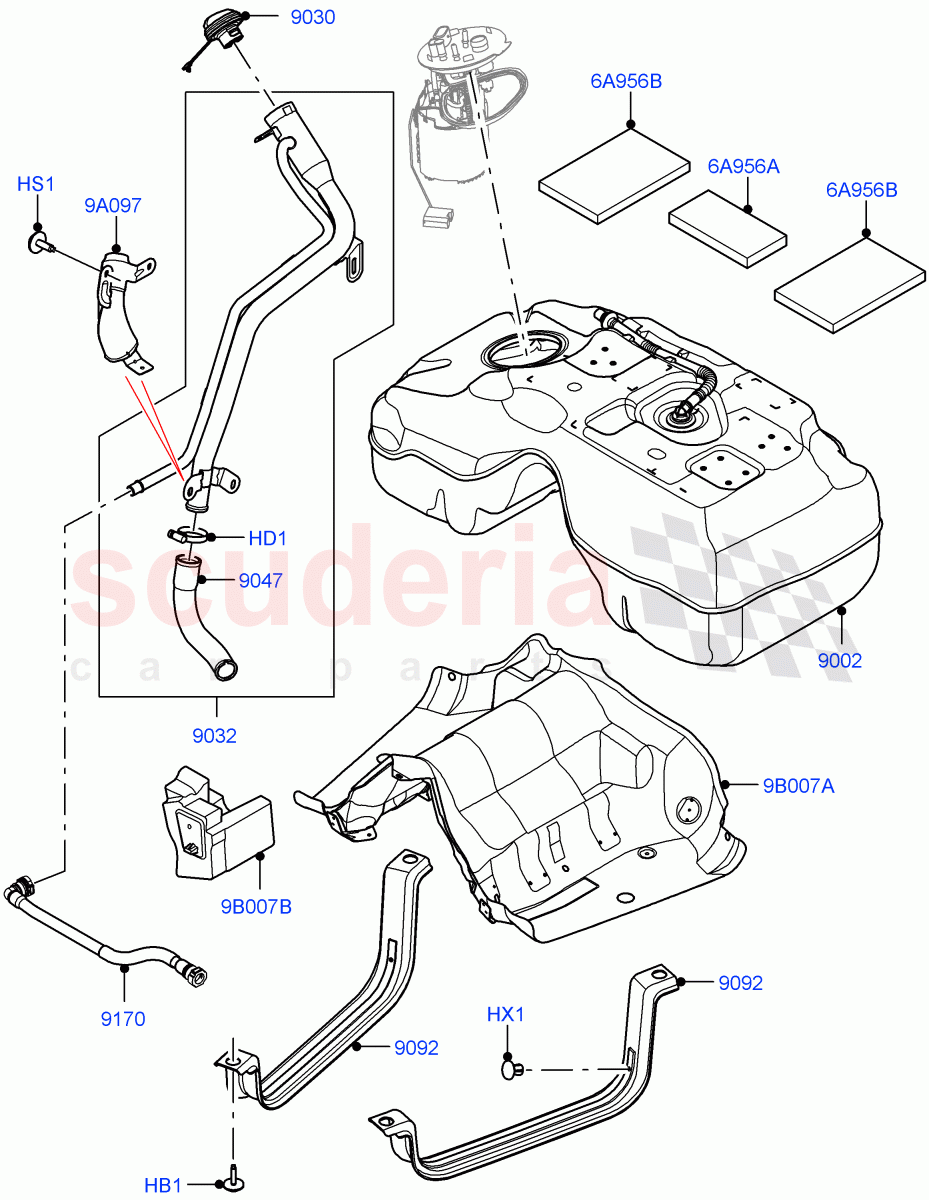

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115125	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126580	TANK - FUEL	Enquire	To Order
	LR139186	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053666	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126525	PIPE - FUEL FILLER	Enquire	To Order
	LR126553	PIPE - FUEL FILLER	Enquire	To Order
	LR126557	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126524	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126572	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126505	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126562	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126577	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126578	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126573	SHIELD	Enquire	To Order
	LR139070	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135602	SHIELD	Enquire	To Order
	LR139403	SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM / From: LH000001	-	4	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: LH000001	-	1	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex, Shield / From: LH000001	-	3	Enquire
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: LH000001	-	2	Enquire
6A956A	LR126577	FOAM PAD - ENERGY ABSORBING	LR126577 FOAM PAD - ENERGY ABSORBING From: LH000001	-	1	Enquire
6A956B	LR126578	FOAM PAD - ENERGY ABSORBING	LR126578 FOAM PAD - ENERGY ABSORBING From: LH000001	-	2	Enquire
9A097	LR126562	SHIELD	LR126562 SHIELD Filler Pipe / From: LH000001	-	1	Enquire
9B007A	LR126573	SHIELD	LR126573 SHIELD Main / From: LH000001 / To: LH857035	-	1	Enquire
9B007A	LR139070	SHIELD	LR139070 SHIELD Main / From: LH857036	-	1	Enquire
9B007B	LR135602	SHIELD	LR135602 SHIELD From: LH000001 / To: LH843418	-	1	Enquire
9B007B	LR139403	SHIELD	LR139403 SHIELD From: LH843419	-	1	Enquire
9002	LR126580	TANK - FUEL	LR126580 TANK - FUEL From: LH000001 / To: LH851096	-	1	Enquire
9002	LR139186	TANK - FUEL	LR139186 TANK - FUEL From: LH851097	-	1	Enquire
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER From: LH000001	-	1	Enquire
9032	LR126525	PIPE - FUEL FILLER	LR126525 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / From: LH000001	-	1	Enquire
9032	LR126553	PIPE - FUEL FILLER	LR126553 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles / From: LH000001	-	1	Enquire
9032	LR126557	PIPE - FUEL FILLER	LR126557 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: LH000001	-	1	Enquire
9047	LR126524	HOSE - FILLER PIPE	LR126524 HOSE - FILLER PIPE From: LH000001	-	1	Enquire
9092	LR126572	STRAP - FUEL TANK	LR126572 STRAP - FUEL TANK RH/LH / From: LH000001	-	2	Enquire
9170	LR126505	HOSE - VENT	LR126505 HOSE - VENT From: LH000001	-	1	Enquire
