Fuel Tank & Related Parts (1.5L Aj20P3 Petrol High Phev, Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High PHEV, Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR135788 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR135850 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR135618 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR135830 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR138720 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR135560 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR135561 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR145180 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR139167 STRAP - FUEL TANK Enquire To Order
LR145127 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR139166 STRAP - FUEL TANK Enquire To Order
LR145126 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR126562 SHIELD Enquire To Order
View All

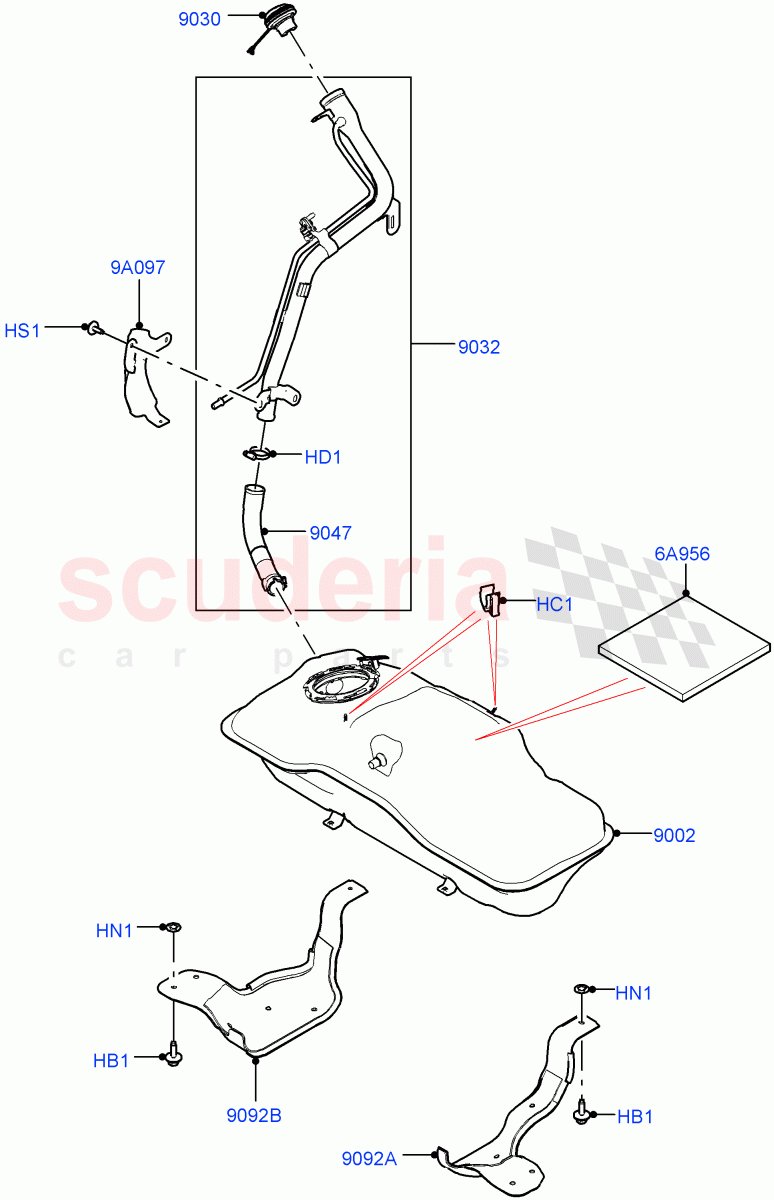

Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High PHEV, Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR135788
BOLT
M8 X 25MM / From: KG446857 		- 6 Enquire
HC1 LR135850
CLIP
Fuel Tank / From: KG446857 		- 2 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: KG446857 		- 1 Enquire
HN1 LR135618
NUT - HEX.
M8 / From: KG446857 		- 6 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: KG446857 		- 3 Enquire
6A956 LR145180
FOAM PAD - ENERGY ABSORBING
Tank PHEV / From: MG140569 		- 1 Enquire
9A097 LR126562
SHIELD
Filler Pipe / From: KG446857 		- 1 Enquire
9002 LR135830
TANK - FUEL
From: KG446857 		- 1 Enquire
9030 LR138720
CAP - FUEL TANK FILLER
From: KG446857 		- 1 Enquire
9032 LR135560
PIPE - FUEL FILLER
From: KG446857 		- 1 Enquire
9047 LR135561
HOSE - FILLER PIPE
Fuel Tank, Inlet / From: KG446857 		- 1 Enquire
9092A LR139167
STRAP - FUEL TANK
LH / From: KG446857 / To: KG449856 		- 1 Enquire
9092A LR145127
STRAP - FUEL TANK
LH / From: KG449857 		- 1 Enquire
9092B LR139166
STRAP - FUEL TANK
RH / From: KG446857 / To: KG449856 		- 1 Enquire
9092B LR145126
STRAP - FUEL TANK
RH / From: KG449857 		- 1 Enquire
