Fuel Lines (1.5L Aj20P3 Petrol High Phev, Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Lines (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
LR126054 SCREW $5.12 To Order
Photo Part No Description Price (each) Stock
LR135205 SHIELD - FUEL TUBES $309.33 To Order
Photo Part No Description Price (each) Stock
LR135204 PIPE - FUEL $271.76 To Order
LR143328 PIPE - FUEL $262.57 To Order
LR162781 PIPE - FUEL $271.76 To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP $3.46 To Order
Photo Part No Description Price (each) Stock
LR125411 TUBE - FUEL VAPOUR $205.46 To Order
Photo Part No Description Price (each) Stock
LR140312 TUBE - FUEL SUPPLY AND VAPOUR $199.62 To Order
View All

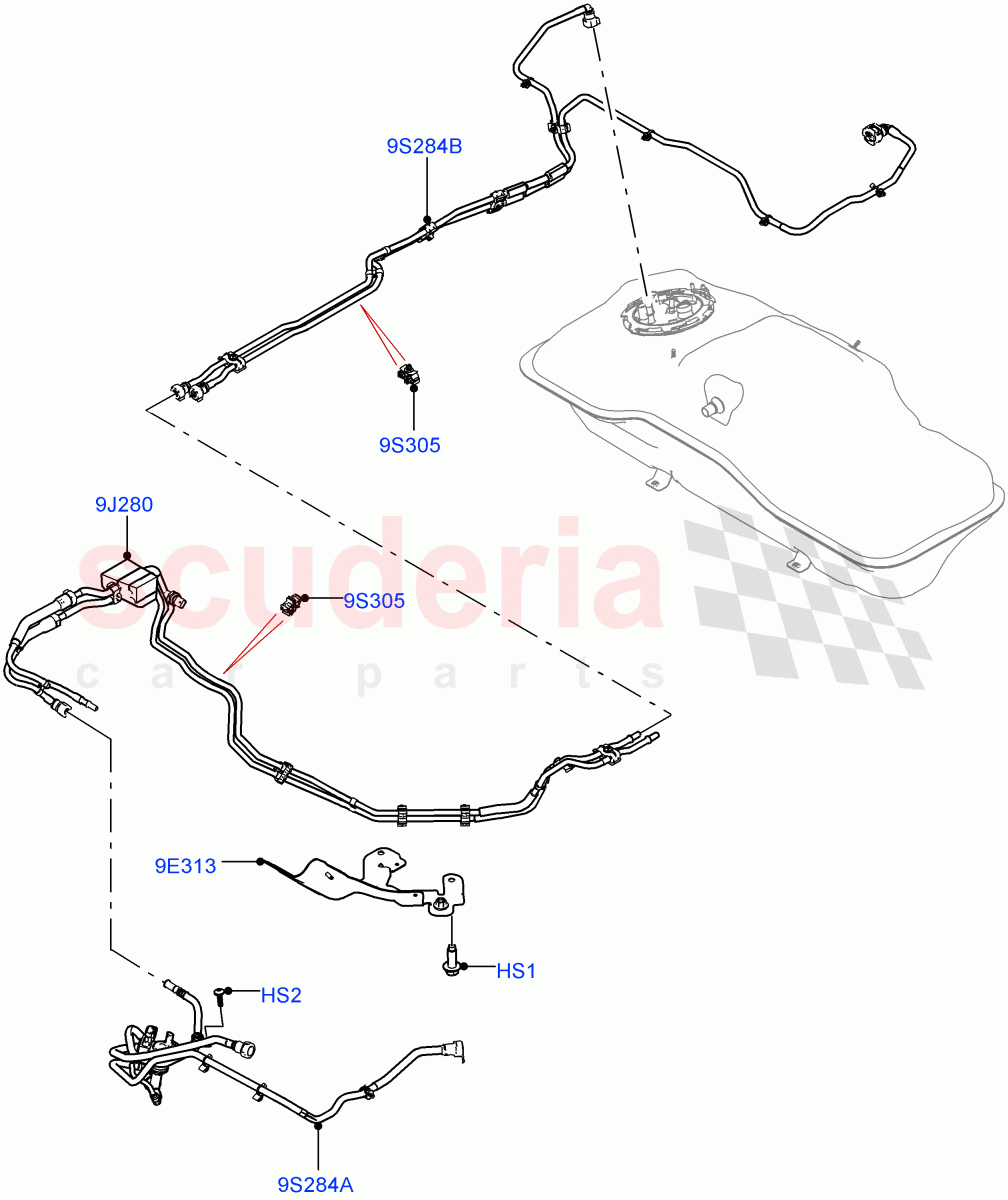

Fuel Lines (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM / From: LH000001 		$0.58 3
HS2 LR126054
SCREW
M6 X 20MM / From: LH000001 		$5.12 1
9E313 LR135205
SHIELD - FUEL TUBES
From: LH000001 		$309.33 1
9J280 LR135204
PIPE - FUEL
Front / From: LH000001 / To: LH870800 		$271.76 1
9J280 LR143328
PIPE - FUEL
Front / From: LH870801 / To: NH999999 		$262.57 1
9J280 LR162781
PIPE - FUEL
Front / From: PH000001 		$271.76 1
9S284A LR125411
TUBE - FUEL VAPOUR
Front, With Vapour Purge Valve / From: LH000001 		$205.46 1
9S284B LR140312
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: LH000001 		$199.62 1
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: LH000001 		$3.46 9
