Fuel Tank & Related Parts (1.5L Aj20P3 Petrol High, Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR146538 TANK - FUEL Enquire To Order
LR139184 TANK - FUEL Enquire To Order
LR139183 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
202123475 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR126521 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR126522 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR126572 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR126505 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR126562 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR126577 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR126578 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR126573 SHIELD Enquire To Order
LR139070 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR135602 SHIELD Enquire To Order
View All

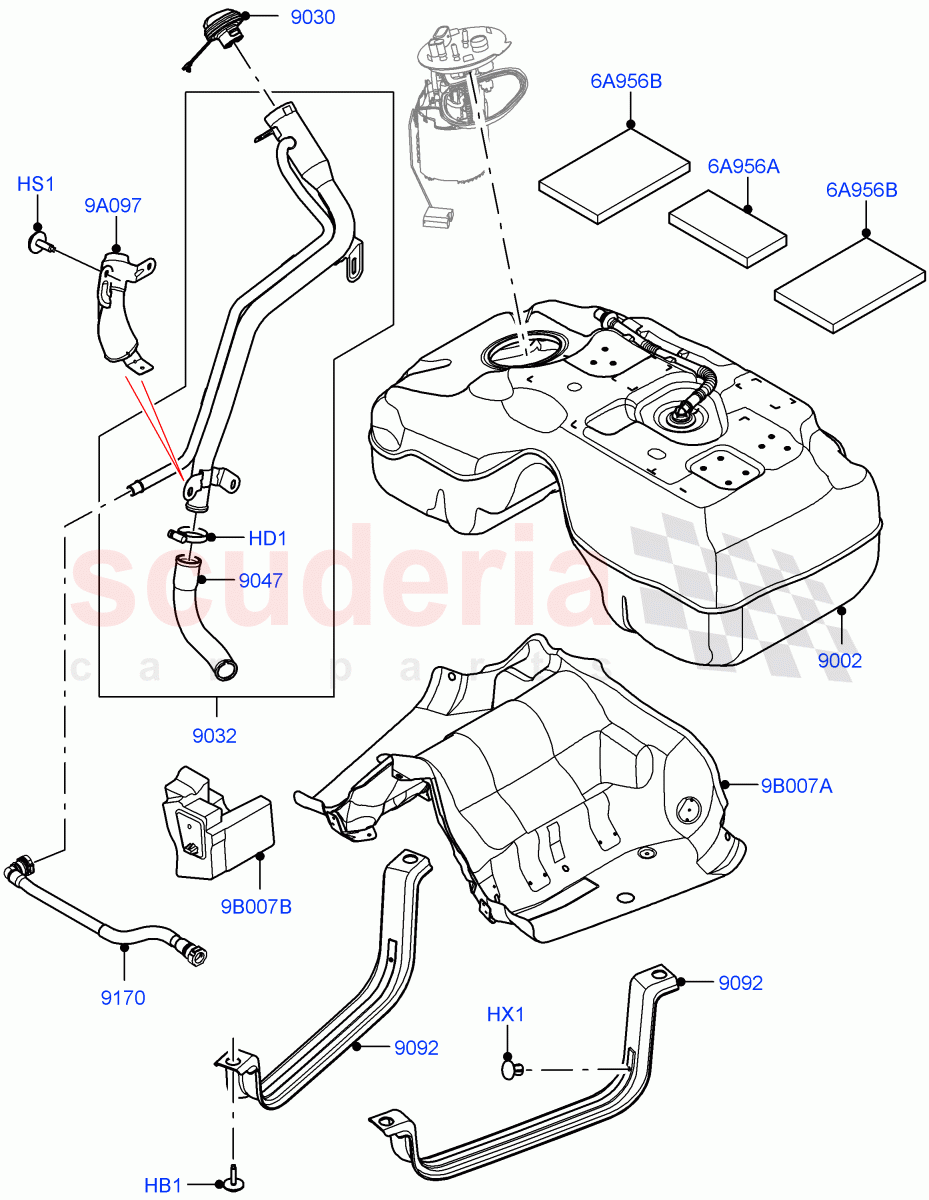

Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High, Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: KG446857 		- 4 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: KG446857 		- 1 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex, Shield / From: KG446857 		- 3 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: KG446857 		- 2 Enquire
6A956A LR126577
FOAM PAD - ENERGY ABSORBING
From: KG446857 		- 1 Enquire
6A956B LR126578
FOAM PAD - ENERGY ABSORBING
From: KG446857 		- 2 Enquire
9A097 LR126562
SHIELD
Filler Pipe / From: KG446857 		- 1 Enquire
9B007A LR126573
SHIELD
Main / From: KG446857 / To: MG142429 		- 1 Enquire
9B007A LR139070
SHIELD
Main / From: MG142430 		- 1 Enquire
9B007B LR135602
SHIELD
From: KG446857 		- 1 Enquire
9002 LR146538
TANK - FUEL
Pet Tank With Leak Det - Lrg Filter / From: KG446857 		- 1 Enquire
9002 LR139184
TANK - FUEL
Pet Tank W/O Leak Det - Std Filter / From: KG446857 		- 1 Enquire
9002 LR139183
TANK - FUEL
Petrol Tank With Leak Detection / From: KG446857 		- 1 Enquire
9030 202123475
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: KG446857 		- 1 Enquire
9032 LR126521
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: KG446857 		- 1 Enquire
9047 LR126522
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: KG446857 		- 1 Enquire
9092 LR126572
STRAP - FUEL TANK
RH/LH / From: KG446857 		- 2 Enquire
9170 LR126505
HOSE - VENT
From: KG446857 		- 1 Enquire
