Name: Carbon Canister (1.5L AJ20P3 Petrol High PHEV, Tank PHEV Less DMTL) ((V) FROMPH000001)
Rating: 4.7 (1 reviews)

View All

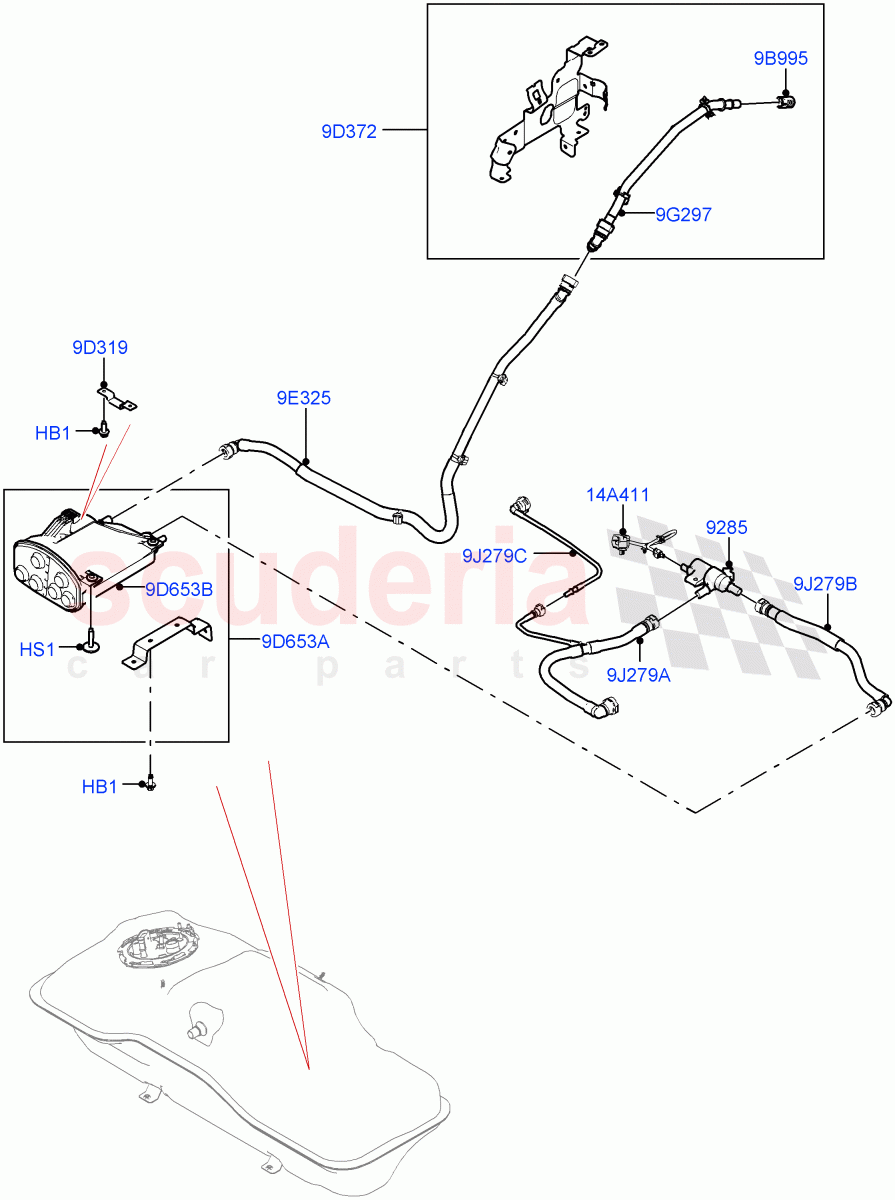

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126M	BOLT	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135214	VALVE - NON RETURN	$267.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160424	FILTER - FUEL	$8.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135546	BRACKET	$39.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167104	HOSE - FUEL VAPOUR	$511.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145274	HOSE - FUEL	$53.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167105	Hose - Fuel Vapour	$44.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134448	LINK	$82.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135544	CANNISTER - FUEL VAPOUR STORE	$456.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	$243.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135825	TUBE - VENTILATION	$175.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135824	TUBE - VENTILATION	$165.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135545	TUBE - VENTILATION	$167.47	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126M	BOLT	FS106126M BOLT Hexagonal Head, M6 x 12MM / From: PH000001	$1.12	4
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: PH000001	$4.03	2
9B995	LR160424	FILTER - FUEL	LR160424 FILTER - FUEL From: PH000001	$8.51	1
9D319	LR135546	BRACKET	LR135546 BRACKET From: PH000001	$39.67	1
9D372	LR167104	HOSE - FUEL VAPOUR	LR167104 HOSE - FUEL VAPOUR Complete Assembly / From: PH000001	$511.90	1
9D653A	LR135544	CANNISTER - FUEL VAPOUR STORE	LR135544 CANNISTER - FUEL VAPOUR STORE With Bracket / From: PH000001	$456.93	1
9D653B	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM From: PH000001	$243.00	1
9E325	LR145274	HOSE - FUEL	LR145274 HOSE - FUEL Rear / From: PH000001	$53.76	1
9G297	LR167105	Hose - Fuel Vapour	LR167105 Hose - Fuel Vapour From: PH000001	$44.25	1
9J279A	LR135825	TUBE - VENTILATION	LR135825 TUBE - VENTILATION Fuel Tank / From: PH000001	$175.48	1
9J279B	LR135824	TUBE - VENTILATION	LR135824 TUBE - VENTILATION Charcoal Cannister / From: PH000001	$165.79	1
9J279C	LR135545	TUBE - VENTILATION	LR135545 TUBE - VENTILATION From: PH000001	$167.47	1
14A411	LR134448	LINK	LR134448 LINK From: PH000001	$82.53	1
9285	LR135214	VALVE - NON RETURN	LR135214 VALVE - NON RETURN From: PH000001	$267.99	1

Carbon Canister (1.5L Aj20P3 Petrol High Phev, Tank Phev Less Dmtl) ((V) Fromph000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]
