Name: Fuel Tank & Related Parts (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001)
Rating: 4.7 (1 reviews)

View All

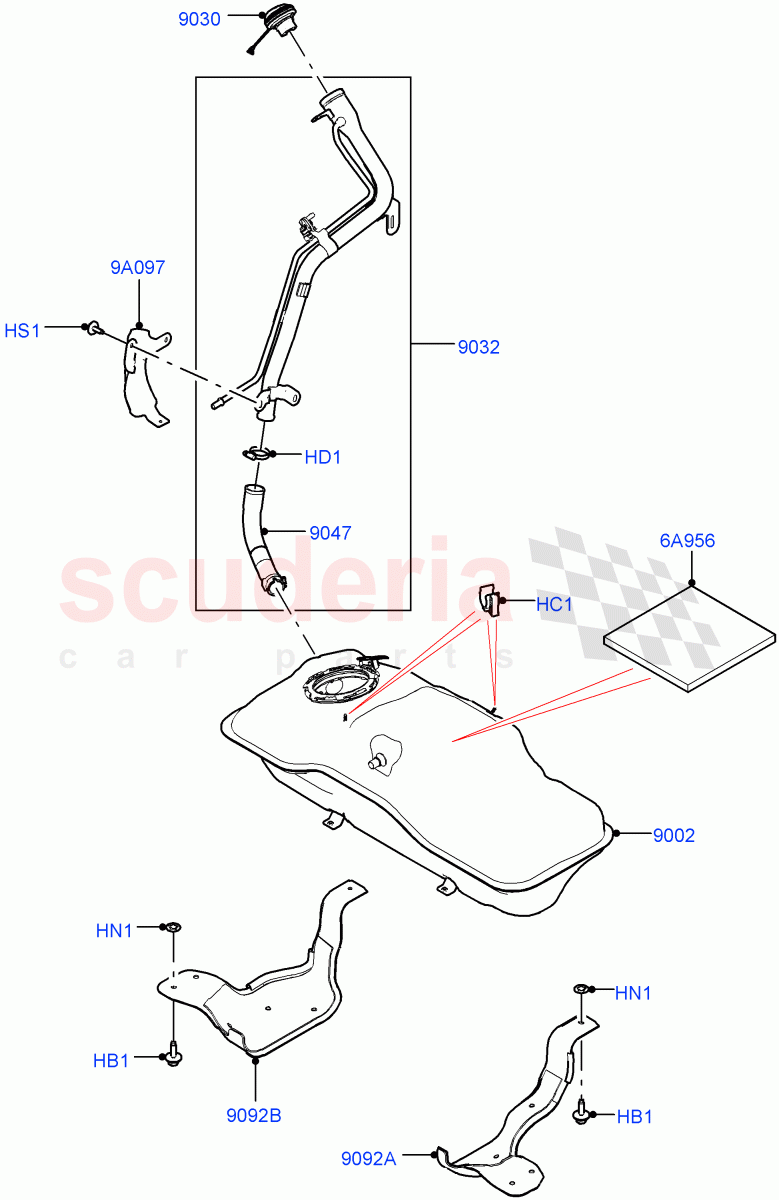

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR135788	BOLT	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135850	CLIP	$6.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135618	NUT - HEX.	$8.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR135830	TANK - FUEL	$1,157.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138720	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135560	PIPE - FUEL FILLER	$313.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135561	HOSE - FILLER PIPE	$83.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145180	FOAM PAD - ENERGY ABSORBING	$35.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126562	SHIELD	$47.06	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR135788	BOLT	LR135788 BOLT M8 X 25MM / From: LH000001	$1.51	6
HC1	LR135850	CLIP	LR135850 CLIP Fuel Tank / From: LH000001	$6.38	2
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: LH000001	$5.85	1
HN1	LR135618	NUT - HEX.	LR135618 NUT - HEX. M8 / From: LH000001	$8.56	6
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: LH000001 IN STOCK	$1.32	3
6A956	LR145180	FOAM PAD - ENERGY ABSORBING	LR145180 FOAM PAD - ENERGY ABSORBING From: MH902323	$35.44	1
9A097	LR126562	SHIELD	LR126562 SHIELD From: LH000001	$47.06	1
9002	LR135830	TANK - FUEL	LR135830 TANK - FUEL From: LH000001	$1,157.63	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER From: LH000001	$37.60	1
9032	LR135560	PIPE - FUEL FILLER	LR135560 PIPE - FUEL FILLER From: LH000001	$313.61	1
9047	LR135561	HOSE - FILLER PIPE	LR135561 HOSE - FILLER PIPE Fuel Tank, Inlet / From: LH000001	$83.20	1
9092A	LR139167	STRAP - FUEL TANK	LR139167 STRAP - FUEL TANK LH / From: LH000001 / To: LH871260	$124.06	1
9092A	LR145127	STRAP - FUEL TANK	LR145127 STRAP - FUEL TANK LH / From: LH871261	$124.06	1
9092B	LR139166	STRAP - FUEL TANK	LR139166 STRAP - FUEL TANK RH / From: LH000001 / To: LH871260	$137.46	1
9092B	LR145126	STRAP - FUEL TANK	LR145126 STRAP - FUEL TANK RH / From: LH871261	$137.46	1

Fuel Tank & Related Parts (1.5L Aj20P3 Petrol High Phev, Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]
