Fuel Lines (1.5L Aj20P3 Petrol High, Halewood (Uk)) ((V) Frommh000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Lines (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR089197 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR133032 SHIELD - FUEL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR139949 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR139954 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR115338 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR126845 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR140537 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR126491 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR162697 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR115331 TUBE - AUXILIARY HEATER SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR126566 TUBE - FUEL SUPPLY Enquire To Order
View All

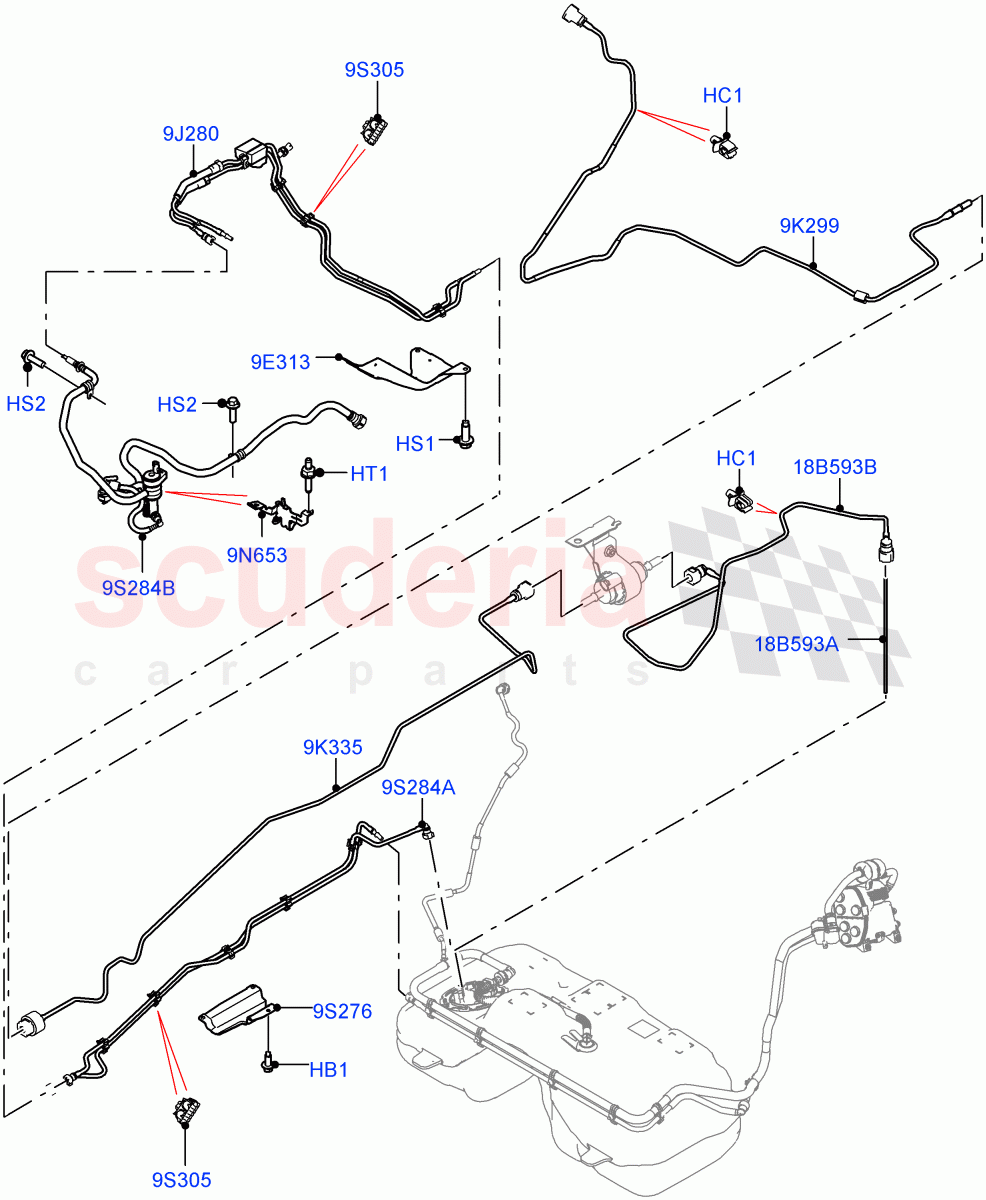

Fuel Lines (1.5L AJ20P3 Petrol High, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: MH000001 		- 3 Enquire
HC1 LR113126
CLIP - BRAKE PIPE
Fuel Heater W/Pk Heat With Remote / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single / From: MH000001 		- 6 Enquire
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM / From: MH000001 		- 3 Enquire
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MH000001 		- 2 Enquire
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: MH000001 		- 1 Enquire
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: MH000001 		- 1 Enquire
9J280 LR139949
PIPE - FUEL
Front / From: MH000001 		- 1 Enquire
9K299 LR139954
PIPE - FUEL
Fuel Fired Heater With Park Heat / To Fuel Fired Heater / From: MH000001 		- 1 Enquire
9K335 LR115338
TUBE - FUEL
Fuel Heater W/Pk Heat With Remote / Pump To Heater / From: MH000001 		- 1 Enquire
9N653 LR126845
BRACKET - FUEL TUBE SUPPORT
Purge Valve To Carrier / From: MH000001 		- 1 Enquire
9S276 LR115399
SHIELD - FUEL TUBES
Rear / From: MH000001 		- 1 Enquire
9S284A LR140537
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: MH000001 		- 1 Enquire
9S284B LR126491
TUBE - FUEL SUPPLY AND VAPOUR
Front / From: MH000001 / To: NH905936 		- 1 Enquire
9S284B LR162697
TUBE - FUEL VAPOUR
Front / From: NH905937 		- 1 Enquire
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: MH000001 		- 1 Enquire
18B593A LR115331
TUBE - AUXILIARY HEATER SUPPLY
Fuel Heater W/Pk Heat With Remote / In Tank / From: MH000001 		- 1 Enquire
18B593B LR126566
TUBE - FUEL SUPPLY
With Fuel Fired Heater / Tank To Pump / From: MH000001 		- 1 Enquire
