Heater/Air Cond.assy And Components ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Heater/Air Cond.Assy And Components ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JEC501400 HEATER $423.84 To Order
JEC501410 HEATER $460.93 To Order
JEC501420 HEATER $1,136.75 To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JQL500010 SENSOR $59.36 To Order
LR036309 SENSOR - HEATER TEMPERATURE CONTROL $59.66 To Order
Photo Part No Description Price (each) Stock
JQL500020 BRACKET - RESISTOR $19.06 To Order
Photo Part No Description Price (each) Stock
JQD500070 VALVE - EVAPORATOR EXPANSION $467.74 To Order
Photo Part No Description Price (each) Stock
JMJ500010 HEATER $16.52 To Order
Photo Part No Description Price (each) Stock
JEP500080 HEATER - LESS RADIATOR $206.95 To Order
LR032072 HEATER - LESS RADIATOR $1,378.60 To Order
LR020952 HEATER - LESS RADIATOR $1,371.36 To Order
Photo Part No Description Price (each) Stock
JQS500080 GROMMET $16.86 To Order
Photo Part No Description Price (each) Stock
JFG500020 GEAR - AIR DISTRIBUTION $10.59 To Order
Photo Part No Description Price (each) Stock
JGO500030 LEVER $8.06 To Order
Photo Part No Description Price (each) Stock
JYF500010 WASHER $9.94 To Order
Photo Part No Description Price (each) Stock
JYP500060 SCREW $3.61 To Order
Photo Part No Description Price (each) Stock
JGO500040 LEVER $9.55 To Order
Photo Part No Description Price (each) Stock
JYC500070 CLIP $3.65 To Order
Photo Part No Description Price (each) Stock
JYP500070 SCREW $7.62 To Order
Photo Part No Description Price (each) Stock
JYC500080 CLIP $18.71 To Order
Photo Part No Description Price (each) Stock
JZB500020 SEAL - VALVE $18.30 To Order
Photo Part No Description Price (each) Stock
JZB500030 SEAL $27.09 To Order
Photo Part No Description Price (each) Stock
JZB500040 SEAL $16.25 To Order
Photo Part No Description Price (each) Stock
JZB500050 SEAL $13.56 To Order
Photo Part No Description Price (each) Stock
PEU500170 BRACKET - HEATER MOUNTING $44.73 To Order
Photo Part No Description Price (each) Stock
JQS500090 GROMMET $1.86 To Order
LR020949 GROMMET $1.86 To Order
Photo Part No Description Price (each) Stock
JUB500160 TUBE - WATER DRAIN $7.83 IN STOCK
View All

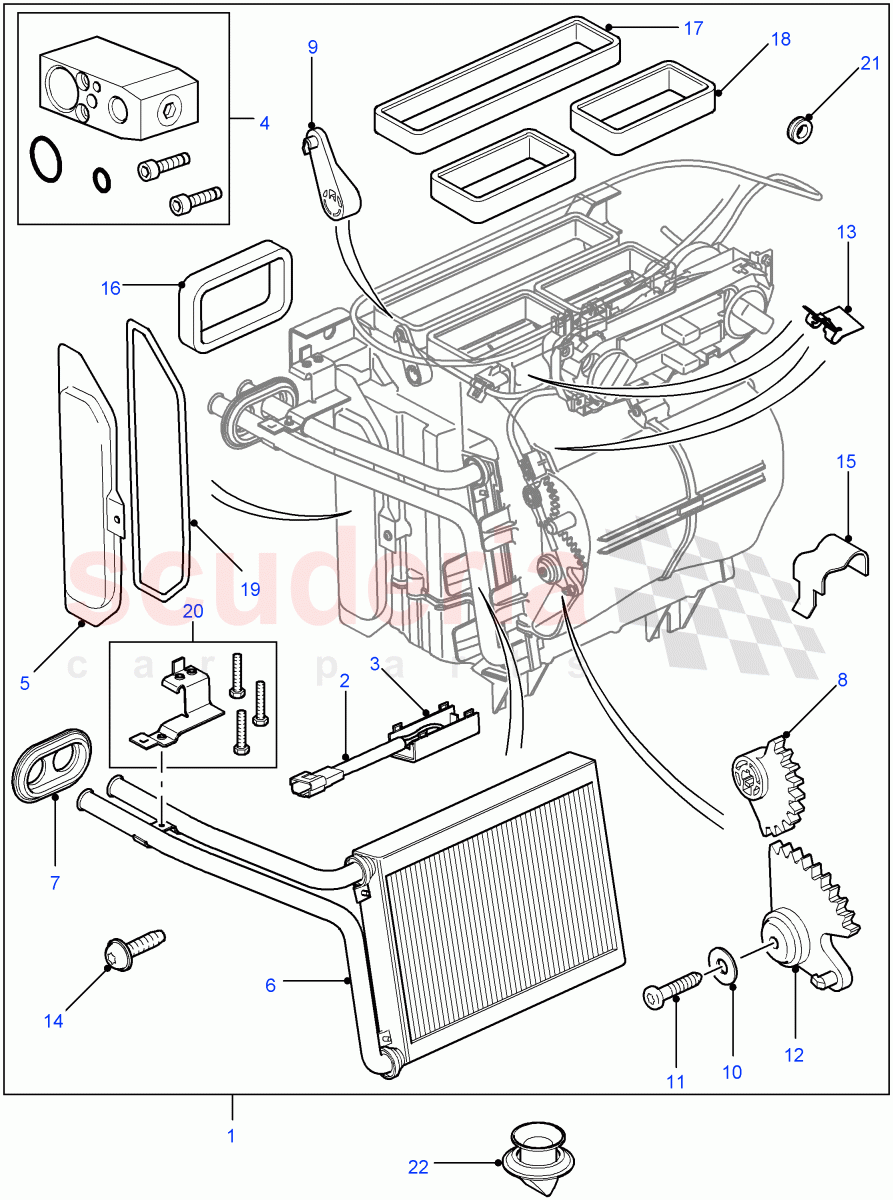

Heater/Air Cond.Assy And Components ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 JEC501400
HEATER
Less Air Conditioning, RHD / To: 9A769999 		$423.84 1
1 JEC501410
HEATER
LHD, Less Air Conditioning / To: 9A769999 		$460.93 1
1 JEC501420
HEATER
RHD, With Manual Air Conditioning / To: 9A769999 		$1,136.75 1
1 JEC501510
HEATER
Less Air Conditioning, RHD / From: 9A770000 / To: AA999999 		$534.18 1
1 JEC501550
HEATER
LHD, Less Air Conditioning / From: 9A770000 / To: AA999999 		$563.80 1
1 JEC501520
HEATER
RHD, With Manual Air Conditioning / From: 9A770000 / To: AA999999 		$1,136.75 1
1 LR014053
HEATER
LHD, With Manual Air Conditioning / To: AA999999 		$1,136.75 1
1 LR020943
HEATER
RHD, With Manual Air Conditioning / From: BA000001 / To: BA403641 		$1,147.40 1
1 LR020944
HEATER
LHD, With Manual Air Conditioning / From: BA000001 / To: BA403641 		$1,169.25 1
1 LR020946
HEATER
Less Air Conditioning, RHD / From: BA000001 / To: BA403641 		$1,746.41 1
1 LR020947
HEATER
LHD, Less Air Conditioning / From: BA000001 / To: BA403641 		$563.80 1
1 LR031513
HEATER
RHD, With Manual Air Conditioning / From: BA403642 / To: CA555554 		$1,136.75 1
1 LR031514
HEATER
LHD, With Manual Air Conditioning / From: BA403642 / To: CA555554 		$935.02 1
1 LR031515
HEATER
Less Air Conditioning, RHD / From: BA403642 		$1,103.80 1
1 LR031516
HEATER
LHD, Less Air Conditioning / From: BA403642 		$598.73 1
1 LR036307
HEATER
RHD, With Manual Air Conditioning / From: CA555555 		$1,553.65 1
1 LR036308
HEATER
LHD, With Manual Air Conditioning / From: CA555555 		$1,553.65 1
2 JQL500010
SENSOR
With Manual Air Conditioning / To: CA555554 		$59.36 1
2 LR036309
SENSOR - HEATER TEMPERATURE CONTROL
With Manual Air Conditioning / From: CA555555 		$59.66 1
3 JQL500020
BRACKET - RESISTOR
With Manual Air Conditioning 		$19.06 1
4 JQD500070
VALVE - EVAPORATOR EXPANSION
With Manual Air Conditioning 		$467.74 1
5 JMJ500010
HEATER
Inlet 		$16.52 1
6 JEP500080
HEATER - LESS RADIATOR
To: BA403641 		$206.95 1
6 LR032072
HEATER - LESS RADIATOR
RHD / From: BA403642 		$1,378.60 1
6 LR020952
HEATER - LESS RADIATOR
LHD / From: BA403642 		$1,371.36 1
7 JQS500080
GROMMET 		$16.86 1
8 JFG500020
GEAR - AIR DISTRIBUTION 		$10.59 1
9 JGO500030
LEVER 		$8.06 1
10 JYF500010
WASHER 		$9.94 1
11 JYP500060
SCREW
M4 x 12 		$3.61 1
12 JGO500040
LEVER 		$9.55 1
13 JYC500070
CLIP 		$3.65 2
14 JYP500070
SCREW
Torx 		$7.62 15
15 JYC500080
CLIP 		$18.71 4
16 JZB500020
SEAL - VALVE 		$18.30 1
17 JZB500030
SEAL 		$27.09 2
18 JZB500040
SEAL 		$16.25 1
19 JZB500050
SEAL 		$13.56 1
20 PEU500170
BRACKET - HEATER MOUNTING
Kit 		$44.73 1
21 JQS500090
GROMMET 		$1.86 1
21 LR020949
GROMMET 		$1.86 1
22 JUB500160
TUBE - WATER DRAIN
IN STOCK 		$7.83 -
