Radiator Hoses ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Radiator Hoses ((V) FROMCA000001)

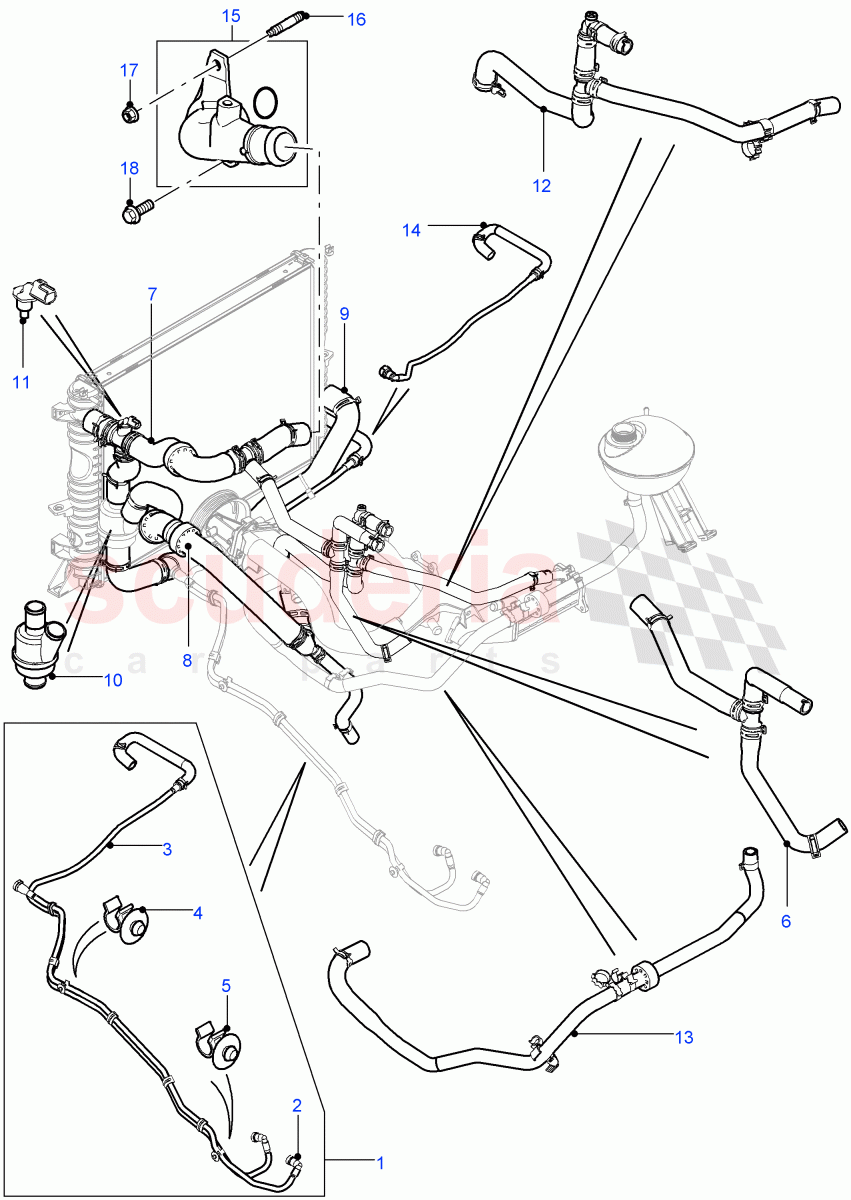

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PEH500480	HOSE - OIL COOLER	Enquire	To Order
	PEH500480	HOSE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NLA	Joint - CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NLA	Joint - CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500240	Clip - Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500260	Clip - Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029646	HOSE - HEATER WATER	Enquire	To Order
	LR036401	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032207	HOSE - RADIATOR	Enquire	To Order
	LR038062	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032208	HOSE - THERMOSTAT	Enquire	To Order
	LR038063	HOSE - THERMOSTAT	Enquire	To Order
	LR081698	HOSE - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH503290	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEM100990	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029645	HOSE - VENT	Enquire	To Order
	LR036398	Hose	Enquire	To Order
	LR037392	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029649	HOSE - HEATER TO WATER PUMP	Enquire	To Order
	LR036407	HOSE - HEATER TO WATER PUMP	Enquire	To Order
	LR041310	HOSE - HEATER TO WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038742	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029946	CONNECTION - WATER OUTLET	Enquire	To Order
	LR058106	CONNECTION - WATER OUTLET	Enquire	To Order
	LR059723	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004356	STUD - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	PEH500480	HOSE - OIL COOLER	PEH500480 HOSE - OIL COOLER Feed / To: DA432379	-	1	Enquire
1	PEH500480	HOSE - OIL COOLER	PEH500480 HOSE - OIL COOLER EU2 / Feed / From: DA432380	-	1	Enquire
2	NLA	Joint - CV	NLA Joint - CV Inlet, Serviced in Assembly Only	-	1	Enquire
3	NLA	Joint - CV	NLA Joint - CV Outlet, Serviced in Assembly Only	-	1	Enquire
4	PEK500240	Clip - Hose	PEK500240 Clip - Hose	-	2	Enquire
5	PEK500260	Clip - Hose	PEK500260 Clip - Hose	-	2	Enquire
6	LR029646	HOSE - HEATER WATER	LR029646 HOSE - HEATER WATER heater inlet / To: CA455554	-	1	Enquire
6	LR036401	HOSE - HEATER WATER	LR036401 HOSE - HEATER WATER heater inlet / From: CA455555	-	1	Enquire
7	LR032207	HOSE - RADIATOR	LR032207 HOSE - RADIATOR Radiator Top Coolant / To: CA555554	-	1	Enquire
7	LR038062	HOSE - RADIATOR	LR038062 HOSE - RADIATOR Radiator Top Coolant / From: CA555555	-	1	Enquire
8	LR032208	HOSE - THERMOSTAT	LR032208 HOSE - THERMOSTAT Thermostat To Coolant Pipe / To: CA555554	-	1	Enquire
8	LR038063	HOSE - THERMOSTAT	LR038063 HOSE - THERMOSTAT Thermostat To Coolant Pipe / From: CA555555 / To: CA566665	-	1	Enquire
8	LR081698	HOSE - THERMOSTAT	LR081698 HOSE - THERMOSTAT Thermostat To Coolant Pipe / From: CA566666	-	1	Enquire
9	PCH503290	HOSE - RADIATOR	PCH503290 HOSE - RADIATOR Radiator To Thermostat	-	1	Enquire
10	PEM100990	THERMOSTAT	PEM100990 THERMOSTAT	-	1	Enquire
11	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	-	1	Enquire
12	LR029645	HOSE - VENT	LR029645 HOSE - VENT heater outlet / To: CA455554	-	1	Enquire
12	LR036398	Hose	LR036398 Hose heater outlet / From: CA455555 / To: CA555554	-	1	Enquire
12	LR037392	HOSE - VENT	LR037392 HOSE - VENT heater outlet / From: CA555555	-	1	Enquire
13	LR029649	HOSE - HEATER TO WATER PUMP	LR029649 HOSE - HEATER TO WATER PUMP To: CA415554	-	1	Enquire
13	LR036407	HOSE - HEATER TO WATER PUMP	LR036407 HOSE - HEATER TO WATER PUMP From: CA415555 / To: CA444443	-	1	Enquire
13	LR041310	HOSE - HEATER TO WATER PUMP	LR041310 HOSE - HEATER TO WATER PUMP From: CA444444	-	1	Enquire
14	LR038742	HOSE - RADIATOR	LR038742 HOSE - RADIATOR Stage V Plus DPF / From: DA432380	-	1	Enquire
15	LR029946	CONNECTION - WATER OUTLET	LR029946 CONNECTION - WATER OUTLET To: DA444246	-	1	Enquire
15	LR058106	CONNECTION - WATER OUTLET	LR058106 CONNECTION - WATER OUTLET From: DA444247	-	1	Enquire
15	LR059723	CONNECTION - WATER OUTLET	LR059723 CONNECTION - WATER OUTLET	-	1	Enquire
16	LR004356	STUD - SPECIAL	LR004356 STUD - SPECIAL M8 X 17 + M8 X 21	-	1	Enquire
17	FN108042	NUT	FN108042 NUT M8 X 1.25	-	1	Enquire
18	FS108256	BOLT	FS108256 BOLT M8 x 25	-	2	Enquire
