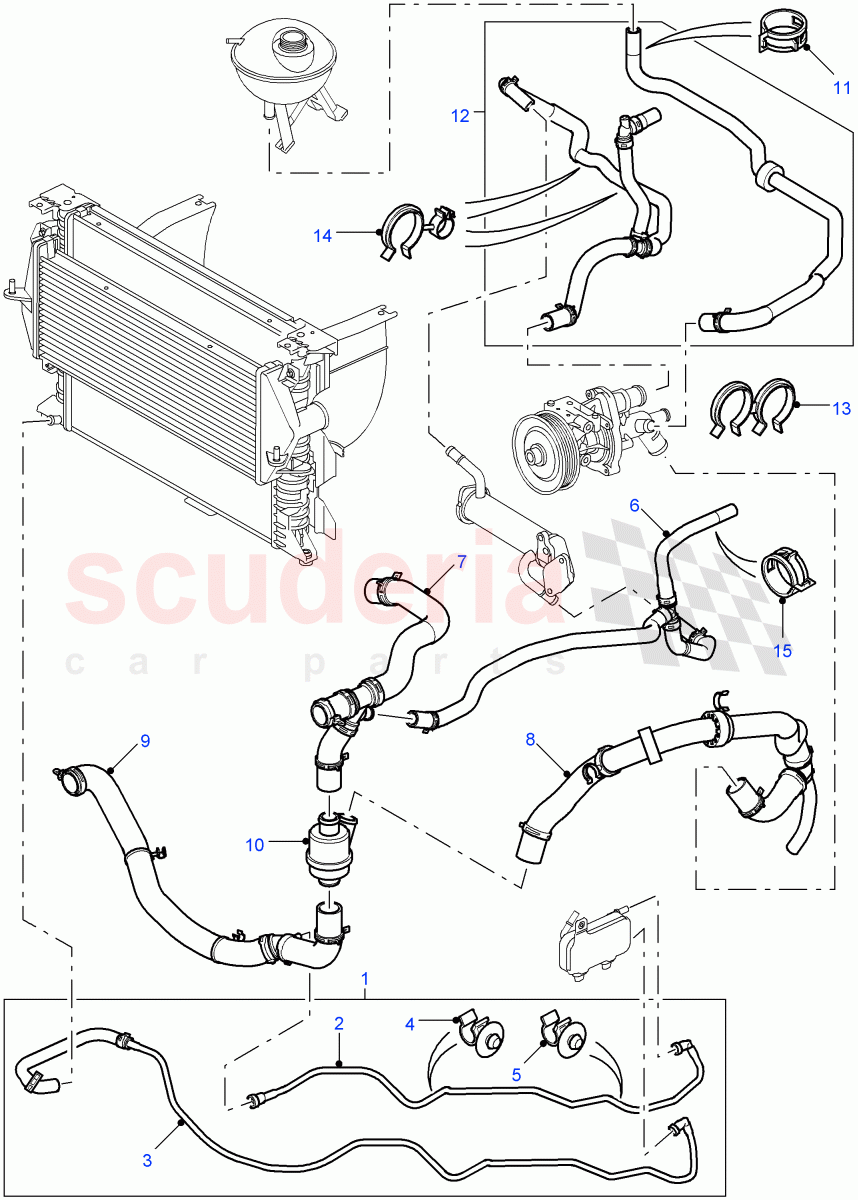

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	NLA	Joint - CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NLA	Joint - CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500240	Clip - Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500260	Clip - Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JHB501780	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH503300	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEH500410	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC102030	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JHC500150	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JHD500010	CLIP - PIPE - DUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JHD500020	CLIP - PIPE - DUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC102030	CLIP - HOSE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	PEH500460	HOSE - OIL COOLER	PEH500460 HOSE - OIL COOLER Feed / To: 8A757889	-	1	Enquire
1	PEH500480	HOSE - OIL COOLER	PEH500480 HOSE - OIL COOLER Feed / From: 8A757890	-	1	Enquire
2	NLA	Joint - CV	NLA Joint - CV Inlet, Serviced in Assembly Only	-	1	Enquire
3	NLA	Joint - CV	NLA Joint - CV Outlet, Serviced in Assembly Only	-	1	Enquire
4	PEK500240	Clip - Hose	PEK500240 Clip - Hose	-	2	Enquire
5	PEK500260	Clip - Hose	PEK500260 Clip - Hose	-	2	Enquire
6	JHB501780	HOSE - HEATER WATER	JHB501780 HOSE - HEATER WATER heater inlet	-	1	Enquire
7	PCH503300	HOSE - RADIATOR	PCH503300 HOSE - RADIATOR Radiator Top Coolant	-	1	Enquire
8	PEH500410	HOSE	PEH500410 HOSE Thermostat To Coolant Pipe	-	1	Enquire
9	PCH503230	HOSE - RADIATOR	PCH503230 HOSE - RADIATOR Radiator To Thermostat / To: 7A748565	-	1	Enquire
9	PCH503290	HOSE - RADIATOR	PCH503290 HOSE - RADIATOR Radiator To Thermostat / From: 7A748566	-	1	Enquire
10	PEM100990K	Housing - Thermostat	PEM100990K Housing - Thermostat	-	1	Enquire
10	PEM100990	THERMOSTAT	PEM100990 THERMOSTAT	-	1	Enquire
11	PYC102030	CLIP - HOSE	PYC102030 CLIP - HOSE	-	2	Enquire
12	JHC500150	HOSE - VENT	JHC500150 HOSE - VENT heater outlet	-	1	Enquire
13	JHD500010	CLIP - PIPE - DUAL	JHD500010 CLIP - PIPE - DUAL	-	1	Enquire
14	JHD500020	CLIP - PIPE - DUAL	JHD500020 CLIP - PIPE - DUAL	-	2	Enquire
15	PYC102030	CLIP - HOSE	PYC102030 CLIP - HOSE	-	2	Enquire
