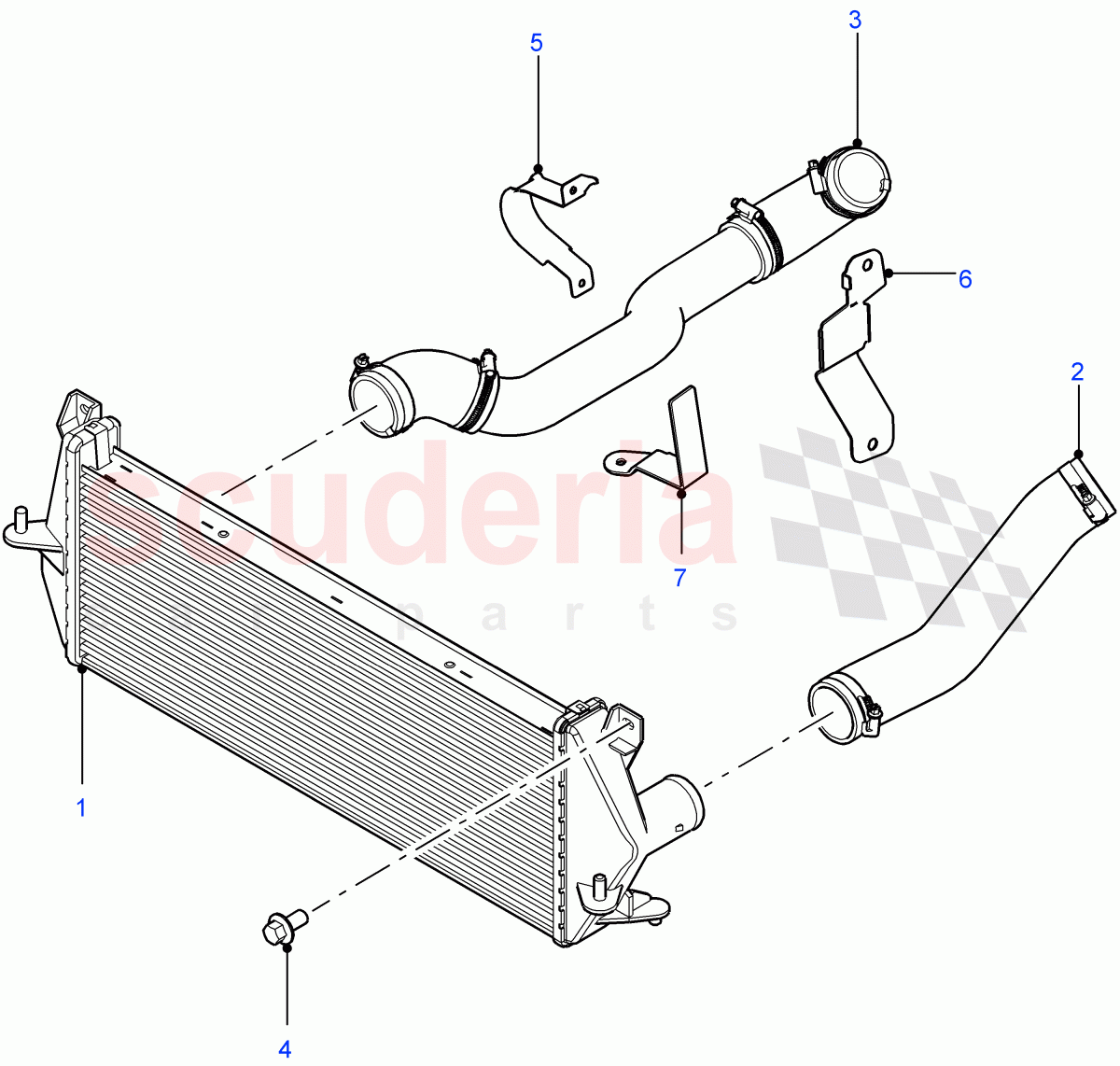

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR017950	INTERCOOLER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062091	BRACKET - COOLING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062121	BRACKET - COOLING HOSE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR017950	INTERCOOLER	LR017950 INTERCOOLER	-	1	Enquire
2	LR029650	HOSE - COOLING SYSTEM	LR029650 HOSE - COOLING SYSTEM Engine To Intercooler / To: CA412050	-	1	Enquire
2	LR057323	HOSE	LR057323 HOSE Engine To Intercooler / From: CA412051	-	1	Enquire
3	LR029651	HOSE - COOLER TO TUBE	LR029651 HOSE - COOLER TO TUBE intercooler to turbocharger / To: CA412050	-	1	Enquire
3	LR044441	HOSE - COOLER TO TUBE	LR044441 HOSE - COOLER TO TUBE intercooler to turbocharger / From: CA412051 / To: DA428173	-	1	Enquire
3	LR052898	HOSE - COOLER TO TUBE	LR052898 HOSE - COOLER TO TUBE intercooler to turbocharger / From: DA428174 / To: DA443665	-	1	Enquire
3	LR058084	HOSE - COOLER TO TUBE	LR058084 HOSE - COOLER TO TUBE intercooler to turbocharger / From: DA443666 / To: EA451693	-	1	Enquire
3	LR061831	HOSE - COOLER TO TUBE	LR061831 HOSE - COOLER TO TUBE intercooler to turbocharger / From: EA451694	-	1	Enquire
4	FS108166	BOLT	FS108166 BOLT M8 X 16	-	2	Enquire
5	LR062091	BRACKET - COOLING HOSE	LR062091 BRACKET - COOLING HOSE RHD / From: EA448483	-	1	Enquire
6	LR062121	BRACKET - COOLING HOSE	LR062121 BRACKET - COOLING HOSE RHD / From: EA448483	-	1	Enquire
7	LR061830	BRACKET - SUPPORT	LR061830 BRACKET - SUPPORT RHD / From: EA455709	-	1	Enquire
7	LR057448	BRACKET - AIR DUCT SUPPORT	LR057448 BRACKET - AIR DUCT SUPPORT RHD / From: EA448483 / To: EA455708	-	1	Enquire
