Name: Condenser Assembly (With Manual Air Conditioning) ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

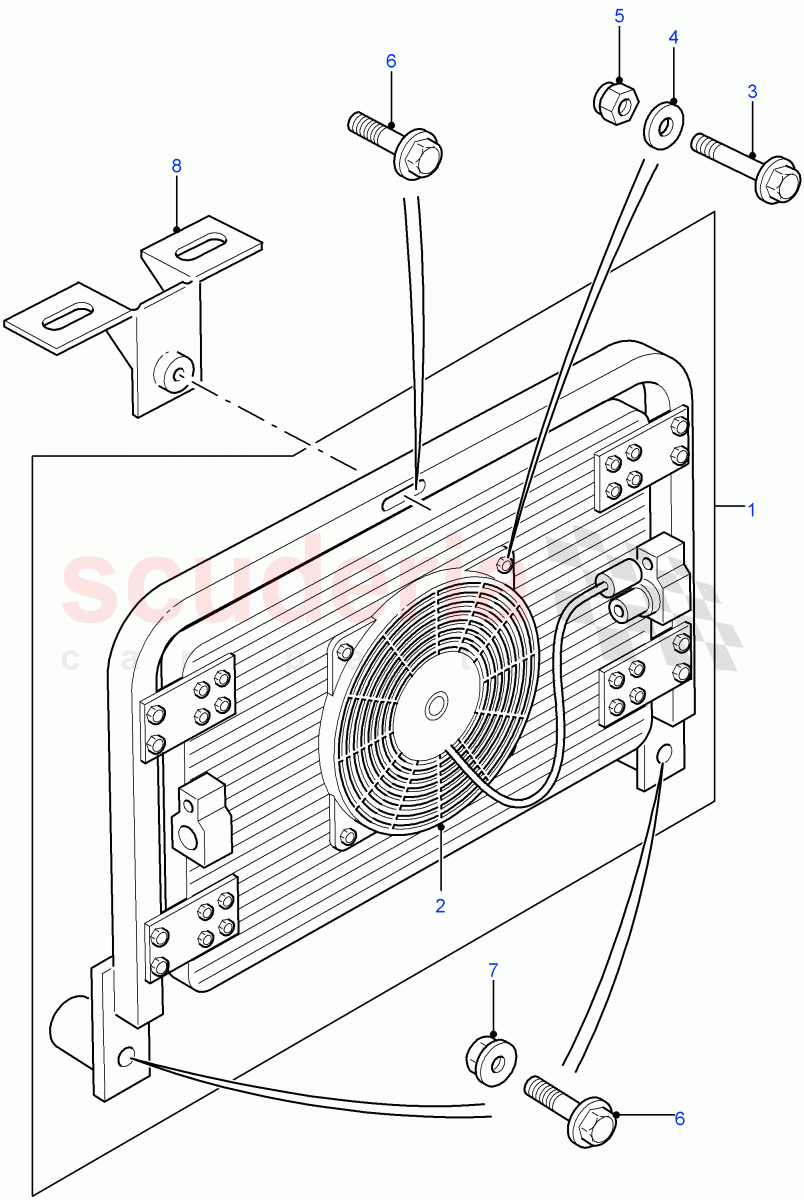

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	JRP105080	FAN - CONDENSER	$569.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SH106301L	SCREW	$1.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WJ600041L	WASHER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108087	BOLT	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	JRF100410	BRACKET	$15.38	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	JRB000051	CONDENSER	JRB000051 CONDENSER To: AA999999	$1,681.09	1
1	LR025985	CONDENSER IN STOCK	LR025985 CONDENSER From: BA000001 IN STOCK	$1,309.79	1
2	JRP105080	FAN - CONDENSER IN STOCK	JRP105080 FAN - CONDENSER IN STOCK	$569.43	1
3	SH106301L	SCREW IN STOCK	SH106301L SCREW Hexagonal Head, M6 x 30 IN STOCK	$1.09	4
4	WJ600041L	WASHER IN STOCK	WJ600041L WASHER IN STOCK	$0.61	4
5	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6, nyloc IN STOCK	$0.69	4
6	FB108087	BOLT	FB108087 BOLT Flanged Head, M8 x 40	$2.82	3
7	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING flange, M8 IN STOCK	$0.41	2
8	JRF100410	BRACKET IN STOCK	JRF100410 BRACKET IN STOCK	$15.38	1
