Radiator ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

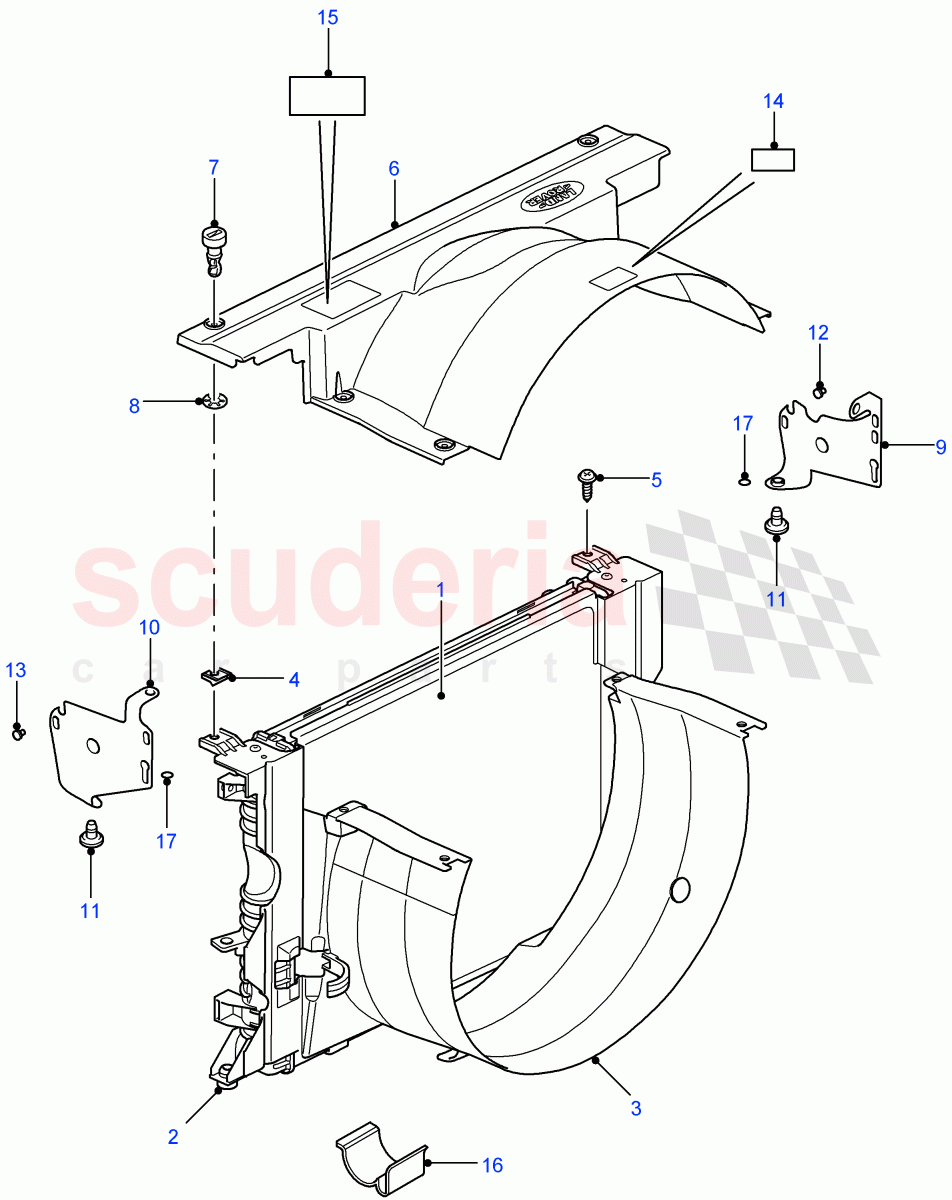

Land Rover Defender (2007-2016) - Radiator ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PCC001020	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG100300	MOUNTING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500450	SHROUD - RADIATOR FAN	Enquire	To Order
	PGK500480	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6462	FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP100550	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500440	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6461	FASTENER - SCREW TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYF100830	WASHER - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU103780	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU103790	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG100330	MOUNTING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PAK100270	LABEL - RADIATOR FAN WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044450	LABEL - REFRIGERANT	Enquire	To Order
	LR019662	LABEL - REFRIGERANT	Enquire	To Order
	LR023476	LABEL - REFRIGERANT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	PYC102200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU3112	O Ring	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	PCC001020	RADIATOR	PCC001020 RADIATOR	-	1	Enquire
2	PCG100300	MOUNTING - RUBBER	PCG100300 MOUNTING - RUBBER	-	2	Enquire
3	PGK500450	SHROUD - RADIATOR FAN	PGK500450 SHROUD - RADIATOR FAN Lower / To: BA555554	-	1	Enquire
3	PGK500480	SHROUD - RADIATOR FAN	PGK500480 SHROUD - RADIATOR FAN Lower / From: BA555555	-	1	Enquire
4	ANR6462	FASTENER	ANR6462 FASTENER Female	-	6	Enquire
5	PYP100550	SCREW - SELF-TAPPING	PYP100550 SCREW - SELF-TAPPING	-	2	Enquire
6	PGK500440	SHIELD	PGK500440 SHIELD Upper	-	1	Enquire
7	ANR6461	FASTENER - SCREW TYPE	ANR6461 FASTENER - SCREW TYPE Male	-	6	Enquire
8	PYF100830	WASHER - PLASTIC	PYF100830 WASHER - PLASTIC retaining	-	6	Enquire
9	PCU103780	BRACKET - RADIATOR	PCU103780 BRACKET - RADIATOR RH	-	1	Enquire
10	PCU103790	BRACKET - RADIATOR	PCU103790 BRACKET - RADIATOR LH	-	1	Enquire
11	PCG100330	MOUNTING - RUBBER	PCG100330 MOUNTING - RUBBER	-	2	Enquire
12	FS106206	SCREW	FS106206 SCREW Flanged Head, M6 X 20MM	-	2	Enquire
13	FS106206	SCREW	FS106206 SCREW Flanged Head, M6 X 20MM	-	2	Enquire
14	PAK100270	LABEL - RADIATOR FAN WARNING	PAK100270 LABEL - RADIATOR FAN WARNING RADIATOR WARNING DECAL ONR	-	1	Enquire
15	LR044450	LABEL - REFRIGERANT	LR044450 LABEL - REFRIGERANT Less Special Language Label / Air Con Warning Label - Air Conditioning / From: DA000001	-	1	Enquire
15	LR019662	LABEL - REFRIGERANT	LR019662 LABEL - REFRIGERANT With Chinese Language Label / Air Con Warning Label - Air Conditioning / To: CA999999	-	1	Enquire
15	LR023476	LABEL - REFRIGERANT	LR023476 LABEL - REFRIGERANT Russian Language Label / Air Con Warning Label - Air Conditioning / To: CA999999	-	1	Enquire
15	LR044448	LABEL - REFRIGERANT	LR044448 LABEL - REFRIGERANT With Chinese Language Label / Air Con Warning Label - Air Conditioning / From: DA000001	-	1	Enquire
15	LR044449	LABEL - REFRIGERANT	LR044449 LABEL - REFRIGERANT Russian Language Label / Air Con Warning Label - Air Conditioning / From: DA000001	-	1	Enquire
15	BAC501460	LABEL - REFRIGERANT	BAC501460 LABEL - REFRIGERANT Less Special Language Label / Air Con Warning Label - Air Conditioning / To: CA999999	-	1	Enquire
16	PYC102200	CLIP	PYC102200 CLIP	-	2	Enquire
17	AFU3112	O Ring	AFU3112 O Ring	-	2	Enquire
