Water Pump (Auxiliary Unit) (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Water Pump (Auxiliary Unit) (4.4 V8 Turbo Petrol (NC10))

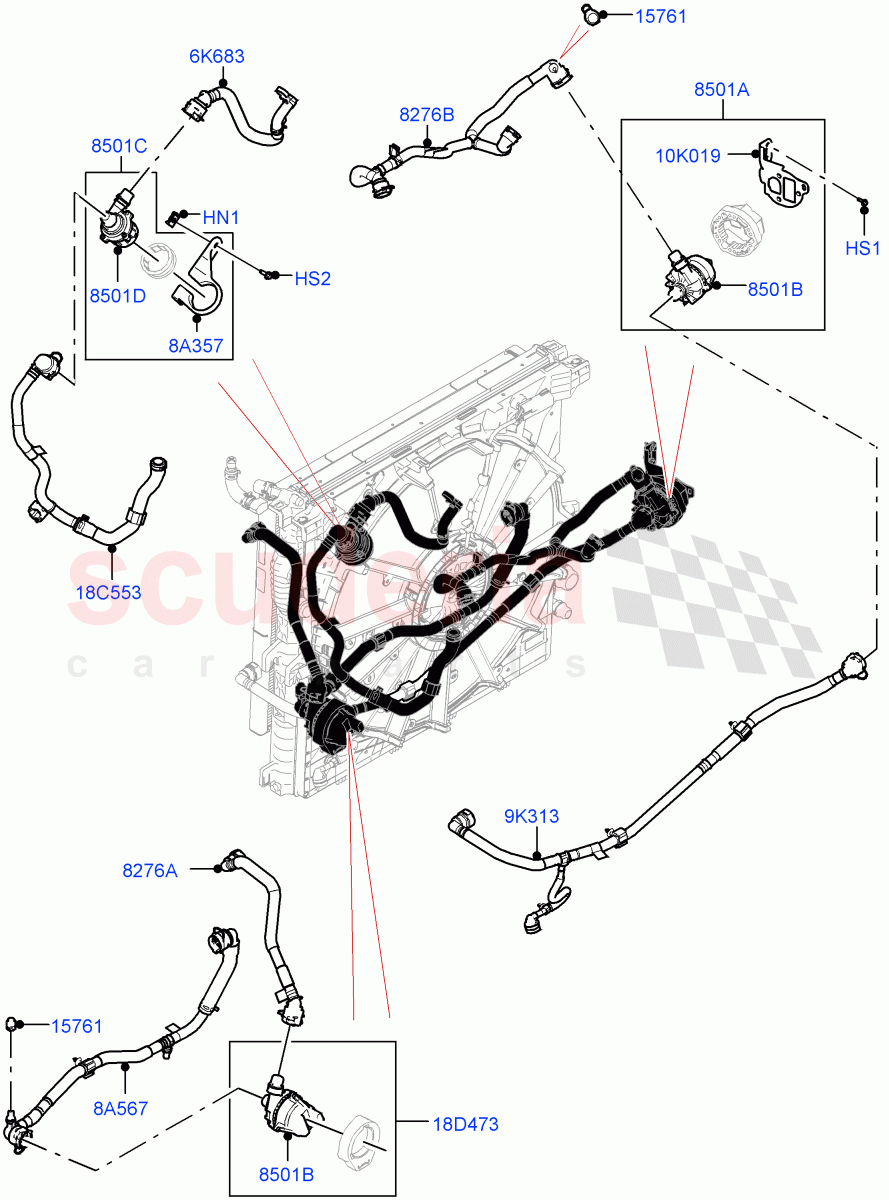

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159963	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151548	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151679	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151672	HOSE - WATER	Enquire	To Order
	LR174584	Hose - Water	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151913	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151917	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151910	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151915	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151920	BRACKET - PUMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151664	HOSE - WATER	Enquire	To Order
	LR174583	Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151665	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151918	BRACKET - PUMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151825	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151906	PUMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	-	1	Enquire
HS1	RYG500190	SCREW	RYG500190 SCREW Hexagonal Head, M6 X 16MM	-	2	Enquire
HS2	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM	-	1	Enquire
6K683	LR151548	HOSE - WATER	LR151548 HOSE - WATER Attaches To Water Pump, LH Upper	-	1	Enquire
8A357	LR151920	BRACKET - PUMP SUPPORT	LR151920 BRACKET - PUMP SUPPORT LH Upper, Water Pump	-	1	Enquire
8A567	LR151664	HOSE - WATER	LR151664 HOSE - WATER Expansion Tank To Pump / To: NA999999	-	1	Enquire
8A567	LR174583	Hose	LR174583 Hose Expansion Tank To Pump / From: PA000001	-	1	Enquire
9K313	LR151665	HOSE - WATER	LR151665 HOSE - WATER Inlet, Water Pump	-	1	Enquire
10K019	LR151918	BRACKET - PUMP SUPPORT	LR151918 BRACKET - PUMP SUPPORT RH	-	1	Enquire
18C553	LR151825	HOSE - WATER	LR151825 HOSE - WATER LH Upper	-	1	Enquire
18D473	LR151906	PUMP	LR151906 PUMP LH Lower, With Bracket	-	1	Enquire
8276A	LR151679	HOSE - WATER	LR151679 HOSE - WATER From Radiator To Water Pump, Intercooler Outlet	-	1	Enquire
8276B	LR151672	HOSE - WATER	LR151672 HOSE - WATER Intercooler Inlet / To: NA999999	-	1	Enquire
8276B	LR174584	Hose - Water	LR174584 Hose - Water Intercooler Inlet / From: PA000001	-	1	Enquire
8501A	LR151913	PUMP - WATER	LR151913 PUMP - WATER RH, Complete Assembly	-	1	Enquire
8501B	LR151917	PUMP - WATER	LR151917 PUMP - WATER RH/LH	-	2	Enquire
8501C	LR151910	PUMP - WATER	LR151910 PUMP - WATER Complete Assembly, LH Upper	-	1	Enquire
8501D	LR151915	PUMP - WATER	LR151915 PUMP - WATER LH Upper	-	1	Enquire
15761	LR159963	PLUG - BLANKING	LR159963 PLUG - BLANKING	-	4	Enquire
