Name: Radiator/Coolant Overflow Container (Auxiliary Unit) (4.4 V8 Turbo Petrol (NC10), With Extra Engine Cooling System, With Standard Engine Cooling System)
Rating: 4.4 (1 reviews)

Radiator/Coolant Overflow Container (Auxiliary Unit) (4.4 V8 Turbo Petrol (NC10), With Extra Engine Cooling System, With Standard Engine Cooling System) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Radiator/Coolant Overflow Container (Auxiliary Unit) (4.4 V8 Turbo Petrol (NC10), With Extra Engine...

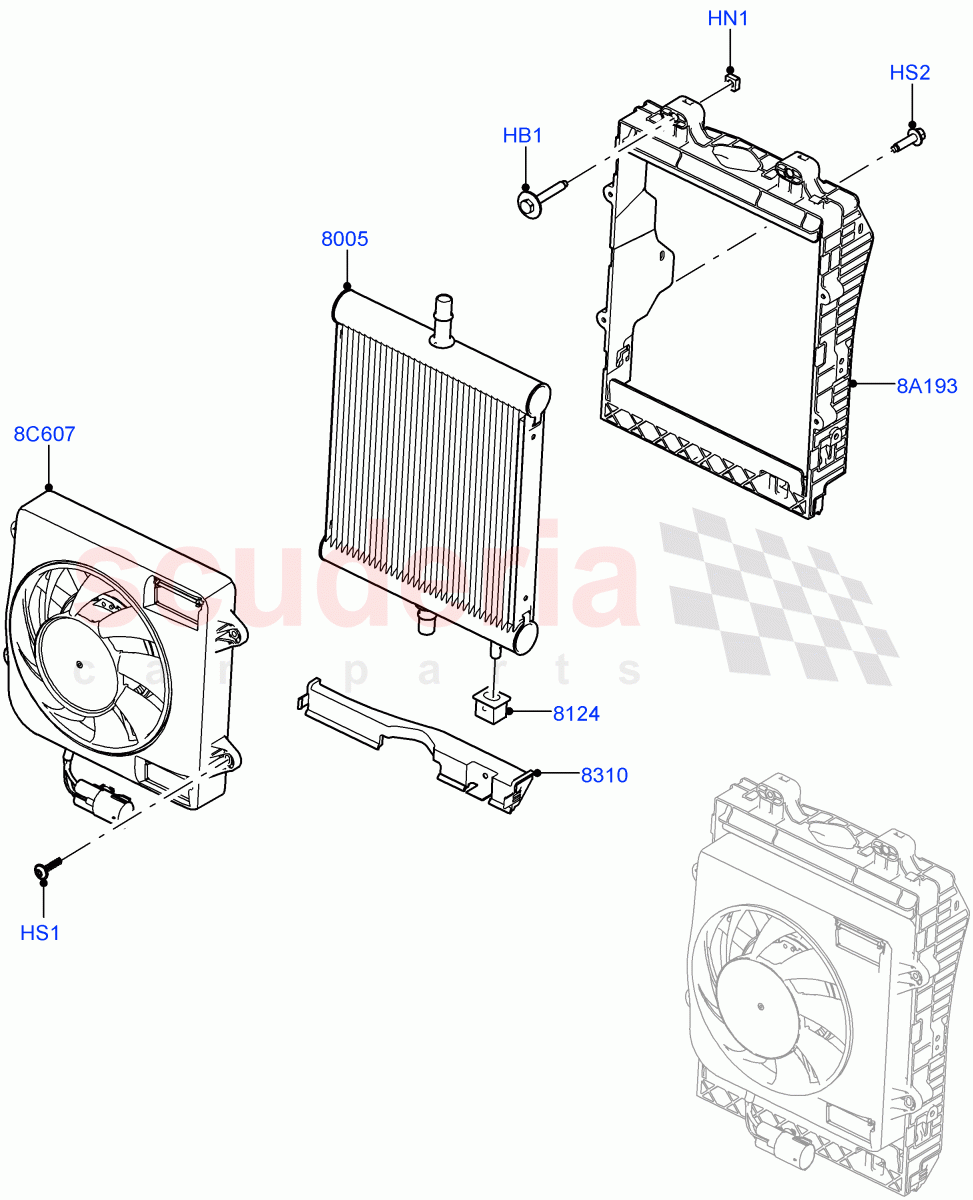

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091737	BOLT AND WASHER - HEX.HEAD	$1.80	IN STOCK
	LR091737	BOLT AND WASHER - HEX.HEAD	$1.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040736	NUT - SQUARE	$1.23	IN STOCK
	LR040736	NUT - SQUARE	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083297	SCREW	$2.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR181580	RADIATOR - AUXILIARY	$338.63	To Order
	LR181580	RADIATOR - AUXILIARY	$338.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	$1.59	IN STOCK
	LR007399	INSULATOR - RUBBER	$1.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR151520	DEFLECTOR - AIR - RADIATOR	$35.71	IN STOCK
	LR151517	DEFLECTOR - AIR - RADIATOR	$35.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151518	BRACKET	$56.97	To Order
	LR151519	BRACKET	$56.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154241	MOTOR AND FAN - ENGINE COOLING	$834.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR091737	BOLT AND WASHER - HEX.HEAD IN STOCK	LR091737 BOLT AND WASHER - HEX.HEAD With Standard Engine Cooling System / LH, M6 X 40MM IN STOCK	$1.80	2
HB1	LR091737	BOLT AND WASHER - HEX.HEAD IN STOCK	LR091737 BOLT AND WASHER - HEX.HEAD With Extra Engine Cooling System / M6 X 40MM, RH/LH IN STOCK	$1.80	4
HN1	LR040736	NUT - SQUARE IN STOCK	LR040736 NUT - SQUARE With Standard Engine Cooling System / LH, M6, Square IN STOCK	$1.23	2
HN1	LR040736	NUT - SQUARE IN STOCK	LR040736 NUT - SQUARE With Extra Engine Cooling System / M6, RH/LH, Square IN STOCK	$1.23	4
HS1	LR083297	SCREW IN STOCK	LR083297 SCREW Engine Cooling Fan-Twin 1000W/350W / M5 x 22MM IN STOCK	$2.46	4
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW With Standard Engine Cooling System / LH, Hexagonal Head, M6 X 20MM IN STOCK	$3.31	1
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW With Extra Engine Cooling System / Hexagonal Head, M6 X 20MM, RH/LH IN STOCK	$3.31	2
8A193	LR151518	BRACKET	LR151518 BRACKET LH, Frame Assy	$56.97	1
8A193	LR151519	BRACKET	LR151519 BRACKET With Extra Engine Cooling System / RH, Frame Assy	$56.97	1
8C607	LR154241	MOTOR AND FAN - ENGINE COOLING	LR154241 MOTOR AND FAN - ENGINE COOLING Engine Cooling Fan-Twin 1000W/350W / LH	$834.69	1
8005	LR181580	RADIATOR - AUXILIARY	LR181580 RADIATOR - AUXILIARY With Standard Engine Cooling System / LH	$338.63	1
8005	LR181580	RADIATOR - AUXILIARY	LR181580 RADIATOR - AUXILIARY With Extra Engine Cooling System / RH/LH	$338.63	2
8124	LR007399	INSULATOR - RUBBER IN STOCK	LR007399 INSULATOR - RUBBER With Standard Engine Cooling System / LH, Radiator IN STOCK	$1.59	1
8124	LR007399	INSULATOR - RUBBER IN STOCK	LR007399 INSULATOR - RUBBER With Extra Engine Cooling System / Radiator, RH/LH IN STOCK	$1.59	2
8310	LR151520	DEFLECTOR - AIR - RADIATOR IN STOCK	LR151520 DEFLECTOR - AIR - RADIATOR LH, Bracket IN STOCK	$35.71	1
8310	LR151517	DEFLECTOR - AIR - RADIATOR	LR151517 DEFLECTOR - AIR - RADIATOR With Extra Engine Cooling System / RH, Bracket	$35.71	1
