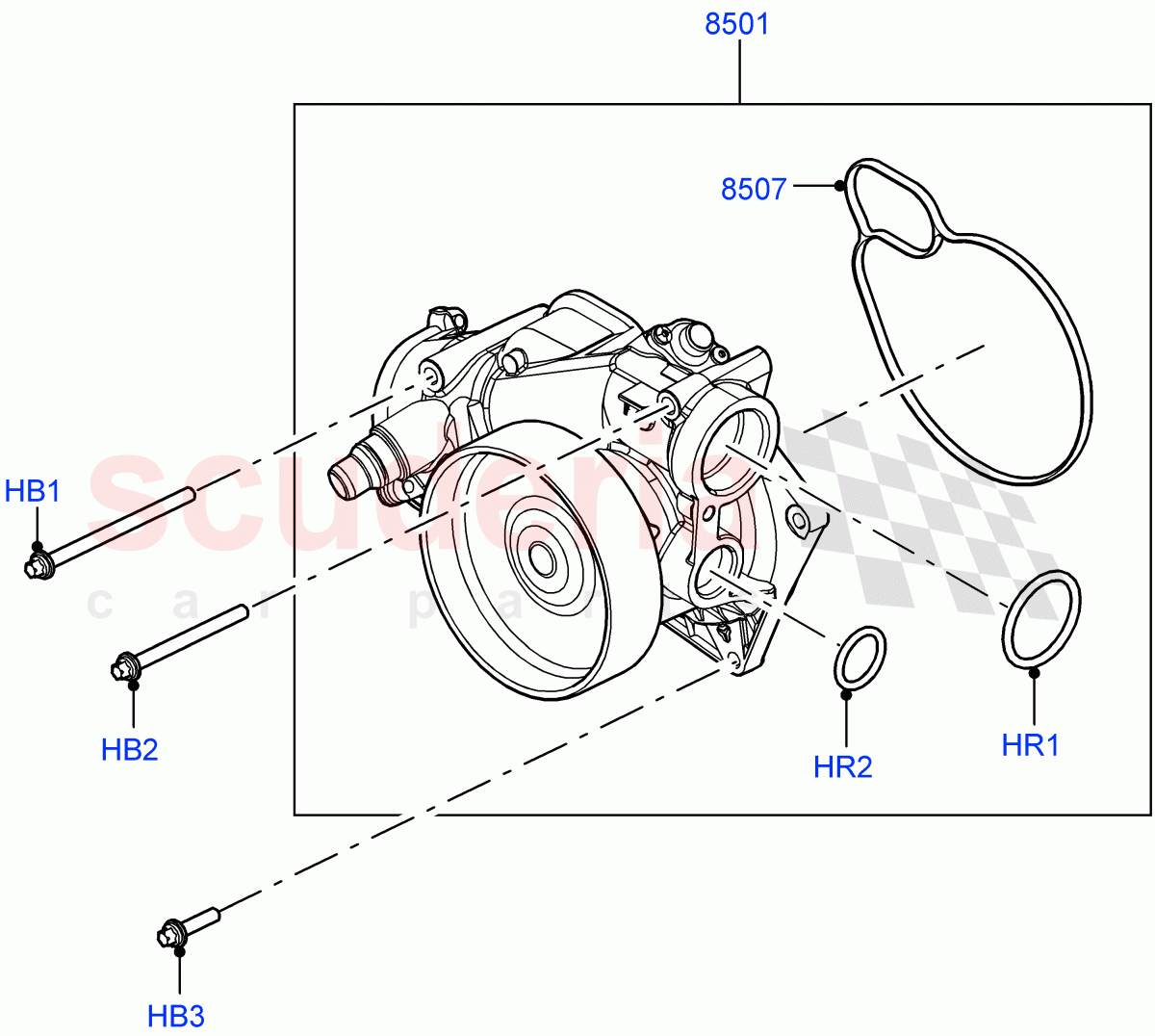

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158570	BOLT	$6.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158572	BOLT	$6.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158575	BOLT	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158250	O-RING	$17.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158247	O-RING	$10.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158234	PUMP - WATER	$344.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158325	GASKET - WATER PUMP	$20.11	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158570	BOLT	LR158570 BOLT M6 x 90MM, Torx	$6.87	1
HB2	LR158572	BOLT	LR158572 BOLT M6 x 70MM, Torx	$6.87	1
HB3	LR158575	BOLT	LR158575 BOLT M6 x 25MM, Torx	$2.07	3
HR1	LR158250	O-RING	LR158250 O-RING Upper	$17.46	1
HR2	LR158247	O-RING	LR158247 O-RING Lower	$10.93	1
8501	LR158234	PUMP - WATER	LR158234 PUMP - WATER	$344.21	1
8507	LR158325	GASKET - WATER PUMP	LR158325 GASKET - WATER PUMP Rear	$20.11	1
