Radiator/Coolant Overflow Container (Main Unit) (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Radiator/Coolant Overflow Container (Main Unit) (4.4 V8 Turbo Petrol (NC10))

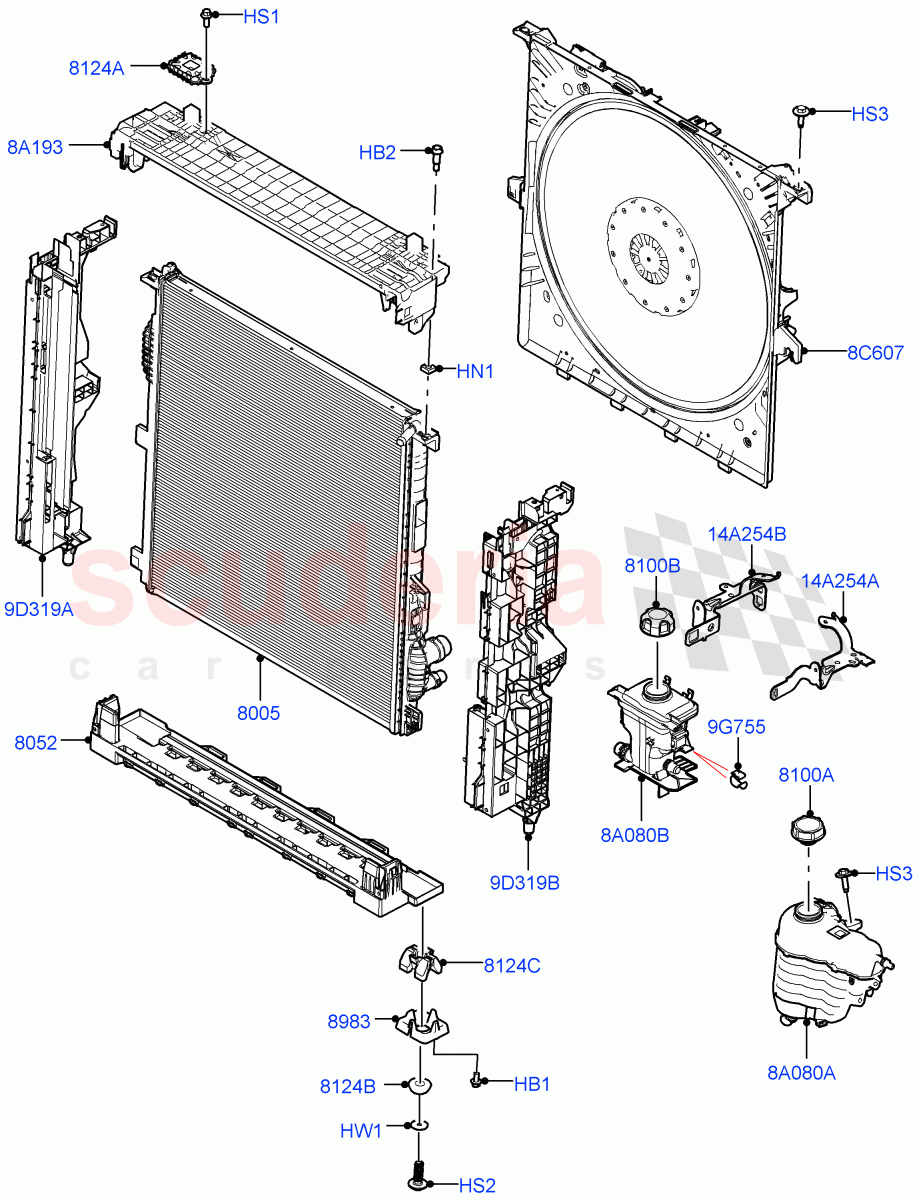

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152219	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152160	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038052	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYF500090	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152196	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152213	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157033	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151581	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151577	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152143	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150472	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145134	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152201	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152151	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR152154	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152016	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151660	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151661	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152211	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152208	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158795	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158776	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM	-	2	Enquire
HB2	LR152219	BOLT	LR152219 BOLT M6	-	2	Enquire
HN1	LR152160	NUT - FLANGED	LR152160 NUT - FLANGED M6, Square	-	3	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM	-	2	Enquire
HS2	LR038052	SCREW	LR038052 SCREW 8 x 24MM, Torx	-	2	Enquire
HS3	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM, Screw And Washer	-	3	Enquire
HW1	VYF500090	WASHER	VYF500090 WASHER 8.4 X 31 X 1.6	-	2	Enquire
8A080A	LR151660	TANK - RADIATOR OVERFLOW	LR151660 TANK - RADIATOR OVERFLOW LH	-	1	Enquire
8A080B	LR151661	TANK - RADIATOR OVERFLOW	LR151661 TANK - RADIATOR OVERFLOW RH	-	1	Enquire
8A193	LR152201	BRACKET - RADIATOR	LR152201 BRACKET - RADIATOR Top	-	1	Enquire
8C607	LR152151	MOTOR AND FAN - ENGINE COOLING	LR152151 MOTOR AND FAN - ENGINE COOLING Engine Cooling Fan-Twin 1000W/350W	-	1	Enquire
8C607	LR152154	MOTOR AND FAN - ENGINE COOLING	LR152154 MOTOR AND FAN - ENGINE COOLING Engine Cooilng Fan 850W	-	1	Enquire
9D319A	LR152211	BRACKET - RADIATOR	LR152211 BRACKET - RADIATOR RH	-	1	Enquire
9D319B	LR152208	BRACKET - RADIATOR	LR152208 BRACKET - RADIATOR LH	-	1	Enquire
9G755	LR152016	CLIP - HOSE	LR152016 CLIP - HOSE Expansion Tank	-	1	Enquire
14A254A	LR158795	BRACKET	LR158795 BRACKET LH, To Expansion Tank	-	1	Enquire
14A254B	LR158776	BRACKET	LR158776 BRACKET RH, To Expansion Tank	-	1	Enquire
8005	LR152196	RADIATOR	LR152196 RADIATOR	-	1	Enquire
8052	LR152213	BRACKET - RADIATOR	LR152213 BRACKET - RADIATOR Bottom	-	1	Enquire
8100A	LR151581	CAP - OVERFLOW CONTAINER	LR151581 CAP - OVERFLOW CONTAINER LH	-	1	Enquire
8100B	LR151577	CAP - OVERFLOW CONTAINER	LR151577 CAP - OVERFLOW CONTAINER RH	-	1	Enquire
8124A	LR152143	INSULATOR - RADIATOR MOUNTING	LR152143 INSULATOR - RADIATOR MOUNTING Upper	-	2	Enquire
8124B	LR150472	INSULATOR - RADIATOR SUPPORT	LR150472 INSULATOR - RADIATOR SUPPORT Bottom, Support	-	2	Enquire
8124C	LR145134	INSULATOR - RADIATOR SUPPORT	LR145134 INSULATOR - RADIATOR SUPPORT Radiator Support	-	2	Enquire
8983	LR157033	BRACKET - SUPPORT	LR157033 BRACKET - SUPPORT Lower, RH/LH	-	2	Enquire
