Name: Cooling System Pipes And Hoses (4.4 V8 Turbo Petrol (NC10), With Extra Engine Cooling System)
Rating: 4.6 (1 reviews)

Cooling System Pipes And Hoses (4.4 V8 Turbo Petrol (NC10), With Extra Engine Cooling System) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Cooling System Pipes And Hoses (4.4 V8 Turbo Petrol (NC10), With Extra Engine Cooling System)

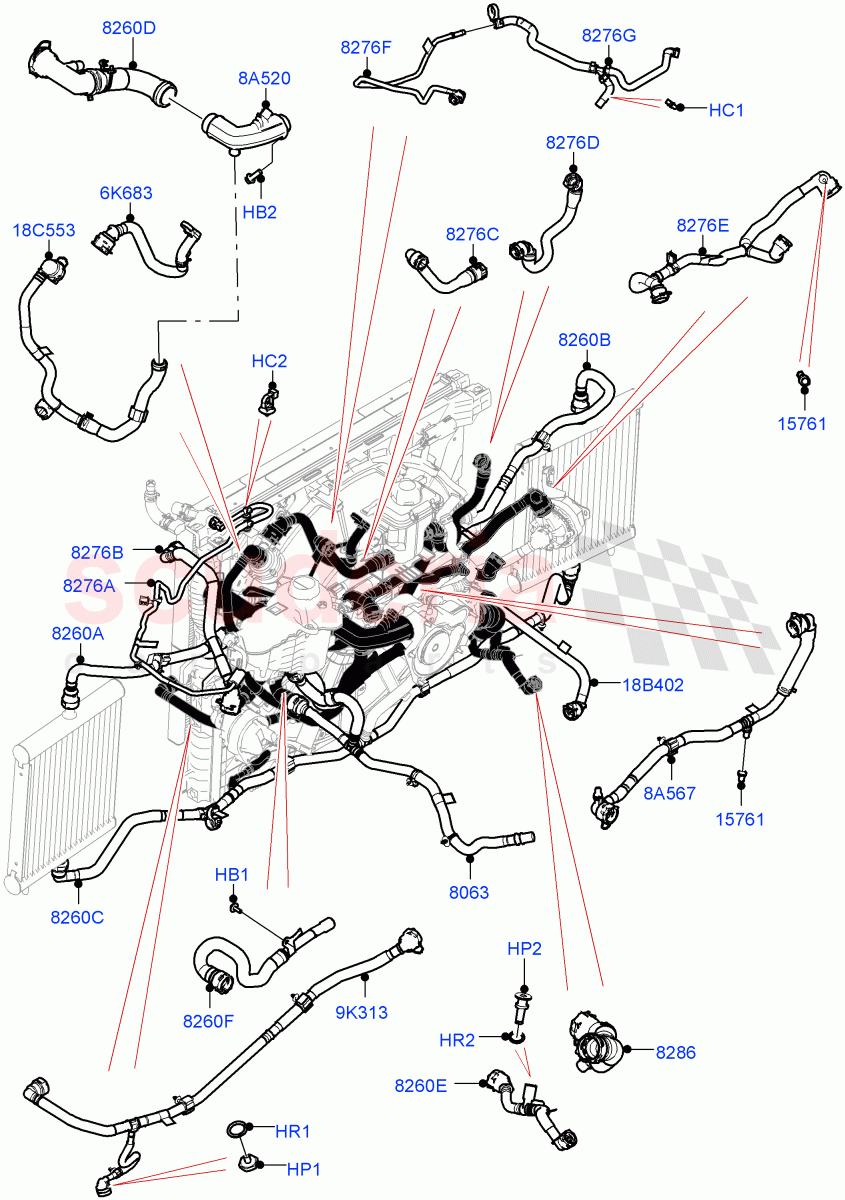

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158565	BOLT - HEX.HEAD	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159035	SCREW	$4.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158557	CLAMP - HOSE	$4.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175782	Clip	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175725	Plug	$20.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175726	Plug	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175788	O-Ring	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175790	O-Ring	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151573	HOSE - WATER	$113.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151633	HOSE - RADIATOR	$83.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159963	PLUG - BLANKING	$5.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151548	HOSE - WATER	$63.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151721	HOSE - WATER	$66.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151718	HOSE - WATER	$82.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174030	HOSE - WATER	$129.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151599	HOSE - RADIATOR	$73.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151698	HOSE - RADIATOR	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159337	HOSE - HEATER WATER	$120.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151608	HOSE - WATER	$79.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151679	HOSE - WATER	$60.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151681	HOSE - WATER	$75.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151680	HOSE - WATER	$76.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151672	HOSE - WATER	$81.05	To Order
	LR174584	Hose - Water	$77.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151637	HOSE - COOLANT BLEED	$48.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159336	HOSE - WATER	$115.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159854	TUBE	$61.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151664	HOSE - WATER	$89.58	To Order
	LR174583	Hose	$85.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151665	HOSE - WATER	$103.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151528	TUBE - HEATER WATER	$86.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151825	HOSE - WATER	$74.12	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158565	BOLT - HEX.HEAD	LR158565 BOLT - HEX.HEAD M6 X 18mm	$1.36	1
HB2	LR159035	SCREW	LR159035 SCREW M6	$4.13	1
HC1	LR158557	CLAMP - HOSE	LR158557 CLAMP - HOSE From Engine To Expansion Tank	$4.92	2
HC2	LR175782	Clip	LR175782 Clip Single	$0.96	2
HP1	LR175725	Plug	LR175725 Plug Hose, Inlet, Plastic, Water Pump	$20.65	1
HP2	LR175726	Plug	LR175726 Plug RH, Bottom, Hose, Radiator	$6.89	1
HR1	LR175788	O-Ring	LR175788 O-Ring Plug, Sealing Ring	$0.80	1
HR2	LR175790	O-Ring	LR175790 O-Ring Sealing Ring, Water Outlet	$1.59	1
6K683	LR151548	HOSE - WATER	LR151548 HOSE - WATER Attaches To Water Pump, RH Upper	$63.09	1
8A520	LR159854	TUBE	LR159854 TUBE To Water Pump	$61.96	1
8A567	LR151664	HOSE - WATER	LR151664 HOSE - WATER Expansion Tank To Pump / To: NA999999	$89.58	1
8A567	LR174583	Hose	LR174583 Hose Expansion Tank To Pump / From: PA000001	$85.65	1
9K313	LR151665	HOSE - WATER	LR151665 HOSE - WATER Inlet, Water Pump	$103.23	1
18B402	LR151528	TUBE - HEATER WATER	LR151528 TUBE - HEATER WATER Attaches To Water Pump, Heater	$86.98	1
18C553	LR151825	HOSE - WATER	LR151825 HOSE - WATER Attaches To Water Pump, LH Upper	$74.12	1
8063	LR151573	HOSE - WATER	LR151573 HOSE - WATER From Engine To Expansion Tank	$113.36	1
8260A	LR151721	HOSE - WATER	LR151721 HOSE - WATER Auxiliary Radiator, LH Upper	$66.70	1
8260B	LR151718	HOSE - WATER	LR151718 HOSE - WATER Auxiliary Radiator, RH Upper	$82.57	1
8260C	LR174030	HOSE - WATER	LR174030 HOSE - WATER Bottom, Connects Auxiliary Radiators	$129.45	1
8260D	LR151599	HOSE - RADIATOR	LR151599 HOSE - RADIATOR Radiator, Top	$73.29	1
8260E	LR151698	HOSE - RADIATOR	LR151698 HOSE - RADIATOR RH, Bottom, Radiator	$77.00	1
8260F	LR159337	HOSE - HEATER WATER	LR159337 HOSE - HEATER WATER Heater, Return	$120.97	1
8276A	LR151608	HOSE - WATER	LR151608 HOSE - WATER Radiator To Expansion Tank Bleed	$79.73	1
8276B	LR151679	HOSE - WATER	LR151679 HOSE - WATER From Radiator To Water Pump, Intercooler Outlet	$60.42	1
8276C	LR151681	HOSE - WATER	LR151681 HOSE - WATER LH, Expansion Tank	$75.85	1
8276D	LR151680	HOSE - WATER	LR151680 HOSE - WATER RH, Expansion Tank	$76.16	1
8276E	LR151672	HOSE - WATER	LR151672 HOSE - WATER Attaches To Water Pump, Intercooler Inlet / To: NA999999	$81.05	1
8276E	LR174584	Hose - Water	LR174584 Hose - Water Attaches To Water Pump, Intercooler Inlet / From: PA000001	$77.49	1
8276F	LR151637	HOSE - COOLANT BLEED	LR151637 HOSE - COOLANT BLEED Front, To Expansion Tank, Ventilation Tube	$48.11	1
8276G	LR159336	HOSE - WATER	LR159336 HOSE - WATER From Engine To Expansion Tank	$115.14	1
8286	LR151633	HOSE - RADIATOR	LR151633 HOSE - RADIATOR Radiator To Thermostat	$83.66	1
15761	LR159963	PLUG - BLANKING	LR159963 PLUG - BLANKING	$5.81	4
