Hood And Related Parts ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Hood And Related Parts ((V) FROMAA000001)

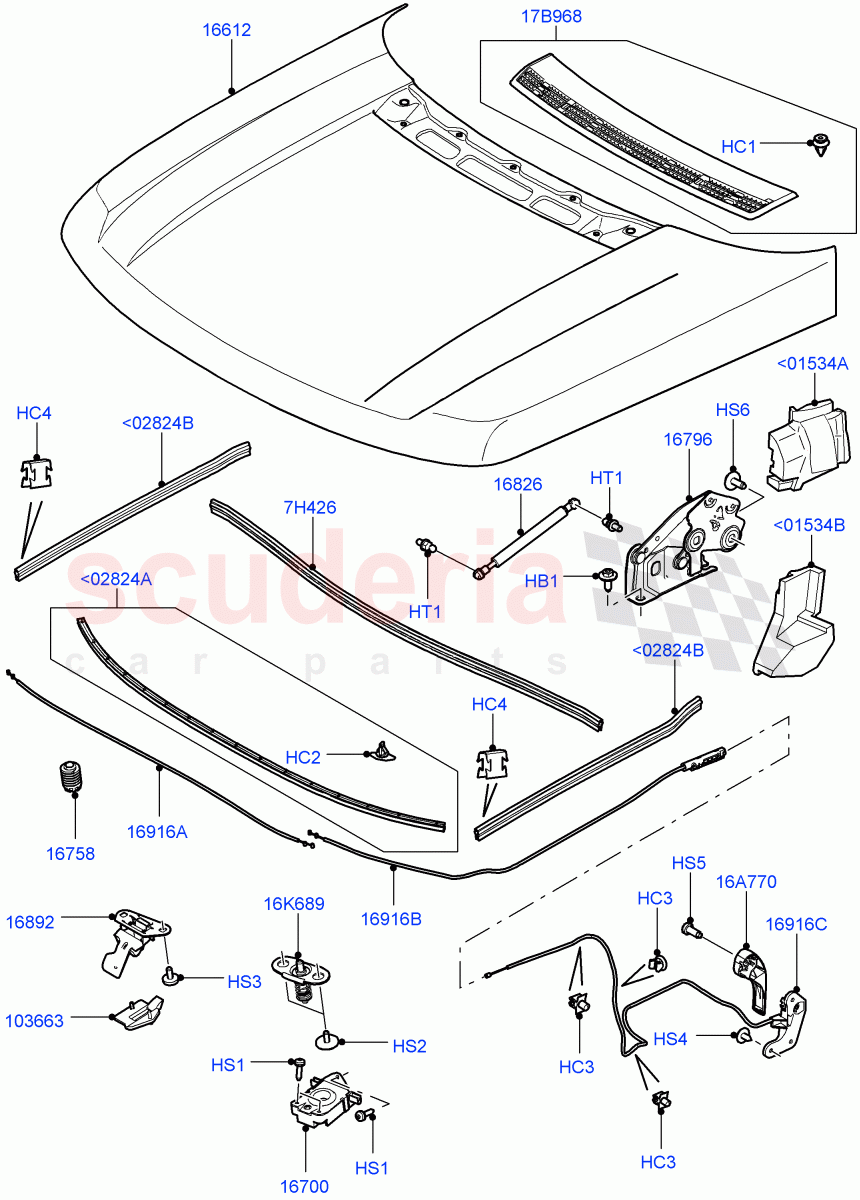

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYG500110	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JYC000070	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYC000010	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013332	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022129	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500310	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP000051	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500390	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP100920	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYR500030	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BKA760010	HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FPS000030	LATCH - HOOD	Enquire	To Order
	FPS000050	LATCH - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CJM100320	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BKB760100	HINGE - HOOD	Enquire	To Order
	BKB760110	HINGE - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BKK760010	STAY - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FPD000023	CATCH - SAFETY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018823	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BKY760040	GUIDE - HOOK HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FSE000041	CABLE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FSE000030	CABLE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011474	CABLE - HOOD CONTROL	Enquire	To Order
	LR011706	CABLE - HOOD CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008371	LEVER - BONNET RELEASE	Enquire	To Order
	LR008372	LEVER - BONNET RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FPJ000061	STRIKER - HOOD LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011475	GRILLE	Enquire	To Order
	LR040668	GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023473	INSULATOR - HOOD	Enquire	To Order
	LR023472	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023475	INSULATOR - HOOD	Enquire	To Order
	LR031809	INSULATOR - FENDER	Enquire	To Order
	LR023474	INSULATOR -HOOD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CJE000063	SEAL - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012017	SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01534A	LR023473	INSULATOR - HOOD	LR023473 INSULATOR - HOOD RH, Upper / From: BA000001	-	1	Enquire
<01534A	LR023472	INSULATOR - HOOD	LR023472 INSULATOR - HOOD LH, Upper / From: BA000001	-	1	Enquire
<01534B	LR023475	INSULATOR - HOOD	LR023475 INSULATOR - HOOD RH, Lower / From: BA000001 / To: BA353657	-	1	Enquire
<01534B	LR031809	INSULATOR - FENDER	LR031809 INSULATOR - FENDER RH, Lower / From: BA353658	-	1	Enquire
<01534B	LR023474	INSULATOR -HOOD	LR023474 INSULATOR -HOOD LH, Lower / From: BA000001 / To: BA353657	-	1	Enquire
<01534B	LR031810	INSULATOR - FENDER	LR031810 INSULATOR - FENDER LH, Lower / From: BA353658	-	1	Enquire
<02824A	CJE000063	SEAL - HOOD	CJE000063 SEAL - HOOD Front, Hood Assy / From: AA000001	-	1	Enquire
<02824B	LR012017	SEAL	LR012017 SEAL Hood Assy, RH/LH / From: AA000001	-	2	Enquire
HB1	AYG500110	BOLT	AYG500110 BOLT Hex Head, M8 X 25MM / From: AA000001	-	2	Enquire
HC1	JYC000070	CLIP	JYC000070 CLIP Front Grille, Hood Assy / From: AA000001	-	9	Enquire
HC2	BYC000010	CLIP	BYC000010 CLIP Hood Assy, Seal / From: AA000001	-	16	Enquire
HC3	LR013332	CLIP - SPECIAL	LR013332 CLIP - SPECIAL 5.0MM / From: AA000001	-	3	Enquire
HC4	LR022129	CLIP	LR022129 CLIP Hood Edge Seal / From: AA000001	-	2	Enquire
HS1	BYP500300	SCREW	BYP500300 SCREW 25MM, Hood Latch, Self Tapping, Torx / From: AA000001	-	3	Enquire
HS2	BYP500310	SCREW	BYP500310 SCREW M6 X 16MM, Striker / From: AA000001	-	2	Enquire
HS3	BYP000051	SCREW AND WASHER	BYP000051 SCREW AND WASHER Hood Catch, M6 x 14MM / From: AA000001	-	2	Enquire
HS4	BYP500390	SCREW - SELF-TAPPING	BYP500390 SCREW - SELF-TAPPING 6.3 X 14MM, Cable Release At Floor Pan / From: AA000001	-	3	Enquire
HS5	FYP100920	SCREW - SELF-TAPPING	FYP100920 SCREW - SELF-TAPPING 5 X 12, Hood Assy, Lever, Release / From: AA000001	-	2	Enquire
HS6	AYP500190	SCREW	AYP500190 SCREW Hood Hinge Bracket To Body, M8X25 / From: AA000001	-	2	Enquire
HT1	BYR500030	STUD	BYR500030 STUD Ball Stud, M8 / From: AA000001	-	2	Enquire
7H426	LR018823	SEAL	LR018823 SEAL Hood Assy, Rear / From: AA000001	-	1	Enquire
16A770	LR008371	LEVER - BONNET RELEASE	LR008371 LEVER - BONNET RELEASE RHD / From: AA000001	-	1	Enquire
16A770	LR008372	LEVER - BONNET RELEASE	LR008372 LEVER - BONNET RELEASE LHD / From: AA000001	-	1	Enquire
16K689	FPJ000061	STRIKER - HOOD LOCK	FPJ000061 STRIKER - HOOD LOCK From: AA000001	-	2	Enquire
17B968	LR011475	GRILLE	LR011475 GRILLE Hood Assy / From: AA000001 / To: CA380500	-	1	Enquire
17B968	LR040668	GRILLE	LR040668 GRILLE Hood Assy / From: CA380501	-	1	Enquire
16612	BKA760010	HOOD	BKA760010 HOOD From: AA000001	-	1	Enquire
16700	FPS000030	LATCH - HOOD	FPS000030 LATCH - HOOD LHD / Hood Assy / From: AA000001	-	2	Enquire
16700	FPS000050	LATCH - HOOD	FPS000050 LATCH - HOOD RHD / Hood Assy / From: AA000001	-	2	Enquire
16758	CJM100320	BUMP STOP	CJM100320 BUMP STOP From: AA000001	-	2	Enquire
16796	BKB760100	HINGE - HOOD	BKB760100 HINGE - HOOD RH / From: AA000001	-	1	Enquire
16796	BKB760110	HINGE - HOOD	BKB760110 HINGE - HOOD LH / From: AA000001	-	1	Enquire
16826	BKK760010	STAY - HOOD	BKK760010 STAY - HOOD From: AA000001	-	2	Enquire
16892	FPD000023	CATCH - SAFETY	FPD000023 CATCH - SAFETY Hood Assy / From: AA000001	-	1	Enquire
16916A	FSE000041	CABLE - CONTROL	FSE000041 CABLE - CONTROL Centre / From: AA000001	-	1	Enquire
16916B	FSE000030	CABLE - CONTROL	FSE000030 CABLE - CONTROL Front / From: AA000001	-	1	Enquire
16916C	LR011474	CABLE - HOOD CONTROL	LR011474 CABLE - HOOD CONTROL RHD / From: AA000001	-	1	Enquire
16916C	LR011706	CABLE - HOOD CONTROL	LR011706 CABLE - HOOD CONTROL LHD / From: AA000001	-	1	Enquire
103663	BKY760040	GUIDE - HOOK HOOD	BKY760040 GUIDE - HOOK HOOD Hood Catch / From: AA000001	-	1	Enquire
