Engine Mounting (3.6L V8 32V Dohc Efi Diesel Lion, 4.4L Dohc Ditc V8 Diesel) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Engine Mounting (3.6L V8 32V DOHC EFi Diesel Lion, 4.4L DOHC DITC V8 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500210 BOLT $2.81 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.50 IN STOCK
Photo Part No Description Price (each) Stock
KYC500020 CLIP $0.45 To Order
SGK500100 CLIP $1.62 To Order
Photo Part No Description Price (each) Stock
RYH000081 NUT - FLANGED $1.00 To Order
Photo Part No Description Price (each) Stock
RYP000171 SCREW $10.70 To Order
Photo Part No Description Price (each) Stock
KYC500040 CONNECTOR $3.77 To Order
Photo Part No Description Price (each) Stock
LR022557 HOSE - VACUUM $97.02 To Order
Photo Part No Description Price (each) Stock
LR022558 HOSE - VACUUM $104.84 To Order
Photo Part No Description Price (each) Stock
LR006583 BRACKET - ENGINE FRONT SUPPORT $275.60 To Order
LR022524 BRACKET - ENGINE FRONT SUPPORT $944.27 To Order
Photo Part No Description Price (each) Stock
1418998 BRACKET - ENGINE FRONT SUPPORT $238.53 To Order
LR022522 BRACKET - ENGINE FRONT SUPPORT $752.74 To Order
Photo Part No Description Price (each) Stock
KKB500730 O RING $168.78 To Order
LR022563 BRACKET - ENGINE SUPPORT $159.62 To Order
Photo Part No Description Price (each) Stock
KKB500740 BRACKET - ENGINE MOUNTING $248.85 To Order
Photo Part No Description Price (each) Stock
KKJ500140 HEAT SHIELD $4.48 To Order
Photo Part No Description Price (each) Stock
KLB500020 SOLENOID $34.20 To Order
Photo Part No Description Price (each) Stock
KKY500110 HOSE - VENT $15.38 To Order
Photo Part No Description Price (each) Stock
KYG500080 BOLT - HEX.HEAD $2.96 To Order
Photo Part No Description Price (each) Stock
KYG500100 BOLT - HEX.HEAD $10.33 To Order
View All

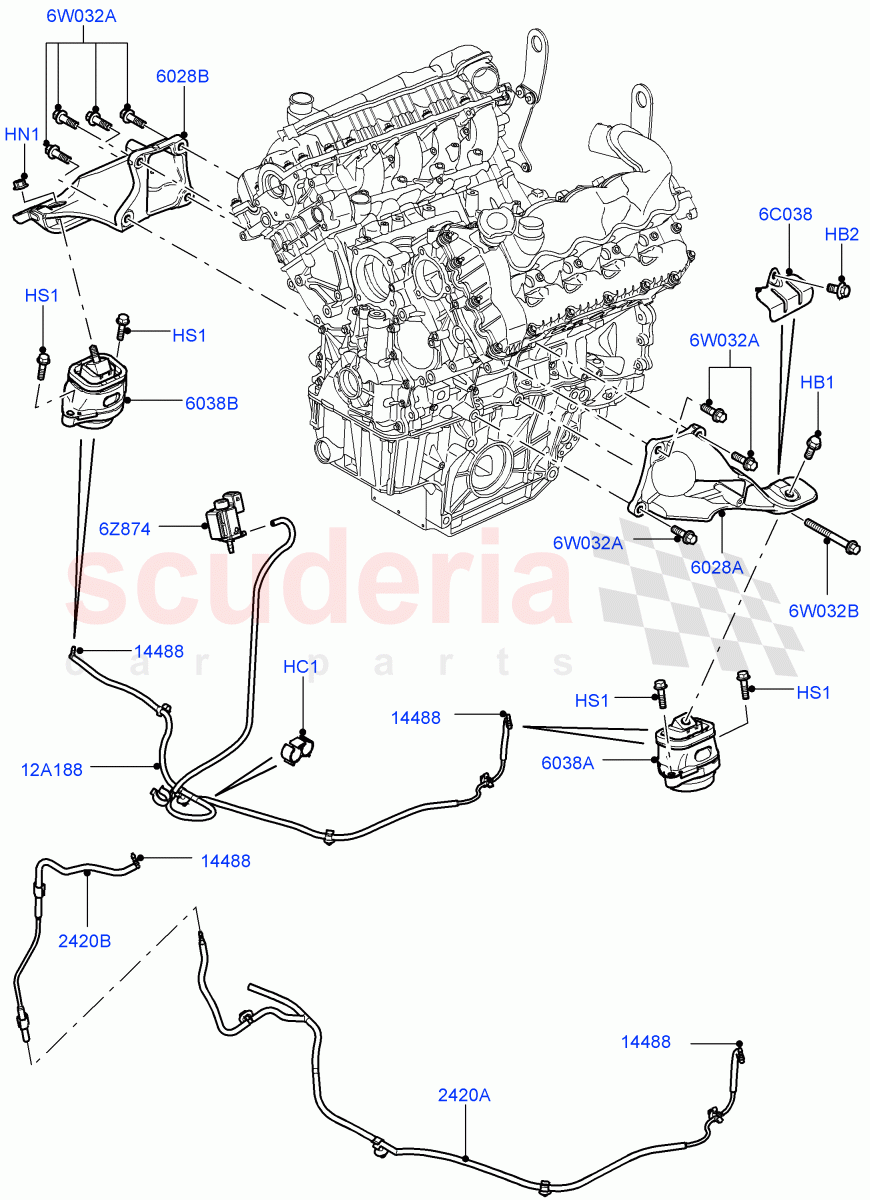

Engine Mounting (3.6L V8 32V DOHC EFi Diesel Lion, 4.4L DOHC DITC V8 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 KYG500210
BOLT
M12 x 36MM / From: AA000001 		$2.81 1
HB2 FS106126
BOLT
3.6L V8 32V DOHC EFi Diesel Lion / Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.50 1
HC1 KYC500020
CLIP
3.6L V8 32V DOHC EFi Diesel Lion / Tube / From: AA000001 		$0.45 1
HC1 SGK500100
CLIP
4.4L DOHC DITC V8 Diesel / Double / From: BA000001 		$1.62 1
HN1 RYH000081
NUT - FLANGED
Flanged, M12 / From: AA000001 		$1.00 1
HS1 RYP000171
SCREW
HEX Flange, M10 x 40MM / From: AA000001 		$10.70 2
6C038 KKJ500140
HEAT SHIELD
3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 		$4.48 1
6W032A KYG500080
BOLT - HEX.HEAD
M12 X 42MM / From: AA000001 		$2.96 7
6W032B KYG500100
BOLT - HEX.HEAD
M12 x 122MM / From: AA000001 		$10.33 1
6Z874 KLB500020
SOLENOID
3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 		$34.20 1
12A188 KKY500110
HOSE - VENT
3.6L V8 32V DOHC EFi Diesel Lion / From: AA000001 		$15.38 1
2420A LR022557
HOSE - VACUUM
4.4L DOHC DITC V8 Diesel / From: BA000001 		$97.02 1
2420B LR022558
HOSE - VACUUM
4.4L DOHC DITC V8 Diesel / From: BA000001 		$104.84 1
6028A LR006583
BRACKET - ENGINE FRONT SUPPORT
LH / From: AA000001 / To: AA999999 		$275.60 1
6028A LR022524
BRACKET - ENGINE FRONT SUPPORT
LH / From: BA000001 		$944.27 1
6028B 1418998
BRACKET - ENGINE FRONT SUPPORT
RH / From: AA000001 / To: AA999999 		$238.53 1
6028B LR022522
BRACKET - ENGINE FRONT SUPPORT
RH / From: BA000001 		$752.74 1
6038A KKB500730
O RING
3.6L V8 32V DOHC EFi Diesel Lion / LH / From: AA000001 / To: AA999999 		$168.78 1
6038A LR022563
BRACKET - ENGINE SUPPORT
3.6L V8 32V DOHC EFi Diesel Lion / LH / From: BA000001 		$159.62 1
6038B KKB500740
BRACKET - ENGINE MOUNTING
3.6L V8 32V DOHC EFi Diesel Lion / RH / From: AA000001 		$248.85 1
14488 KYC500040
CONNECTOR
Straight / From: AA000001 		$3.77 2
