Sliding Roof Mechanism And Controls (Page A) (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

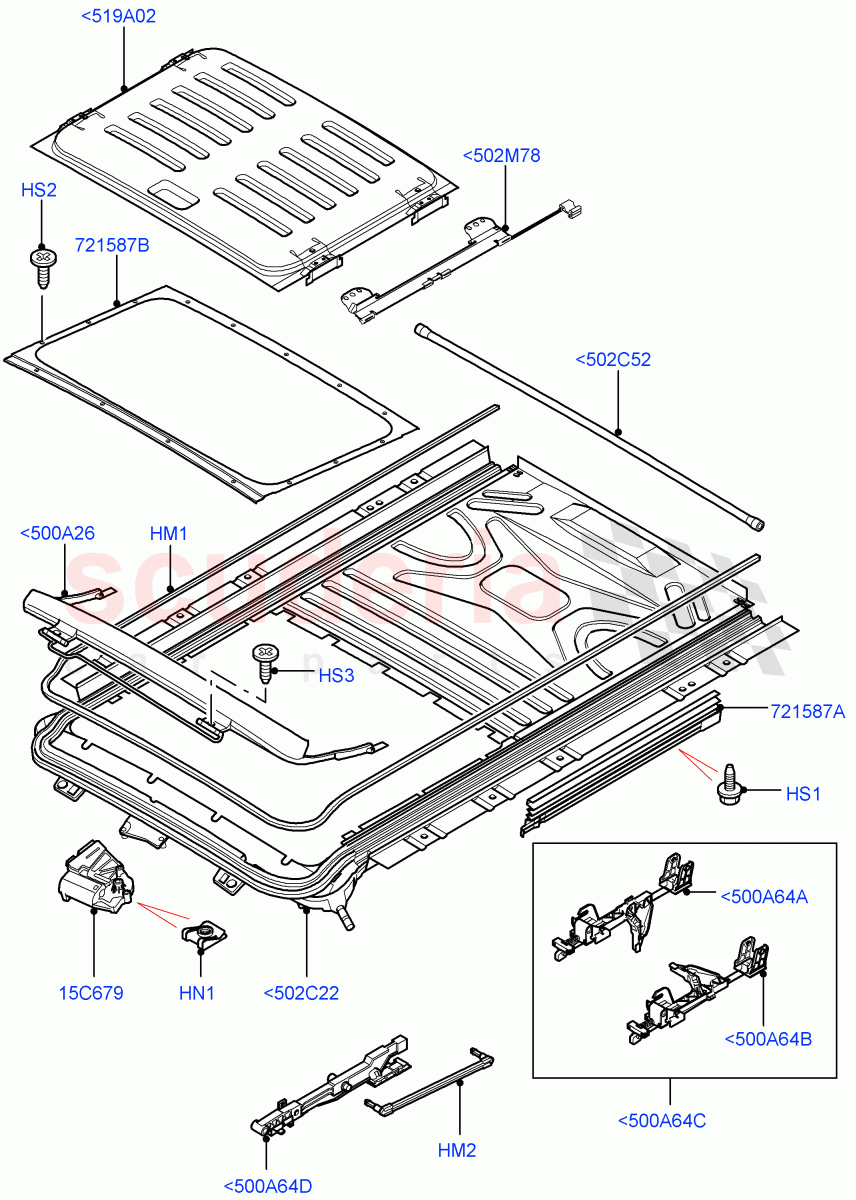

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Sliding Roof Mechanism And Controls (Page A) (Less Armoured) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EGM000010	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYF000050	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XYH500040	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP000161	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP500300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EGN500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018359	MOTOR - WITHOUT DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EFJ000020	DEFLECTOR - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EFP000050	HOUSING - ROOF FRONT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EGU000010	TUBE - WATER DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051837	SLIDE - SLIDING ROOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025429	PANEL - SLIDING ROOF SUNSHADE	Enquire	To Order
	LR025431	PANEL - SLIDING ROOF SUNSHADE	Enquire	To Order
	LR025432	PANEL - SLIDING ROOF SUNSHADE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EFY500040	RETAINER - ROOF TRIM	Enquire	To Order
	EFY500010	RETAINER - ROOF TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EFY000020	RETAINER - ROOF TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049357	GUIDE - ROOF SIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049358	GUIDE - ROOF SIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079192	GUIDE - ROOF SIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EXM000010	GUIDE - SLIDING ROOF	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<500A26	EFJ000020	DEFLECTOR - AIR	EFJ000020 DEFLECTOR - AIR From: AA000001	-	1	Enquire
<500A64A	LR049357	GUIDE - ROOF SIDE RAIL	LR049357 GUIDE - ROOF SIDE RAIL RH / From: AA000001	-	1	Enquire
<500A64B	LR049358	GUIDE - ROOF SIDE RAIL	LR049358 GUIDE - ROOF SIDE RAIL LH / From: AA000001	-	1	Enquire
<500A64C	LR079192	GUIDE - ROOF SIDE RAIL	LR079192 GUIDE - ROOF SIDE RAIL Interior Trim - Alston, Power Tilt/Slide Sun Roof / 2 Piece Kit / From: AA000001	-	1	Enquire
<500A64D	EXM000010	GUIDE - SLIDING ROOF	EXM000010 GUIDE - SLIDING ROOF From: AA000001	-	2	Enquire
<502C22	EFP000050	HOUSING - ROOF FRONT GUIDE	EFP000050 HOUSING - ROOF FRONT GUIDE From: AA000001	-	1	Enquire
<502C52	EGU000010	TUBE - WATER DRAIN	EGU000010 TUBE - WATER DRAIN Flexible / From: AA000001	-	1	Enquire
<502M78	LR051837	SLIDE - SLIDING ROOF	LR051837 SLIDE - SLIDING ROOF Two Piece Kit / From: AA000001	-	1	Enquire
<519A02	LR025429	PANEL - SLIDING ROOF SUNSHADE	LR025429 PANEL - SLIDING ROOF SUNSHADE Interior Trim - TPO, Ivory Headliner / From: AA000001	-	1	Enquire
<519A02	LR025431	PANEL - SLIDING ROOF SUNSHADE	LR025431 PANEL - SLIDING ROOF SUNSHADE Interior Trim - TPO, With Jet Headliner / From: AA000001	-	1	Enquire
<519A02	LR025432	PANEL - SLIDING ROOF SUNSHADE	LR025432 PANEL - SLIDING ROOF SUNSHADE Interior Trim - TPO, Parchment Headliner / From: AA000001	-	1	Enquire
<519A02	LR025433	SUN BLINDS	LR025433 SUN BLINDS Interior Trim - Alston, Ivory Headliner / From: AA000001	-	1	Enquire
<519A02	LR025435	PANEL - SLIDING ROOF SUNSHADE	LR025435 PANEL - SLIDING ROOF SUNSHADE Interior Trim - Alston, With Jet Headliner / From: AA000001	-	1	Enquire
<519A02	LR025436	PANEL - SLIDING ROOF SUNSHADE	LR025436 PANEL - SLIDING ROOF SUNSHADE Interior Trim - Alston, Parchment Headliner / From: AA000001	-	1	Enquire
HM1	EGM000010	GASKET	EGM000010 GASKET With Gasket / From: AA000001	-	1	Enquire
HM2	EYF000050	SPACER	EYF000050 SPACER Spacer / From: AA000001	-	1	Enquire
HN1	XYH500040	NUT - FLANGED	XYH500040 NUT - FLANGED M5, Motor Only / From: AA000001	-	1	Enquire
HS1	EYP000161	SCREW	EYP000161 SCREW Frame Assy, M6 X 10.5MM / From: AA000001	-	10	Enquire
HS2	EYP500300	SCREW	EYP500300 SCREW	-	15	Enquire
HS3	EGN500010	SCREW	EGN500010 SCREW Window Deflector / From: AA000001	-	2	Enquire
15C679	LR018359	MOTOR - WITHOUT DRIVE	LR018359 MOTOR - WITHOUT DRIVE With Electronic Control Unit / From: AA000001	-	1	Enquire
721587A	EFY500040	RETAINER - ROOF TRIM	EFY500040 RETAINER - ROOF TRIM LH, Sunroof Bellows / From: AA000001	-	1	Enquire
721587A	EFY500010	RETAINER - ROOF TRIM	EFY500010 RETAINER - ROOF TRIM RH, Sunroof Bellows / From: AA000001	-	1	Enquire
721587B	EFY000020	RETAINER - ROOF TRIM	EFY000020 RETAINER - ROOF TRIM From: AA000001	-	1	Enquire
