Name: Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) FROMAA000001)
Rating: 4.0 (1 reviews)

Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Rear Doors, Hinges & Weatherstrips (Door And Fixings) ((V) FROMAA000001)

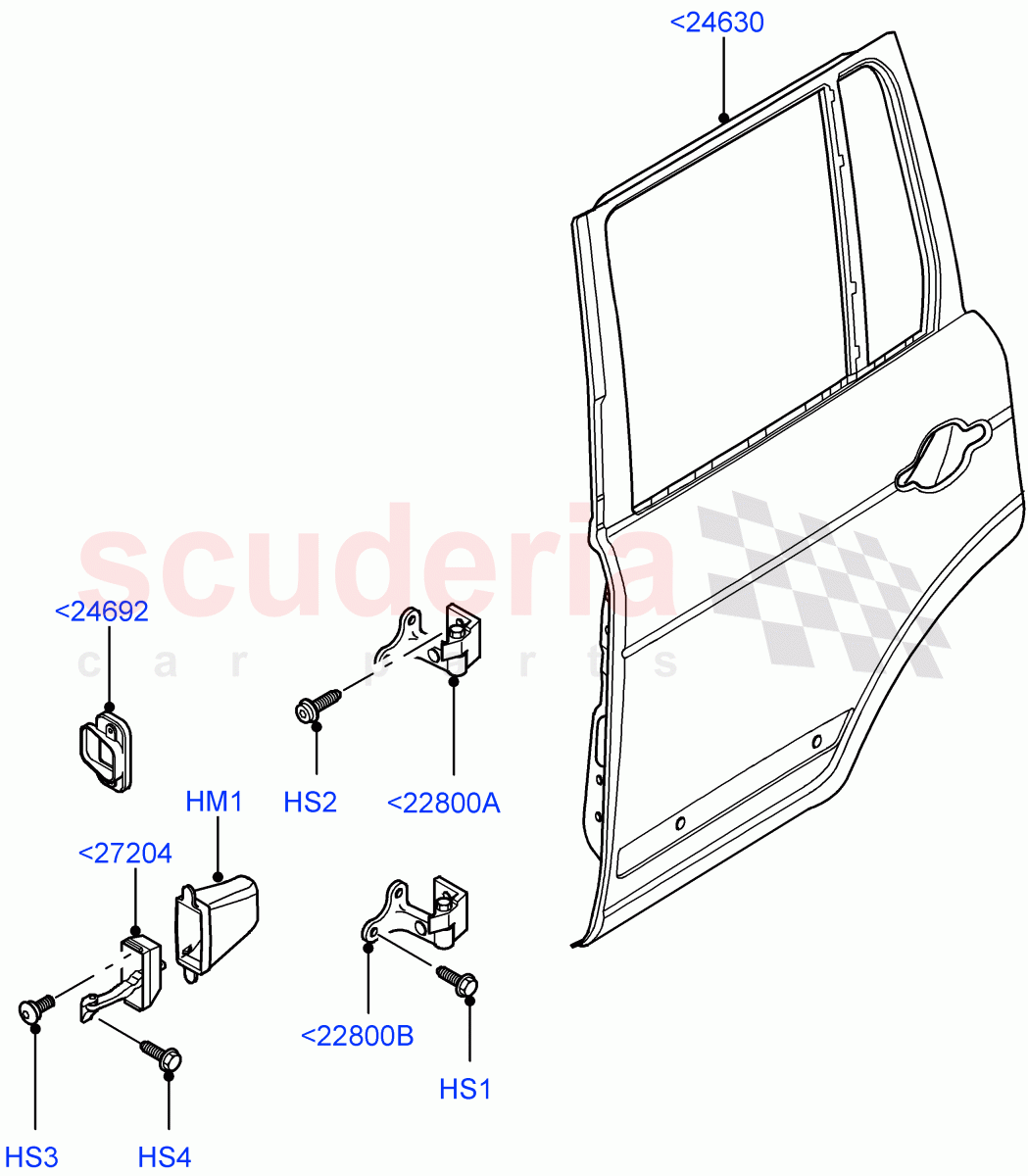

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYA000020	GROMMET	$10.66	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500160	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP000130	SCREW - PAN HEAD	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500230	SCREW	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP500090	SCREW	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018598	DOOR - REAR	$1,364.17	To Order
	LR018599	DOOR - REAR	$1,364.17	To Order
	LR011691	DOOR - REAR	$1,620.16	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR018028	SEAL	$5.31	To Order

Photo	Part No	Description	Price (each)	Stock
	BFH760020	CHECK - DOOR	$21.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018179	HINGE - DOOR	$64.45	To Order
	LR018180	HINGE - DOOR	$64.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018229	HINGE	$79.80	To Order
	LR018230	HINGE	$79.80	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<22800A	LR018179	HINGE - DOOR	LR018179 HINGE - DOOR Less Armoured / RH, Upper / From: AA000001	$64.45	1
<22800A	LR018180	HINGE - DOOR	LR018180 HINGE - DOOR Less Armoured / LH, Upper / From: AA000001	$64.45	1
<22800B	LR018229	HINGE	LR018229 HINGE Less Armoured / RH, Lower / From: AA000001	$79.80	1
<22800B	LR018230	HINGE	LR018230 HINGE Less Armoured / LH, Lower / From: AA000001	$79.80	1
<24630	LR018598	DOOR - REAR	LR018598 DOOR - REAR RH, Less Hinge / From: AA308917 / To: CA373290	$1,364.17	1
<24630	LR018599	DOOR - REAR	LR018599 DOOR - REAR LH, Less Hinge / From: AA308917 / To: CA373290	$1,364.17	1
<24630	LR011691	DOOR - REAR	LR011691 DOOR - REAR RH, Less Hinge / From: AA000001 / To: AA308916	$1,620.16	1
<24630	LR011692	DOOR - REAR - LESS HINGES	LR011692 DOOR - REAR - LESS HINGES LH, Less Hinge / From: AA000001 / To: AA308916	$1,620.16	1
<24630	LR034202	DOOR - REAR	LR034202 DOOR - REAR RH, Less Hinge / From: CA373291	$3,213.51	1
<24630	LR034203	DOOR - REAR	LR034203 DOOR - REAR LH, Less Hinge / From: CA373291	$3,213.51	1
<24692	LR018028	SEAL	LR018028 SEAL From: AA000001	$5.31	2
<27204	BFH760020	CHECK - DOOR	BFH760020 CHECK - DOOR From: AA000001	$21.65	2
HM1	AYA000020	GROMMET	AYA000020 GROMMET Door Stop / From: AA000001	$10.66	2
HS1	AYP500160	SCREW	AYP500160 SCREW M10 / From: AA000001	$1.16	8
HS2	BYP000130	SCREW - PAN HEAD	BYP000130 SCREW - PAN HEAD Door Hinge, Pan Head, Upper / From: AA000001	$1.09	8
HS3	BYP500230	SCREW	BYP500230 SCREW M6 / From: AA000001	$0.45	4
HS4	CYP500090	SCREW	CYP500090 SCREW M6 x 22MM / From: AA000001	$0.74	4
