Name: Front Panels, Aprons & Side Members (Front Panel) ((V) FROMAA000001)
Rating: 4.9 (1 reviews)

View All

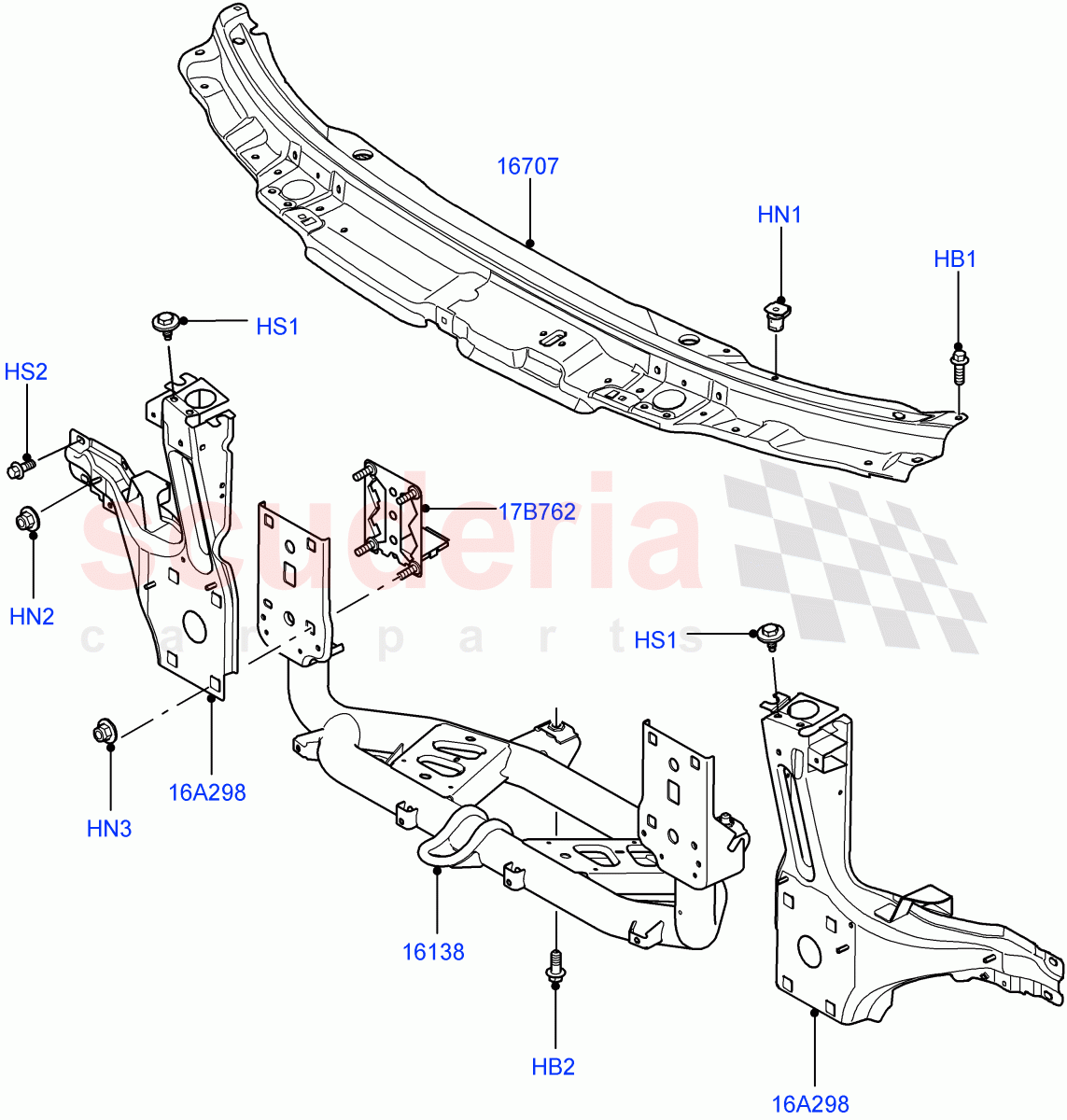

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108252	BOLT - HEX.HEAD	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500400	BOLT	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500110	NUT	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501030	NUT - FLANGED	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	$3.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	$4.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106167	Screw	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016868	SUPPORT - RADIATOR	$262.87	To Order

Photo	Part No	Description	Price (each)	Stock
	ABG760050	SLAM PANEL	$1,335.13	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108252	BOLT - HEX.HEAD	FS108252 BOLT - HEX.HEAD Center Support, Hexagonal Head, M8 X 25MM, Upper / From: AA000001	$0.74	4
HB2	KYG500400	BOLT	KYG500400 BOLT M14 X 35MM, Radiator Support / From: AA000001	$1.16	2
HN1	DYH500110	NUT	DYH500110 NUT 7mm Diameter Holes, Plastic / From: AA000001	$1.58	2
HN2	RYH501030	NUT - FLANGED	RYH501030 NUT - FLANGED Bumper, M6, Reinforcement / From: AA000001	$1.00	3
HN3	RYH500480	NUT AND WASHER - HEX. IN STOCK	RYH500480 NUT AND WASHER - HEX. M10, Reinforcement / From: AA000001 IN STOCK	$3.65	4
HS1	LR083229	SCREW IN STOCK	LR083229 SCREW Center Support, M6 x 18MM, Upper / From: AA000001 IN STOCK	$4.31	4
HS2	FS106167	Screw	FS106167 Screw M6 X 16MM, Mounting Bracket / From: AA000001	$0.18	2
16A298	LR011565	PLATE - HEADLAMP MOUNTING	LR011565 PLATE - HEADLAMP MOUNTING RH, Headlamp / From: AA000001	$259.65	1
16A298	LR011566	PLATE - HEADLAMP MOUNTING	LR011566 PLATE - HEADLAMP MOUNTING LH, Headlamp / From: AA000001	$259.65	1
17B762	ABU760482	BRACKET - BUMPER MOUNTING	ABU760482 BRACKET - BUMPER MOUNTING RH, Bumper / From: AA000001	$81.85	1
17B762	ABU760492	BRACKET - BUMPER MOUNTING	ABU760492 BRACKET - BUMPER MOUNTING LH, Bumper / From: AA000001	$75.89	1
16138	LR016868	SUPPORT - RADIATOR	LR016868 SUPPORT - RADIATOR From: AA000001	$262.87	1
16707	ABG760050	SLAM PANEL	ABG760050 SLAM PANEL From: AA000001	$1,335.13	1

Front Panels, Aprons & Side Members (Front Panel) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]
