Turbocharger (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Turbocharger (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V)...

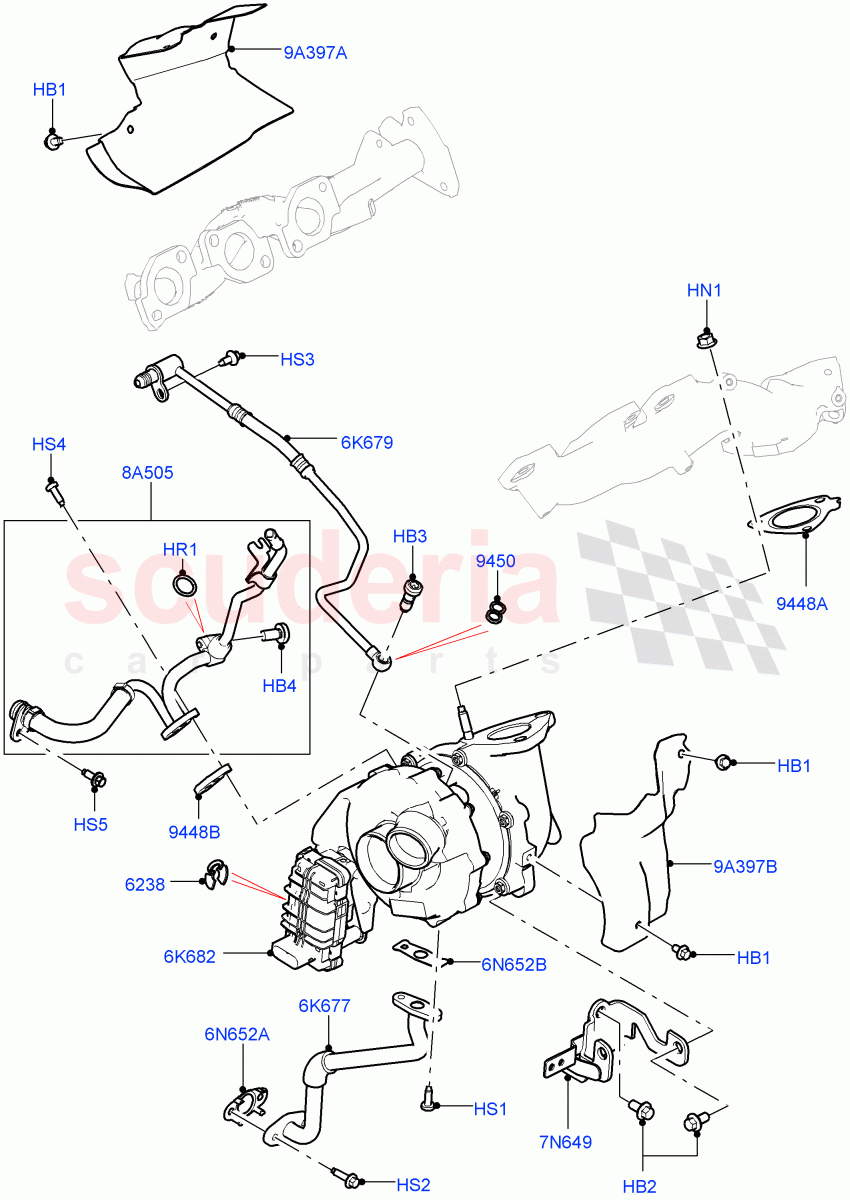

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	Enquire	To Order
	LR113014	BOLT - HEX.HEAD	Enquire	To Order
	LR105437	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023967	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123934	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129336	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006028	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008722	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061978	HOSE - OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072615	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061996	TURBOCHARGER	Enquire	To Order
	LR084606	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062002	BRACKET - TURBOCHARGER	Enquire	To Order
	LR076012	BRACKET - TURBOCHARGER	Enquire	To Order
	LR084897	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061986	TUBE - WATER OUTLET	Enquire	To Order
	LR092499	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084664	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062102	GASKET - TURBOCHARGER COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013234	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013235	GASKET - OIL RETURN HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061993	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061991	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM / From: FA000001 / To: HA367028	-	5	Enquire
HB1	LR113014	BOLT - HEX.HEAD	LR113014 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA386129	-	5	Enquire
HB1	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / From: HA367029 / To: JA386128	-	5	Enquire
HB2	1419376	BOLT	1419376 BOLT Hexagonal Head, M8 X 16MM / From: FA000001	-	4	Enquire
HB3	LR023967	BOLT - BANJO	LR023967 BOLT - BANJO Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed / From: FA000001	-	1	Enquire
HB4	LR123934	BOLT	LR123934 BOLT M6 x 12MM, Torx / From: FA000001	-	1	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / From: FA000001 / To: JA393236	-	3	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / From: JA393237	-	3	Enquire
HR1	LR129336	RING - SEALING	LR129336 RING - SEALING 11.2 X 1.8 / From: FA000001	-	1	Enquire
HS1	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx / From: FA000001	-	2	Enquire
HS2	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM / From: FA000001	-	2	Enquire
HS3	LR000622	SCREW	LR000622 SCREW M6 x 12MM, Tube / From: FA000001	-	1	Enquire
HS4	RYP500960	SCREW	RYP500960 SCREW M6 X 16MM, Torx / From: FA000001	-	2	Enquire
HS5	4408651	SCREW	4408651 SCREW M6 X 14MM / From: FA000001	-	1	Enquire
6K677	LR061978	HOSE - OIL RETURN	LR061978 HOSE - OIL RETURN From: FA000001	-	1	Enquire
6K679	LR072615	PIPE - OIL FEED	LR072615 PIPE - OIL FEED Includes Banjo Bolt / From: FA000001	-	1	Enquire
6K682	LR061996	TURBOCHARGER	LR061996 TURBOCHARGER Primary / From: FA000001 / To: GA270284	-	1	Enquire
6K682	LR084606	TURBOCHARGER	LR084606 TURBOCHARGER Primary / From: GA270285	-	1	Enquire
6N652A	LR013234	GASKET - OIL TUBE	LR013234 GASKET - OIL TUBE Lower / From: FA000001	-	1	Enquire
6N652B	LR013235	GASKET - OIL RETURN HOSE	LR013235 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper / From: FA000001	-	1	Enquire
7N649	LR062002	BRACKET - TURBOCHARGER	LR062002 BRACKET - TURBOCHARGER Turbocharger Inlet / From: FA000001 / To: FA212513	-	1	Enquire
7N649	LR076012	BRACKET - TURBOCHARGER	LR076012 BRACKET - TURBOCHARGER Turbocharger Inlet / From: FA212514 / To: GA270284	-	1	Enquire
7N649	LR084897	BRACKET - TURBOCHARGER	LR084897 BRACKET - TURBOCHARGER Turbocharger Inlet / From: GA270285	-	1	Enquire
8A505	LR061986	TUBE - WATER OUTLET	LR061986 TUBE - WATER OUTLET Cooling For Turbocharger / From: FA000001 / To: GA309797	-	1	Enquire
8A505	LR092499	TUBE - WATER OUTLET	LR092499 TUBE - WATER OUTLET Cooling For Turbocharger / From: GA309798	-	1	Enquire
9A397A	LR061993	HEAT SHIELD - TURBOCHARGER	LR061993 HEAT SHIELD - TURBOCHARGER RH, Manifold To Turbocharger / From: FA000001	-	1	Enquire
9A397B	LR061991	HEAT SHIELD - TURBOCHARGER	LR061991 HEAT SHIELD - TURBOCHARGER Turbocharger / From: FA000001	-	1	Enquire
6238	LR008722	CLIP - SPECIAL	LR008722 CLIP - SPECIAL From: FA000001	-	2	Enquire
9448A	LR084664	GASKET - EXHAUST MANIFOLD	LR084664 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger / From: FA000001	-	1	Enquire
9448B	LR062102	GASKET - TURBOCHARGER COOLING	LR062102 GASKET - TURBOCHARGER COOLING Cooling For Turbocharger / From: FA000001	-	1	Enquire
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer / From: FA000001	-	1	Enquire
