Find Your Part

View All

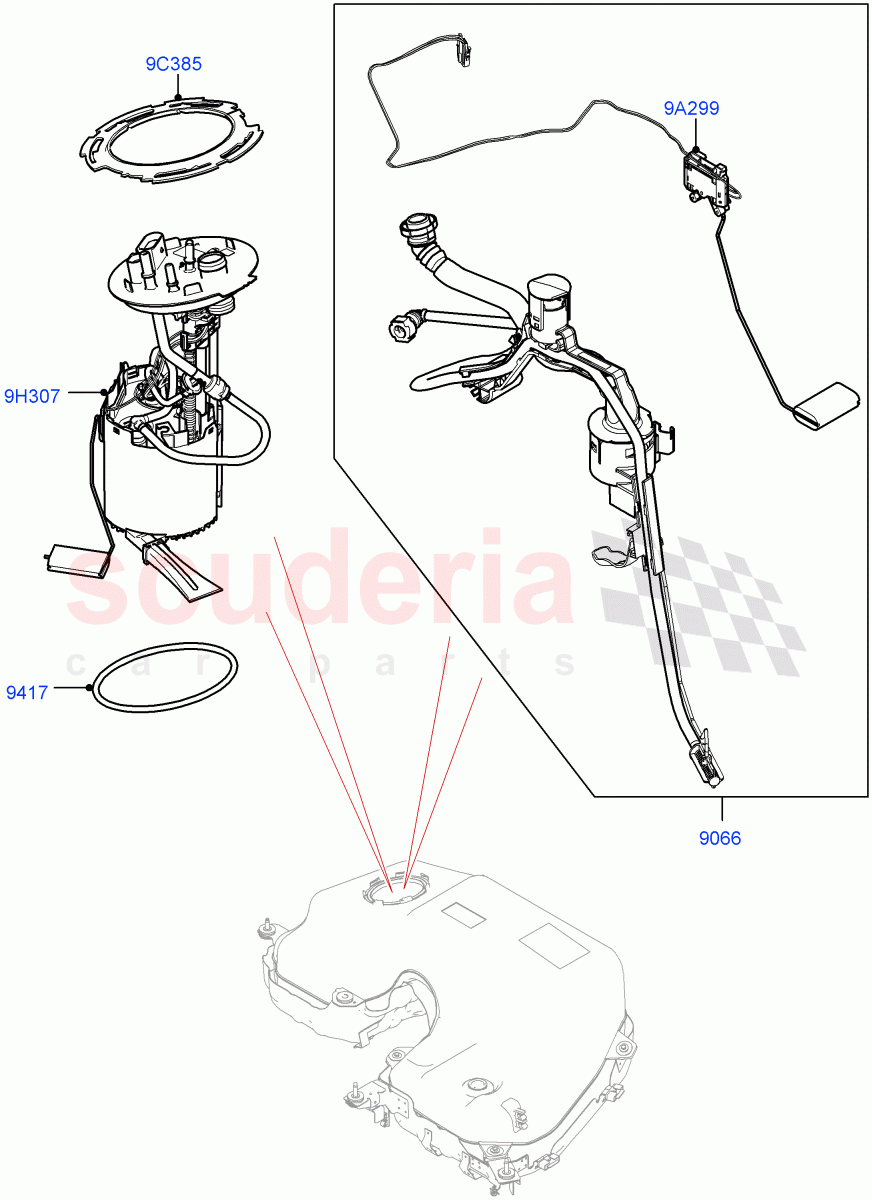

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR086500	SENSOR - FUEL LEVEL	$308.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	LR086518	SENDER - FUEL TANK	$141.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087019	RING - RETAINING	$30.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090629	SENDER AND PUMP	$626.50	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
9A299	LR086518	SENDER - FUEL TANK	LR086518 SENDER - FUEL TANK LH / From: HA000001	$141.93	1
9C385	LR087019	RING - RETAINING	LR087019 RING - RETAINING From: HA000001	$30.17	1
9H307	LR090629	SENDER AND PUMP	LR090629 SENDER AND PUMP From: HA000001	$626.50	1
9066	LR086500	SENSOR - FUEL LEVEL	LR086500 SENSOR - FUEL LEVEL From: HA000001	$308.41	1
9417	LR117476	GASKET ARRIVING SOON	LR117476 GASKET O-Ring / From: HA000001 ARRIVING SOON	$10.05	1
