Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std...

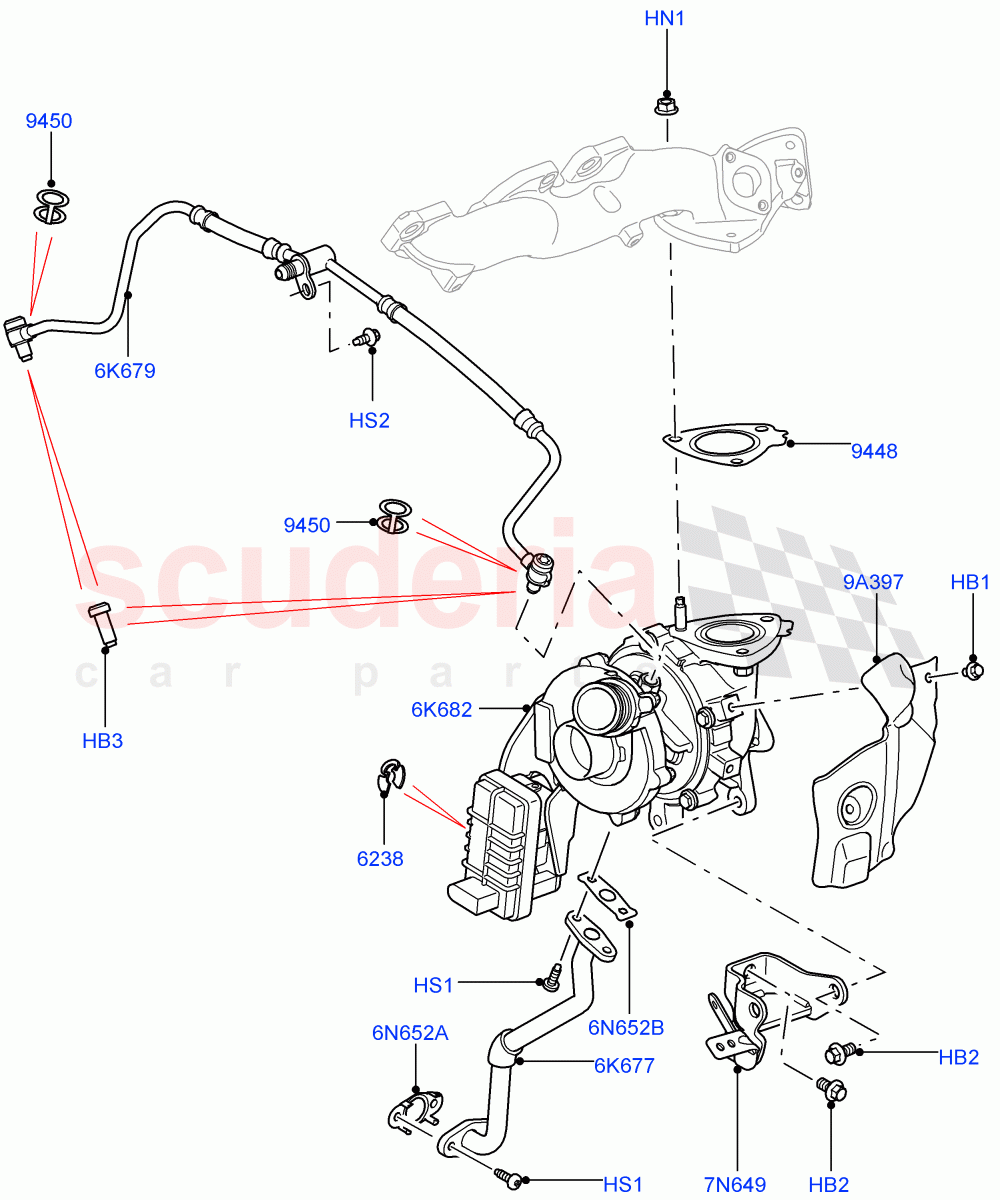

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.04 To Order
LR113014 BOLT - HEX.HEAD $0.95 To Order
LR105437 BOLT - HEX.HEAD $0.84 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $1.54 To Order
Photo Part No Description Price (each) Stock
LR023967 BOLT - BANJO $18.73 To Order
Photo Part No Description Price (each) Stock
LR038607 NUT $4.63 IN STOCK
Photo Part No Description Price (each) Stock
LR006028 SCREW $2.59 To Order
Photo Part No Description Price (each) Stock
LR000622 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
LR008722 CLIP - SPECIAL $3.92 To Order
Photo Part No Description Price (each) Stock
LR084664 GASKET - EXHAUST MANIFOLD $59.17 To Order
LR013236 GASKET - EXHAUST MANIFOLD $42.05 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $12.80 To Order
Photo Part No Description Price (each) Stock
LR013610 HOSE - OIL RETURN $68.45 To Order
Photo Part No Description Price (each) Stock
LR038163 PIPE - OIL FEED $172.52 To Order
Photo Part No Description Price (each) Stock
LR029915 TURBOCHARGER $2,648.51 To Order
LR056369 TURBOCHARGER $2,936.37 To Order
LR049590 TURBOCHARGER $2,070.27 To Order
Photo Part No Description Price (each) Stock
LR013484 BRACKET - TURBOCHARGER $21.68 To Order
LR079477 BRACKET - TURBOCHARGER $25.51 To Order
Photo Part No Description Price (each) Stock
LR013615 HEAT SHIELD - TURBOCHARGER $31.93 To Order
Photo Part No Description Price (each) Stock
LR013234 GASKET - OIL TUBE $5.31 To Order
Photo Part No Description Price (each) Stock
LR013235 GASKET - OIL RETURN HOSE $4.94 To Order
View All
Turbocharger (LH Side - Primary) (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / To: HA367028 		$1.04 3
HB1 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA386129 		$0.95 3
HB1 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / From: HA367029 / To: JA386128 		$0.84 3
HB2 1419376
BOLT
Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly 		$1.54 3
HB3 LR023967
BOLT - BANJO
Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed 		$18.73 2
HN1 LR038607
NUT
M8, Turbocharger Inlet
IN STOCK 		$4.63 3
HS1 LR006028
SCREW
M6 X 16MM, Torx, Tube - Oil Return 		$2.59 4
HS2 LR000622
SCREW
M6 x 12MM, Tube 		$0.58 1
6K677 LR013610
HOSE - OIL RETURN 		$68.45 1
6K679 LR038163
PIPE - OIL FEED
Includes Banjo Bolt 		$172.52 1
6K682 LR029915
TURBOCHARGER
LH, New Part-Please Check For Reman Version, Primary / To: EA144458 		$2,648.51 1
6K682 LR056369
TURBOCHARGER
LH, New Part-Please Check For Reman Version, Primary / From: EA144459 		$2,936.37 1
6K682 LR049590
TURBOCHARGER
LH, Primary, Remanufactured Part 		$2,070.27 1
6N652A LR013234
GASKET - OIL TUBE
Lower, Tube - Oil Return 		$5.31 1
6N652B LR013235
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper 		$4.94 1
7N649 LR013484
BRACKET - TURBOCHARGER
Turbocharger / To: FA999999 		$21.68 1
7N649 LR079477
BRACKET - TURBOCHARGER
Turbocharger / From: GA000001 		$25.51 1
9A397 LR013615
HEAT SHIELD - TURBOCHARGER
LH, Turbocharger 		$31.93 1
6238 LR008722
CLIP - SPECIAL 		$3.92 2
9448 LR084664
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / From: FA000001 		$59.17 1
9448 LR013236
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / To: EA999999 		$42.05 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer 		$12.80 2
