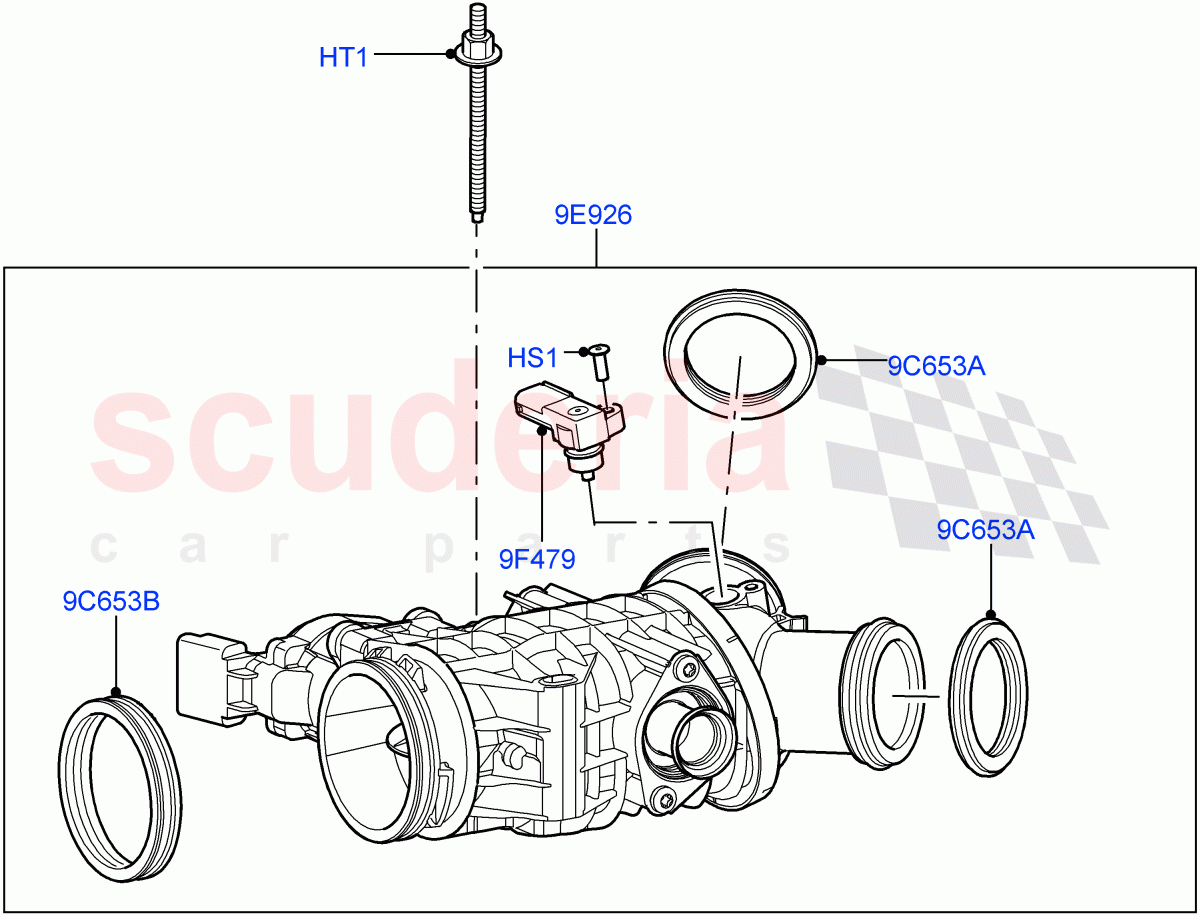

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008753	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316035	STUD	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR019130	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316152	SEAL - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008353	SEAL - THROTTLE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR008753	SCREW	LR008753 SCREW 5 X 16MM, MAP Sensor	-	1	Enquire
HT1	1316035	STUD	1316035 STUD M6 X 65 + M6 X 12, Throttle	-	2	Enquire
9C653A	1316152	SEAL - THROTTLE	1316152 SEAL - THROTTLE Rear	-	2	Enquire
9C653B	LR008353	SEAL - THROTTLE	LR008353 SEAL - THROTTLE Front	-	1	Enquire
9E926	LR181136	TUBE	LR181136 TUBE 3.0L 24V V6 Turbo Diesel Std Flow / To: DA110206	-	1	Enquire
9E926	LR049446	THROTTLE BODY AND MOTOR	LR049446 THROTTLE BODY AND MOTOR 3.0L 24V V6 Turbo Diesel Std Flow / From: DA110207 / To: EA999999	-	1	Enquire
9E926	LR062478	THROTTLE BODY AND MOTOR	LR062478 THROTTLE BODY AND MOTOR 3.0 V6 Diesel Electric Hybrid Eng / From: EA000001 / To: GA245486	-	1	Enquire
9E926	LR076022	THROTTLE BODY AND MOTOR	LR076022 THROTTLE BODY AND MOTOR 3.0L 24V V6 Turbo Diesel Std Flow / From: FA000001 / To: FA999999	-	1	Enquire
9E926	LR079230	THROTTLE BODY AND MOTOR	LR079230 THROTTLE BODY AND MOTOR 3.0L 24V V6 Turbo Diesel Std Flow / From: GA000001	-	1	Enquire
9E926	LR082645	THROTTLE BODY AND MOTOR	LR082645 THROTTLE BODY AND MOTOR 3.0 V6 Diesel Electric Hybrid Eng / From: GA245487	-	1	Enquire
9E926	LR061958	THROTTLE BODY AND MOTOR	LR061958 THROTTLE BODY AND MOTOR 3.0 V6 D Low MT ROW / From: HA000001	-	1	Enquire
9F479	LR019130	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR019130 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP)	-	1	Enquire
