Turbocharger (RH Side - Secondary) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Turbocharger (RH Side - Secondary) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng,...

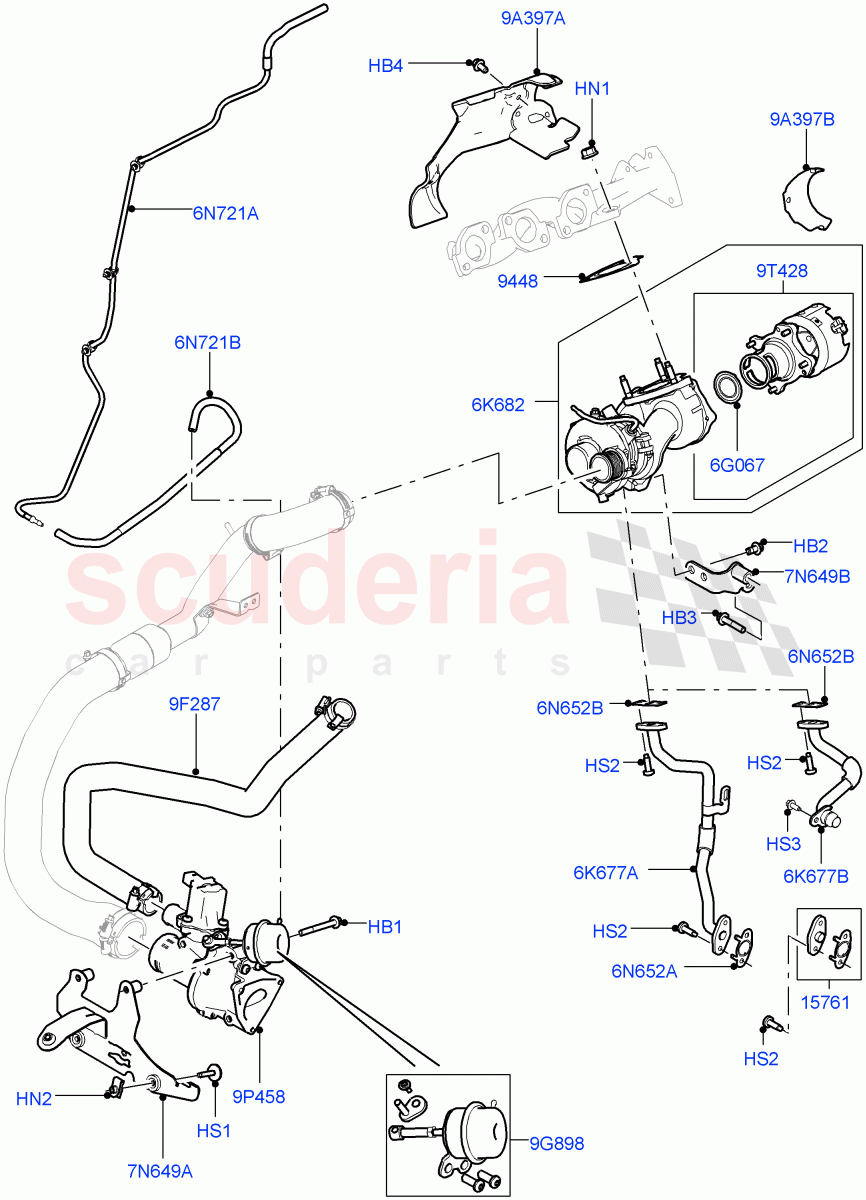

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106116	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000628	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	Enquire	To Order
	LR113014	BOLT - HEX.HEAD	Enquire	To Order
	LR105437	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038607	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006028	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084664	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR013236	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044555	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020589	SEAL - TURBINE SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038620	TURBOCHARGER	Enquire	To Order
	LR056370	TURBOCHARGER	Enquire	To Order
	LR063777	TURBOCHARGER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036479	HOSE - AIR	Enquire	To Order
	LR062026	HOSE - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033284	KIT - ACTUATOR SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035450	VALVE - SHUT-OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066431	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order
	LR066430	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order
	LR116634	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013611	HOSE - OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044556	HOSE - OIL RETURN	Enquire	To Order
	LR044556	HOSE - OIL RETURN	Enquire	To Order
	LR087351	HOSE - OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013234	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078880	GASKET - OIL RETURN HOSE	Enquire	To Order
	LR087348	GASKET - OIL RETURN HOSE	Enquire	To Order
	LR013235	GASKET - OIL RETURN HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035477	PIPE - VAC CONTROL TO TURBO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035486	PIPE - VAC CONTROL TO TURBO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038277	BRACKET - SUPPORT - SHUT OFF VALVE	Enquire	To Order
	LR058373	BRACKET - SUPPORT - SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047785	Bracket - Support	Enquire	To Order
	LR050528	BRACKET - TURBOCHARGER	Enquire	To Order
	LR063745	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013613	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013602	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB106116	BOLT - HEX.HEAD	FB106116 BOLT - HEX.HEAD M6 x 55MM, Shut Off Valve	-	3	Enquire
HB2	1419376	BOLT	1419376 BOLT Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly	-	3	Enquire
HB3	LR000628	BOLT	LR000628 BOLT Bracket, Hexagonal Head, M8 x 40MM, Turbocharger Assembly	-	1	Enquire
HB4	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM / To: HA367028	-	3	Enquire
HB4	LR113014	BOLT - HEX.HEAD	LR113014 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA386129	-	3	Enquire
HB4	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / From: HA367029 / To: JA386128	-	3	Enquire
HN1	LR038607	NUT	LR038607 NUT M8, Turbocharger Inlet	-	3	Enquire
HN2	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6	-	2	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Bracket, Hexagonal Head, M6X30, Shut Off Valve	-	3	Enquire
HS2	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx, Turbocharger	-	2	Enquire
HS3	RYG500160	SCREW	RYG500160 SCREW Cylinder Block, Hexagonal Head, M6 X 14MM	-	1	Enquire
6G067	LR020589	SEAL - TURBINE SHUT OFF VALVE	LR020589 SEAL - TURBINE SHUT OFF VALVE Repair Kit, Turbine Shut Off Valve	-	1	Enquire
6K677A	LR013611	HOSE - OIL RETURN	LR013611 HOSE - OIL RETURN 3.0L 24V DOHC V6 TC Diesel / Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial	-	1	Enquire
6K677B	LR044556	HOSE - OIL RETURN	LR044556 HOSE - OIL RETURN 3.0L 24V DOHC V6 TC Diesel / Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, For Engine Serial Number Later Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial / To: GA283159	-	1	Enquire
6K677B	LR044556	HOSE - OIL RETURN	LR044556 HOSE - OIL RETURN 3.0 V6 D Gen2 Twin Turbo / From: EA000001 / To: GA283159	-	1	Enquire
6K677B	LR087351	HOSE - OIL RETURN	LR087351 HOSE - OIL RETURN From: GA283160	-	1	Enquire
6K682	LR038620	TURBOCHARGER	LR038620 TURBOCHARGER RH, New Part-Please Check For Reman Version, Secondary / To: EA144458	-	1	Enquire
6K682	LR056370	TURBOCHARGER	LR056370 TURBOCHARGER RH, New Part-Please Check For Reman Version, Secondary / From: EA144459 / To: EA173578	-	1	Enquire
6K682	LR063777	TURBOCHARGER	LR063777 TURBOCHARGER 3.0L 24V V6 Turbo Diesel Std Flow / RH, New Part-Please Check For Reman Version, Secondary / From: EA173579 / To: KA544331	-	1	Enquire
6K682	LR062000	TURBOCHARGER	LR062000 TURBOCHARGER 3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: FA000001 / To: GA256262	-	1	Enquire
6K682	LR092675	TURBOCHARGER	LR092675 TURBOCHARGER 3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: GA256263 / To: JA399340	-	1	Enquire
6K682	LR116631	TURBOCHARGER	LR116631 TURBOCHARGER 3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: JA399341	-	1	Enquire
6K682	LR128704	TURBOCHARGER	LR128704 TURBOCHARGER 3.0 V6 Diesel Electric Hybrid Eng / RH, New Part-Please Check For Reman Version, Secondary / From: KA544332	-	1	Enquire
6K682	LR082293	TURBOCHARGER	LR082293 TURBOCHARGER 3.0L 24V V6 Turbo Diesel Std Flow / RH, Remanufactured Part, Secondary	-	1	Enquire
6N652A	LR013234	GASKET - OIL TUBE	LR013234 GASKET - OIL TUBE For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Lower, Tube - Oil Return	-	1	Enquire
6N652B	LR078880	GASKET - OIL RETURN HOSE	LR078880 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper / From: FA212514 / To: GA999999	-	1	Enquire
6N652B	LR087348	GASKET - OIL RETURN HOSE	LR087348 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper / From: HA000001	-	1	Enquire
6N652B	LR013235	GASKET - OIL RETURN HOSE	LR013235 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper / To: FA212513	-	1	Enquire
6N721A	LR035477	PIPE - VAC CONTROL TO TURBO VALVE	LR035477 PIPE - VAC CONTROL TO TURBO VALVE Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control	-	1	Enquire
6N721B	LR035486	PIPE - VAC CONTROL TO TURBO VALVE	LR035486 PIPE - VAC CONTROL TO TURBO VALVE Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control	-	1	Enquire
7N649A	LR038277	BRACKET - SUPPORT - SHUT OFF VALVE	LR038277 BRACKET - SUPPORT - SHUT OFF VALVE Shut Off Valve / To: EA158568	-	1	Enquire
7N649A	LR058373	BRACKET - SUPPORT - SHUT OFF VALVE	LR058373 BRACKET - SUPPORT - SHUT OFF VALVE Shut Off Valve / From: EA158569	-	1	Enquire
7N649B	LR047785	Bracket - Support	LR047785 Bracket - Support Turbocharger / To: EA128397	-	1	Enquire
7N649B	LR050528	BRACKET - TURBOCHARGER	LR050528 BRACKET - TURBOCHARGER Turbocharger / From: EA128398 / To: EA172483	-	1	Enquire
7N649B	LR063745	BRACKET - TURBOCHARGER	LR063745 BRACKET - TURBOCHARGER Turbocharger / From: EA172484	-	1	Enquire
9A397A	LR013613	HEAT SHIELD - EXHAUST MANIFOLD	LR013613 HEAT SHIELD - EXHAUST MANIFOLD RH, Manifold To Turbocharger	-	1	Enquire
9A397B	LR013602	HEAT SHIELD - TURBOCHARGER	LR013602 HEAT SHIELD - TURBOCHARGER RH, Turbocharger	-	1	Enquire
9F287	LR036479	HOSE - AIR	LR036479 HOSE - AIR 3.0L 24V DOHC V6 TC Diesel / Compressed Air Recirculation, From Valve To Air Inlet Hose	-	1	Enquire
9F287	LR062026	HOSE - AIR	LR062026 HOSE - AIR 3.0 V6 D Gen2 Twin Turbo / Compressed Air Recirculation, From Valve To Air Inlet Hose / From: FA000001	-	1	Enquire
9G898	LR033284	KIT - ACTUATOR SHUT OFF VALVE	LR033284 KIT - ACTUATOR SHUT OFF VALVE Compressed Air Recirculation And Shut Off Valve	-	1	Enquire
9P458	LR035450	VALVE - SHUT-OFF	LR035450 VALVE - SHUT-OFF Compressed Air Recirculation, Shut Off Valve	-	1	Enquire
9T428	LR066431	KIT - TURBINE SHUT OFF VALVE	LR066431 KIT - TURBINE SHUT OFF VALVE 3.0L 24V DOHC V6 TC Diesel / Actuator, Seals And Fixing, Repair Kit / To: KA544331	-	1	Enquire
9T428	LR066430	KIT - TURBINE SHUT OFF VALVE	LR066430 KIT - TURBINE SHUT OFF VALVE 3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: FA000001 / To: JA399340	-	1	Enquire
9T428	LR116634	KIT - TURBINE SHUT OFF VALVE	LR116634 KIT - TURBINE SHUT OFF VALVE 3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: JA399341	-	1	Enquire
9T428	LR128703	KIT - TURBINE SHUT OFF VALVE	LR128703 KIT - TURBINE SHUT OFF VALVE 3.0L 24V V6 Turbo Diesel Std Flow / Actuator, Seals And Fixing, Repair Kit / From: KA544332	-	1	Enquire
9448	LR084664	GASKET - EXHAUST MANIFOLD	LR084664 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger / From: FA000001	-	1	Enquire
9448	LR013236	GASKET - EXHAUST MANIFOLD	LR013236 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger / To: EA999999	-	1	Enquire
15761	LR044555	PLUG - BLANKING	LR044555 PLUG - BLANKING 3.0 V6 Diesel / Please Refer To Technical Service Bulletin LTB00487, With Gasket / From: DA124719	-	1	Enquire
