Rear Exhaust System (3.0 V6 D Low Mt Row) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 D Low MT ROW) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RYG500440 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $23.23 To Order
Photo Part No Description Price (each) Stock
LR040136 PIPE - EXHAUST $695.11 To Order
LR044562 MUFFLER - CENTRE $436.66 To Order
Photo Part No Description Price (each) Stock
LR036441 CLAMP - EXHAUST $29.81 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $81.53 To Order
Photo Part No Description Price (each) Stock
LR105222 MUFFLER - REAR $796.99 To Order
Photo Part No Description Price (each) Stock
LR105226 MUFFLER - REAR $796.99 To Order
Photo Part No Description Price (each) Stock
LR110251 BRACKET - REAR MUFFLER $30.11 To Order
Photo Part No Description Price (each) Stock
LR110252 BRACKET - REAR MUFFLER $30.11 To Order
Photo Part No Description Price (each) Stock
LR044964 BRACKET - REAR MUFFLER $45.18 To Order
LR136419 BRACKET - REAR MUFFLER $44.28 To Order
Photo Part No Description Price (each) Stock
LR044965 BRACKET - REAR MUFFLER $45.18 To Order
LR136420 BRACKET - REAR MUFFLER $44.28 To Order
View All

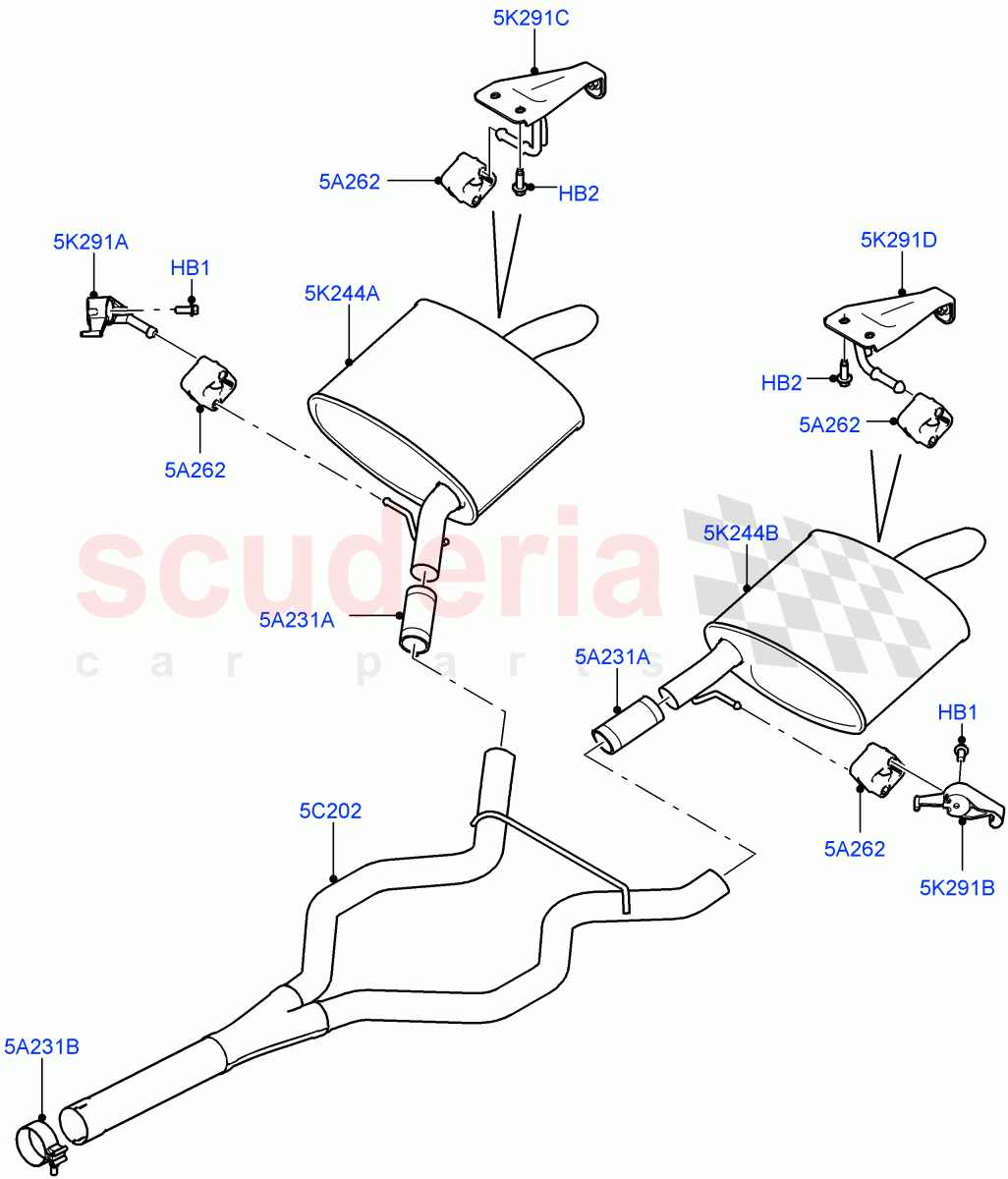

Rear Exhaust System (3.0 V6 D Low MT ROW) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Front, Hexagonal Head, M8 X 20MM, RH And LH / From: JA000001
IN STOCK 		$2.23 2
HB2 RYG500440
BOLT
Hexagonal Head, M8 X 20MM, Rear / From: JA000001 		$0.99 4
5A231A LR036441
CLAMP - EXHAUST
70MM, Front / From: JA000001 		$29.81 1
5A231B WCL500030
CLAMP - EXHAUST
55MM, For Rear Muffler / From: JA000001 		$81.53 2
5A262 LR090360
INSULATOR - RUBBER
From: JA000001 		$23.23 4
5C202 LR040136
PIPE - EXHAUST
Standard Wheelbase / From: JA000001 		$695.11 1
5C202 LR044562
MUFFLER - CENTRE
Long Wheelbase / From: JA000001 		$436.66 1
5K244A LR105222
MUFFLER - REAR
RH / From: JA000001 		$796.99 1
5K244B LR105226
MUFFLER - REAR
LH / From: JA000001 		$796.99 1
5K291A LR110251
BRACKET - REAR MUFFLER
For Rear Muffler, RH Front / From: JA000001 		$30.11 1
5K291B LR110252
BRACKET - REAR MUFFLER
For Rear Muffler, LH Front / From: JA000001 		$30.11 1
5K291C LR044964
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: JA000001 / To: KA567510 		$45.18 1
5K291C LR136419
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: KA567511 		$44.28 1
5K291D LR044965
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: JA000001 / To: KA567510 		$45.18 1
5K291D LR136420
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: KA567511 		$44.28 1
