Front Exhaust System (3.0L 24V V6 Turbo Diesel Std Flow, Proconve L6 Emissions, 3.0 V6 Diesel...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0L 24V V6 Turbo Diesel Std Flow, Proconve L6 Emissions, 3.0 V6 Diesel...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
WYG500060 BOLT $2.53 To Order
Photo Part No Description Price (each) Stock
LR049850 CLIP $33.69 To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.85 To Order
Photo Part No Description Price (each) Stock
LR038810 PIPE - EXHAUST $619.80 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $77.02 To Order
Photo Part No Description Price (each) Stock
LR025064 INSULATOR - RUBBER $28.55 To Order
Photo Part No Description Price (each) Stock
LR039507 FILTER - DIESEL PARTICLE $3,006.60 To Order
LR068327 FILTER - DIESEL PARTICLE $2,711.37 To Order
LR087666 FILTER - DIESEL PARTICLE $3,156.91 To Order
Photo Part No Description Price (each) Stock
LR035843 BRACKET - EXHAUST PIPE MOUNTING $21.07 To Order
LR068325 BRACKET - EXHAUST PIPE MOUNTING $41.48 To Order
Photo Part No Description Price (each) Stock
LR016621 GASKET - EXHAUST PIPE $19.69 To Order
Photo Part No Description Price (each) Stock
LR016619 GASKET - EXHAUST PIPE $20.99 IN STOCK
Photo Part No Description Price (each) Stock
LR042469 DAMPER - DAMPING MASS $56.85 To Order
Photo Part No Description Price (each) Stock
LR042468 DAMPER - DAMPING MASS $67.61 To Order
Photo Part No Description Price (each) Stock
LR049848 TUBE - EXHAUST PRESSURE $49.08 To Order
Photo Part No Description Price (each) Stock
LR049849 TUBE - EXHAUST PRESSURE $48.11 To Order
View All

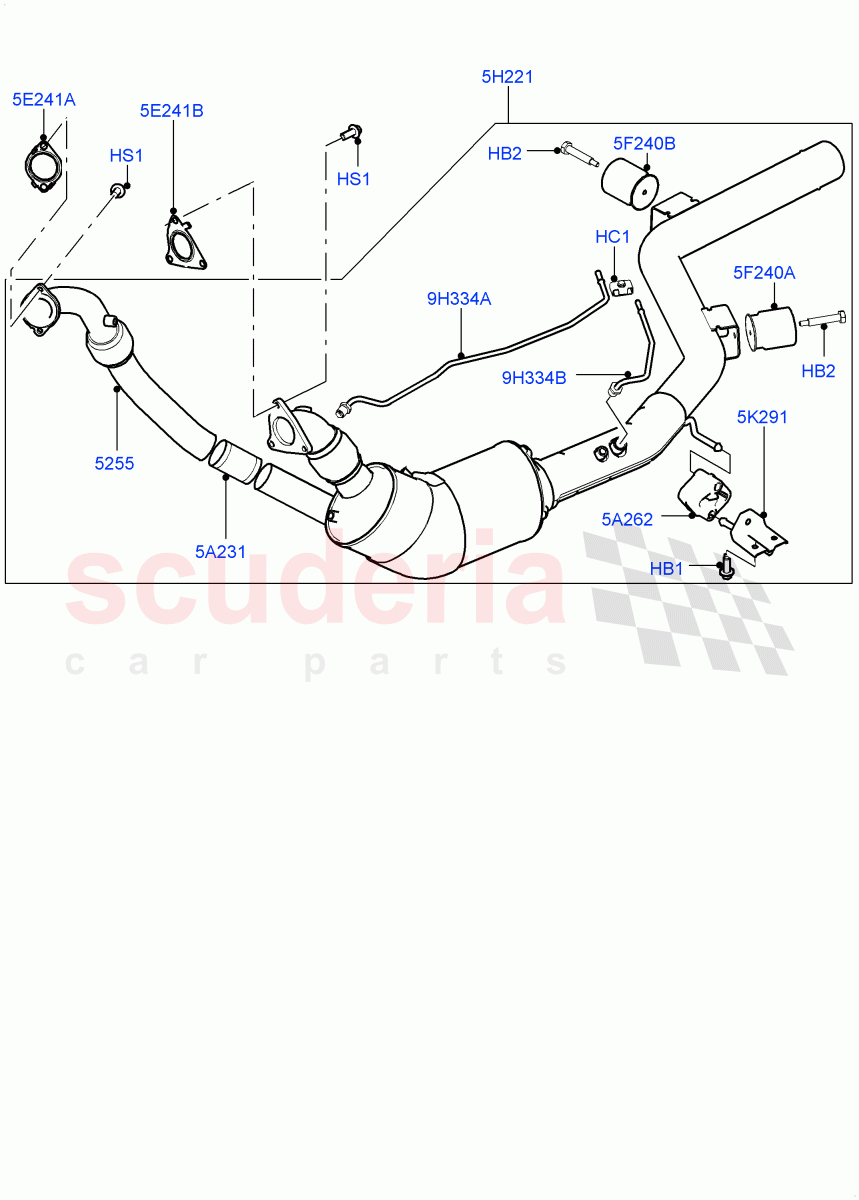

Front Exhaust System (3.0L 24V V6 Turbo Diesel Std Flow, Proconve L6 Emissions, 3.0 V6 Diesel Electric Hybrid Eng, Stage V Plus DPF, 3.0L 24V DOHC V6 TC Diesel) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM
IN STOCK 		$2.23 1
HB2 WYG500060
BOLT
M8 X 70 - 8.8, Self Locking 		$2.53 2
HC1 LR049850
CLIP
Exhaust Gas Pressure, Tube 		$33.69 1
HS1 WYP000025
SCREW
Hexagonal Head, M8 X 20MM 		$2.85 5
5A231 WCL500020
CLAMP - EXHAUST
50MM, Downpipe 		$77.02 1
5A262 LR025064
INSULATOR - RUBBER 		$28.55 1
5E241A LR016621
GASKET - EXHAUST PIPE
RH, Downpipe 		$19.69 1
5E241B LR016619
GASKET - EXHAUST PIPE
LH, Downpipe
IN STOCK 		$20.99 1
5F240A LR042469
DAMPER - DAMPING MASS
Front 		$56.85 1
5F240B LR042468
DAMPER - DAMPING MASS
Rear 		$67.61 1
5H221 LR039507
FILTER - DIESEL PARTICLE
Downpipe / To: EA196785 		$3,006.60 1
5H221 LR068327
FILTER - DIESEL PARTICLE
Downpipe / From: EA196786 / To: GA292624 		$2,711.37 1
5H221 LR087666
FILTER - DIESEL PARTICLE
Downpipe / From: GA292625 		$3,156.91 1
5K291 LR035843
BRACKET - EXHAUST PIPE MOUNTING
Front / To: FA999999 		$21.07 1
5K291 LR068325
BRACKET - EXHAUST PIPE MOUNTING
Front / From: GA000001 		$41.48 1
9H334A LR049848
TUBE - EXHAUST PRESSURE
Exhaust Gas Pressure, Front 		$49.08 1
9H334B LR049849
TUBE - EXHAUST PRESSURE
Exhaust Gas Pressure, Rear 		$48.11 1
5255 LR038810
PIPE - EXHAUST
Downpipe 		$619.80 1
