Front Exhaust System (3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions, LEV 160, Japan Requirements, Japanese Emission + DPF) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions, LEV 160, Japan Requirements,...

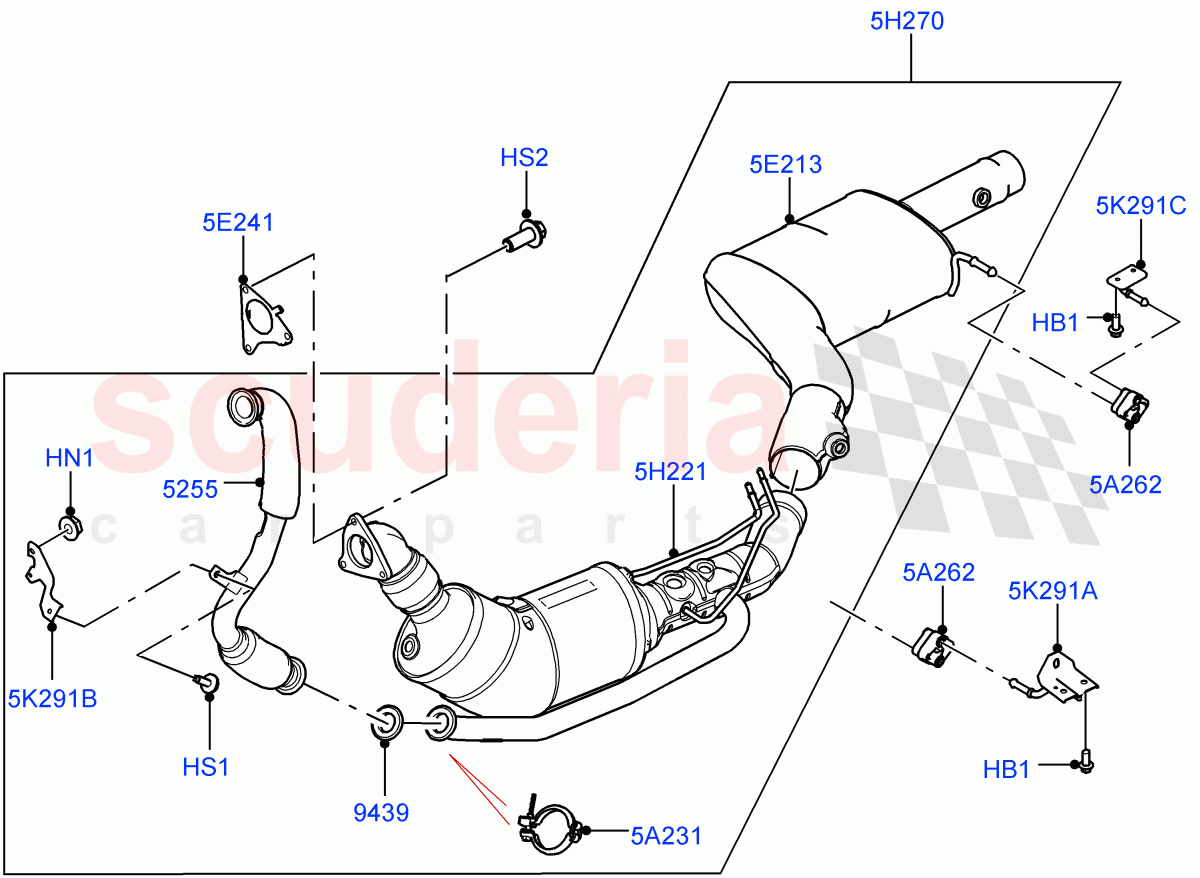

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110402	PIPE - EGR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078958	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079273	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072200	CATALYST AND PARTICLE FILTER	Enquire	To Order
	LR072199	CATALYST AND PARTICLE FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016619	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062484	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR062486	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR072195	FILTER - DIESEL PARTICLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071089	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR095075	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR071092	FILTER - DIESEL PARTICLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070298	BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: FA000001	-	5	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: FA000001	-	2	Enquire
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: FA000001	-	1	Enquire
HS2	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM / From: FA000001	-	3	Enquire
5A231	LR079273	CLAMP	LR079273 CLAMP 58MM / From: FA000001	-	1	Enquire
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER From: FA000001	-	2	Enquire
5E213	LR072200	CATALYST AND PARTICLE FILTER	LR072200 CATALYST AND PARTICLE FILTER Japan Requirements / Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix, Selective Catalytic Reduction / From: FA000001	-	1	Enquire
5E213	LR072199	CATALYST AND PARTICLE FILTER	LR072199 CATALYST AND PARTICLE FILTER LEV 160 / Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix, Selective Catalytic Reduction / From: FA000001	-	1	Enquire
5E241	LR016619	GASKET - EXHAUST PIPE	LR016619 GASKET - EXHAUST PIPE Downpipe / From: FA000001	-	1	Enquire
5H221	LR062484	FILTER - DIESEL PARTICLE	LR062484 FILTER - DIESEL PARTICLE (+)"CDN/MEX/USA" / Downpipe, Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix / From: FA000001 / To: FA999999	-	1	Enquire
5H221	LR062486	FILTER - DIESEL PARTICLE	LR062486 FILTER - DIESEL PARTICLE (-)"CDN/MEX/USA" / Downpipe, Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix / From: FA000001 / To: FA999999	-	1	Enquire
5H221	LR072195	FILTER - DIESEL PARTICLE	LR072195 FILTER - DIESEL PARTICLE Japan Requirements / Downpipe, Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix / From: GA000001	-	1	Enquire
5H221	LR072193	FILTER - DIESEL PARTICLE	LR072193 FILTER - DIESEL PARTICLE LEV 160 / Downpipe, Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix / From: GA000001	-	1	Enquire
5H270	LR071089	FILTER - DIESEL PARTICLE	LR071089 FILTER - DIESEL PARTICLE 3.0 V6 D Gen2 Mono Turbo, LEV 160 / Order Only If Repair Can't Be Completed With Either LR072193 Or LR072199- Follow Pathfinder Guided Diagnostic / From: GA000001	-	1	Enquire
5H270	LR095075	FILTER - DIESEL PARTICLE	LR095075 FILTER - DIESEL PARTICLE Japan Requirements / From: GA292625	-	1	Enquire
5H270	LR071092	FILTER - DIESEL PARTICLE	LR071092 FILTER - DIESEL PARTICLE EU6 + DPF Emissions / From: FA000001 / To: GA292624	-	1	Enquire
5K291A	LR070298	BRACKET - EXHAUST	LR070298 BRACKET - EXHAUST From: FA000001	-	1	Enquire
5K291B	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	LR067328 BRACKET - EXHAUST BRAKE SUPPORT From: FA000001	-	1	Enquire
5K291C	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING From: FA000001	-	1	Enquire
5255	LR110402	PIPE - EGR	LR110402 PIPE - EGR EGR Outlet / From: FA000001	-	1	Enquire
9439	LR078958	GASKET	LR078958 GASKET EGR Inlet / From: FA000001	-	1	Enquire
