Front Exhaust System (3.0 V6 D Gen2 Mono Turbo, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 D Gen2 Mono Turbo, Proconve L6 Emissions, Stage V Plus DPF) ((V)...

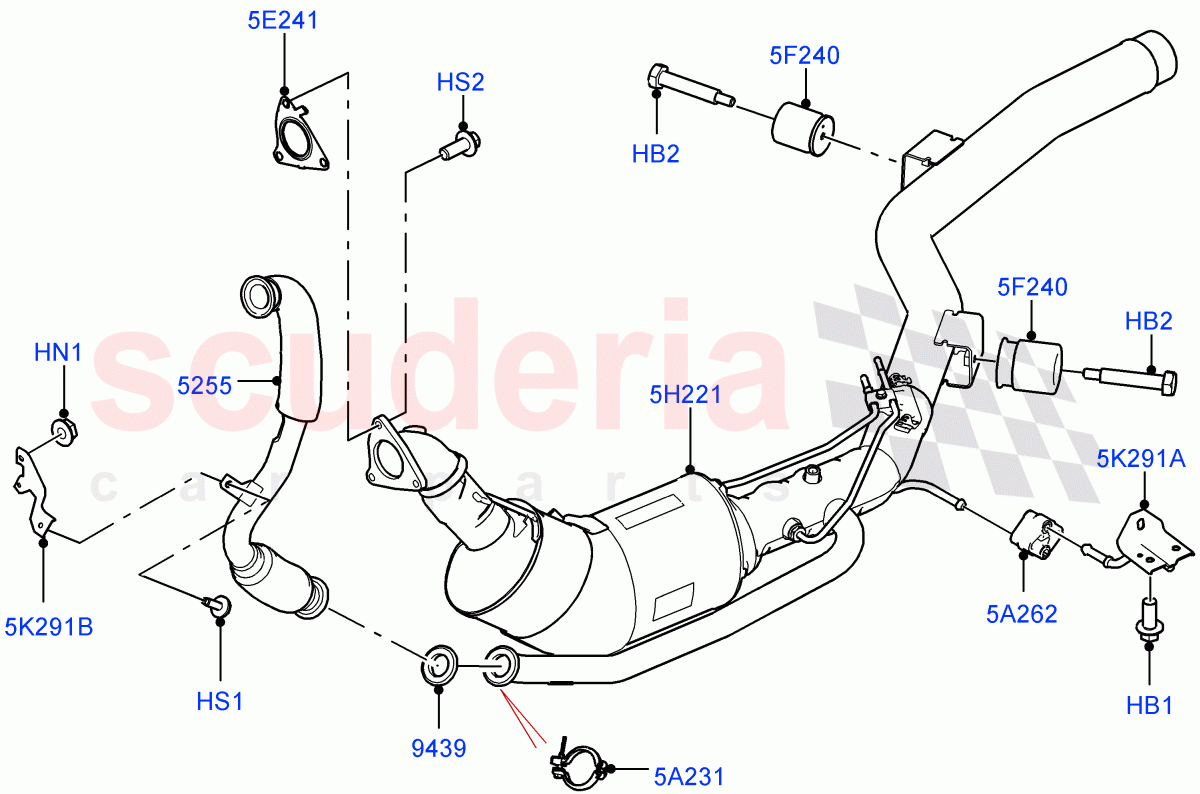

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110402	PIPE - EGR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078958	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079273	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016619	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042469	DAMPER - DAMPING MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062485	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR073695	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR073791	FILTER - DIESEL PARTICLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR070298	BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: FA000001	-	3	Enquire
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: FA000001	-	2	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: FA000001	-	2	Enquire
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: FA000001	-	1	Enquire
HS2	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM / From: FA000001	-	3	Enquire
5A231	LR079273	CLAMP	LR079273 CLAMP 58MM / From: FA000001	-	1	Enquire
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER From: FA000001	-	1	Enquire
5E241	LR016619	GASKET - EXHAUST PIPE	LR016619 GASKET - EXHAUST PIPE Downpipe / From: FA000001	-	1	Enquire
5F240	LR042469	DAMPER - DAMPING MASS	LR042469 DAMPER - DAMPING MASS Front / From: FA000001	-	2	Enquire
5H221	LR062485	FILTER - DIESEL PARTICLE	LR062485 FILTER - DIESEL PARTICLE Downpipe / From: FA000001 / To: FA233960	-	1	Enquire
5H221	LR073695	FILTER - DIESEL PARTICLE	LR073695 FILTER - DIESEL PARTICLE Downpipe / From: FA233961 / To: FA238021	-	1	Enquire
5H221	LR073791	FILTER - DIESEL PARTICLE	LR073791 FILTER - DIESEL PARTICLE Downpipe / From: FA238022 / To: GA292624	-	1	Enquire
5H221	LR077694	FILTER - DIESEL PARTICLE	LR077694 FILTER - DIESEL PARTICLE Downpipe / From: GA292625	-	1	Enquire
5K291A	LR070298	BRACKET - EXHAUST	LR070298 BRACKET - EXHAUST From: FA000001	-	1	Enquire
5K291B	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	LR067328 BRACKET - EXHAUST BRAKE SUPPORT From: FA000001	-	1	Enquire
5255	LR110402	PIPE - EGR	LR110402 PIPE - EGR EGR Outlet / From: FA000001	-	1	Enquire
9439	LR078958	GASKET	LR078958 GASKET EGR Inlet / From: FA000001	-	1	Enquire
