Name: Front Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, Japan Requirements, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Front Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, Japan Requirements, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, Japan Requirements, EU6 +...

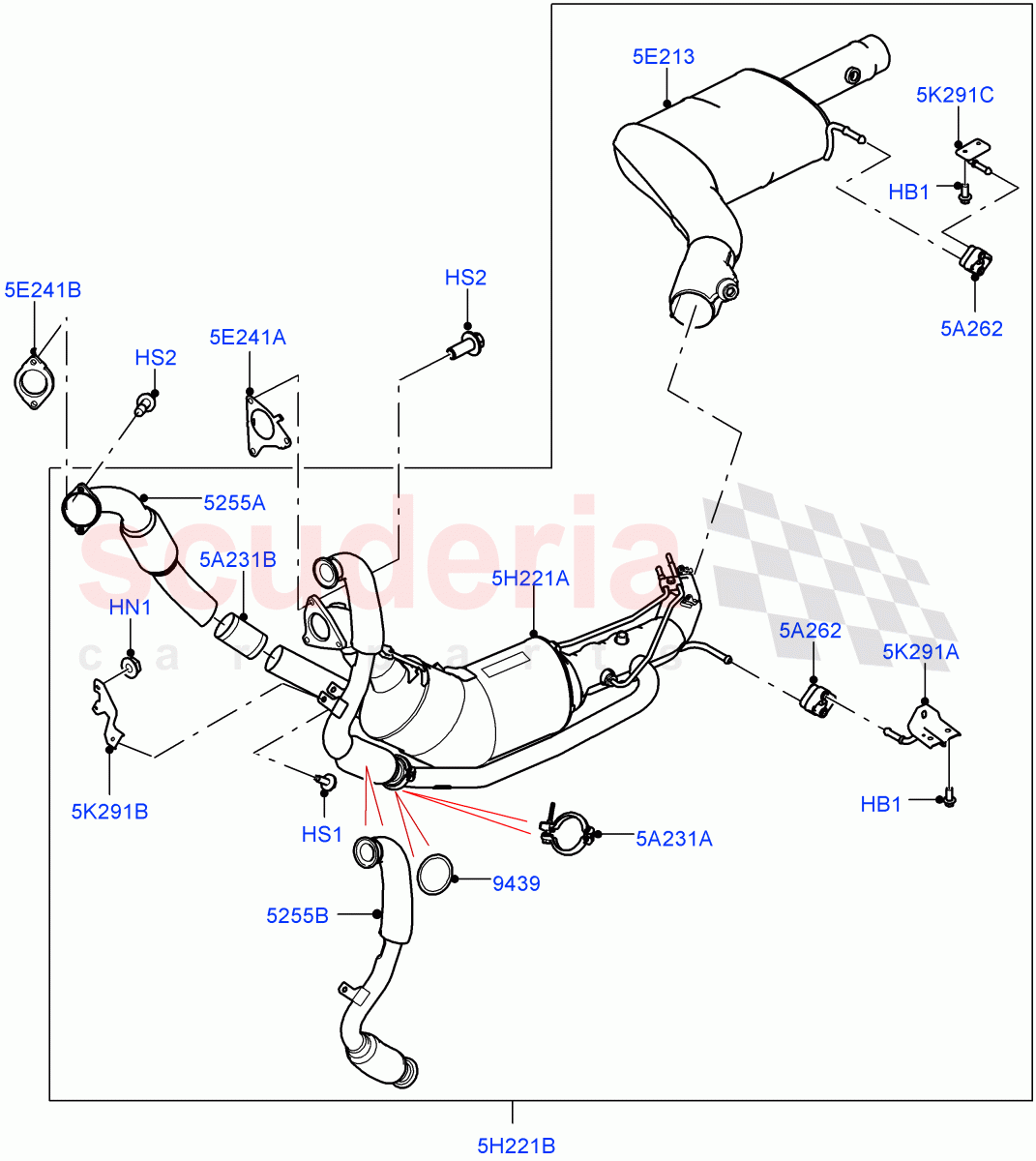

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078958	GASKET	$17.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085985	PIPE - EXHAUST	$336.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110402	PIPE - EGR	$298.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072200	CATALYST AND PARTICLE FILTER	$1,491.84	To Order
	LR123637	CATALYST AND PARTICLE FILTER	$1,487.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079273	CLAMP	$25.84	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016619	GASKET - EXHAUST PIPE	$20.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016621	GASKET - EXHAUST PIPE	$19.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113205	FILTER - DIESEL PARTICLE	$2,846.20	To Order
	LR108123	FILTER - DIESEL PARTICLE	$4,055.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070298	BRACKET - EXHAUST	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	$52.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: FA000001 IN STOCK	$2.23	5
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: FA000001 IN STOCK	$1.45	2
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: FA000001	$0.96	1
HS2	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM / From: FA000001	$2.85	5
5A231A	LR079273	CLAMP	LR079273 CLAMP 58MM / From: GA000001	$25.84	1
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM / From: GA000001	$77.02	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER From: FA000001	$28.55	2
5E213	LR072200	CATALYST AND PARTICLE FILTER	LR072200 CATALYST AND PARTICLE FILTER Japan Requirements / Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix, Selective Catalytic Reduction / From: FA000001	$1,491.84	1
5E213	LR123637	CATALYST AND PARTICLE FILTER	LR123637 CATALYST AND PARTICLE FILTER EU6D Diesel + DPF Emissions / Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix, Selective Catalytic Reduction / From: KA000001	$1,487.01	1
5E241A	LR016619	GASKET - EXHAUST PIPE IN STOCK	LR016619 GASKET - EXHAUST PIPE Downpipe / From: FA000001 IN STOCK	$20.99	1
5E241B	LR016621	GASKET - EXHAUST PIPE	LR016621 GASKET - EXHAUST PIPE From: FA000001	$19.69	1
5H221A	LR072194	FILTER - DIESEL PARTICLE	LR072194 FILTER - DIESEL PARTICLE Japan Requirements / Downpipe, Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix, Supplied Without Pressure Pipes And Bracket / From: FA000001	$2,262.09	1
5H221A	LR133114	FILTER - DIESEL PARTICLE	LR133114 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / Downpipe, Please Follow The Installation Procedure In Section 309-00A Of The Workshop Manual In Topix, Supplied Without Pressure Pipes And Bracket / From: KA000001	$3,106.18	1
5H221B	LR113205	FILTER - DIESEL PARTICLE	LR113205 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / Assembly / From: KA000001	$2,846.20	1
5H221B	LR108123	FILTER - DIESEL PARTICLE	LR108123 FILTER - DIESEL PARTICLE EU6 + DPF Emissions / Assembly / From: GA000001	$4,055.89	1
5K291A	LR070298	BRACKET - EXHAUST	LR070298 BRACKET - EXHAUST From: FA000001	$31.63	1
5K291B	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	LR067328 BRACKET - EXHAUST BRAKE SUPPORT From: FA000001	$52.99	1
5K291C	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING From: FA000001	$30.11	1
5255A	LR085985	PIPE - EXHAUST	LR085985 PIPE - EXHAUST RH Side / From: FA000001	$336.03	1
5255B	LR110402	PIPE - EGR	LR110402 PIPE - EGR EGR Outlet / From: FA000001	$298.05	1
9439	LR078958	GASKET	LR078958 GASKET EGR Inlet / From: FA000001	$17.79	1
